Replaceable head drill PXD-5D 5xD 14mm

Replaceable head drill PXD-5D 5xD 14mm
Replaceable head drill PXD-5D 5xD 14mm Replaceable head drill PXD-5D 5xD 14mm Replaceable head drill PXD-5D 5xD 14mm
Price:
322,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

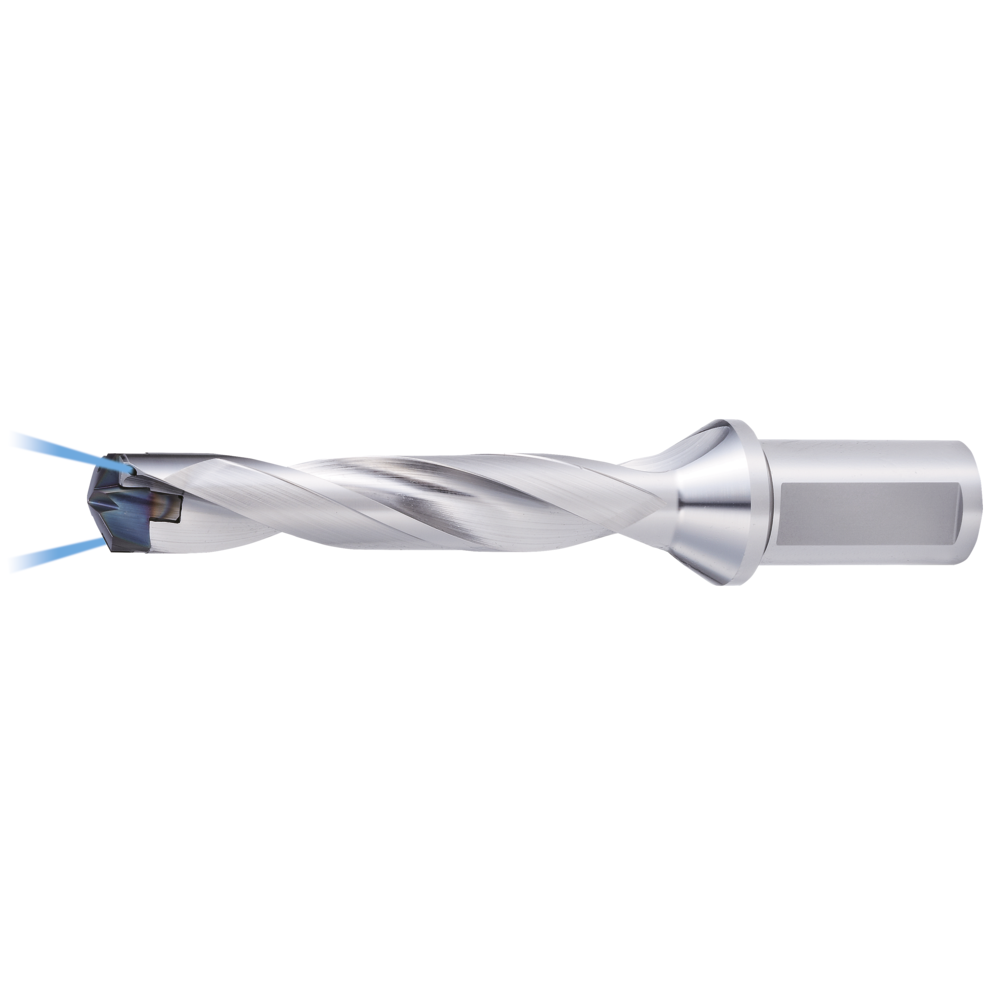

Replaceable head drill PXD
  • Drilling in diameter range 14 - 25.4mm
  • special cutting geometry for larger diameters
  • internal coolant supply
  • bayonet system for safe and fast boring head change
  • high bore surface quality and precision
  • polished chip chambers for low-vibration and reliable chip removal
  • Supplied with chuck key

PXD-5D
Replaceable head drill PXD
  • Drilling in diameter range 14 - 25.4mm
  • special cutting geometry for larger diameters
  • internal coolant supply
  • bayonet system for safe and fast boring head change
  • high bore surface quality and precision
  • polished chip chambers for low-vibration and reliable chip removal
  • Supplied with chuck key

PXD-5D
Article no./ATORN no.
1253050140
Vendor Article no.
48173014
Packaging unit
1
Catalogue page
KS-0186
Cutting values
SW-0382

Technical characteristics

Coolant design Internal axial
Coolant supply Intern axial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
D 14 - 14,49 mm
D 14 - 14,49 mm
D1 16 mm
D1 16 mm
Drilling depth 5xD
L 145,9 mm
L1 71,2 mm
L1 71,2 mm
L2 92,9 mm
L2 92,9 mm
L3 97,9 mm
L3 97,9 mm
L4 48 mm
L4 48 mm
Max. drilling depth (D) 5xD
Shank Straight with driving plane
Tool holding device Zylinderschaft HB
Catalogue page Download
Cutting values Download
Catalogue page Download
Cutting values Download
