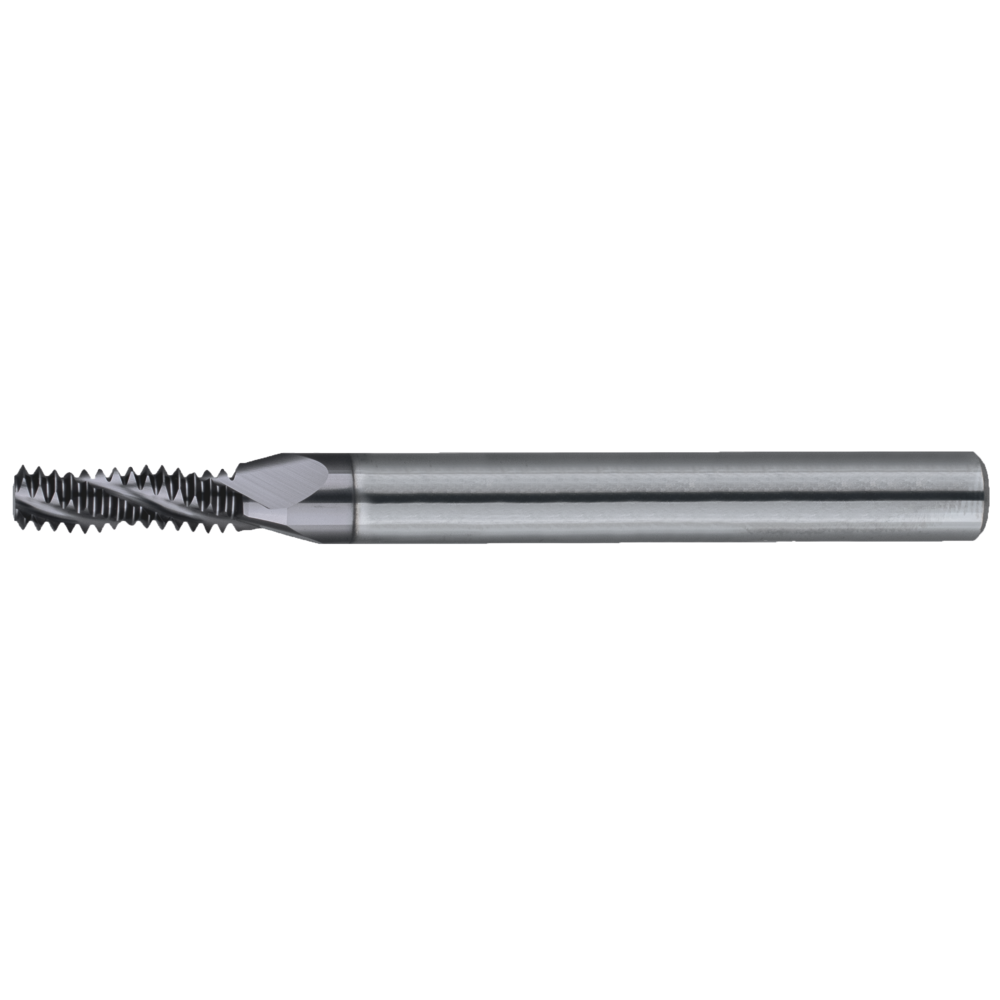

Thread cutter SC ISO M4x0.7; L2=9.0mm; Z3 TiAlN

Thread cutter SC ISO M4x0.7; L2=9.0mm; Z3 TiAlN
Thread cutter SC ISO M4x0.7; L2=9.0mm; Z3 TiAlN Thread cutter SC ISO M4x0.7; L2=9.0mm; Z3 TiAlN
Price:
133,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Thread end milling cutter
  • the thread is machined in only one process step
  • chip flutes permit soft cutting
  • short machining times due to multiple (3-6) cutting edges
  • operating range from dimension D = 2.2mm
  • thread cutting in blind holes possible up to the shoulder
  • one tool for right-handed and left-handed threads
  • one tool for the material groups P, M, K, S, H
  • excellent surface quality
  • long service life thanks to special multi-layer coating
  • low cutting pressure permits the machining of thin-walled workpieces

Metric, ISO full profile, internal
Article no./ATORN no.
2580270010
Packaging unit
1
Catalogue page
KS-0594
Cutting values
SW-0798

Technical characteristics

Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,10 mm
D1 6 mm
Designation VHTM 3 M040 064 06 40
Feed for side milling fz steel < 1000 mm² 0,03 mm/tooth
L 64 mm
L1 9,0 mm
Pitch 0,70 mm
Standard thread M4
Tool holding device HA parallel shank
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
