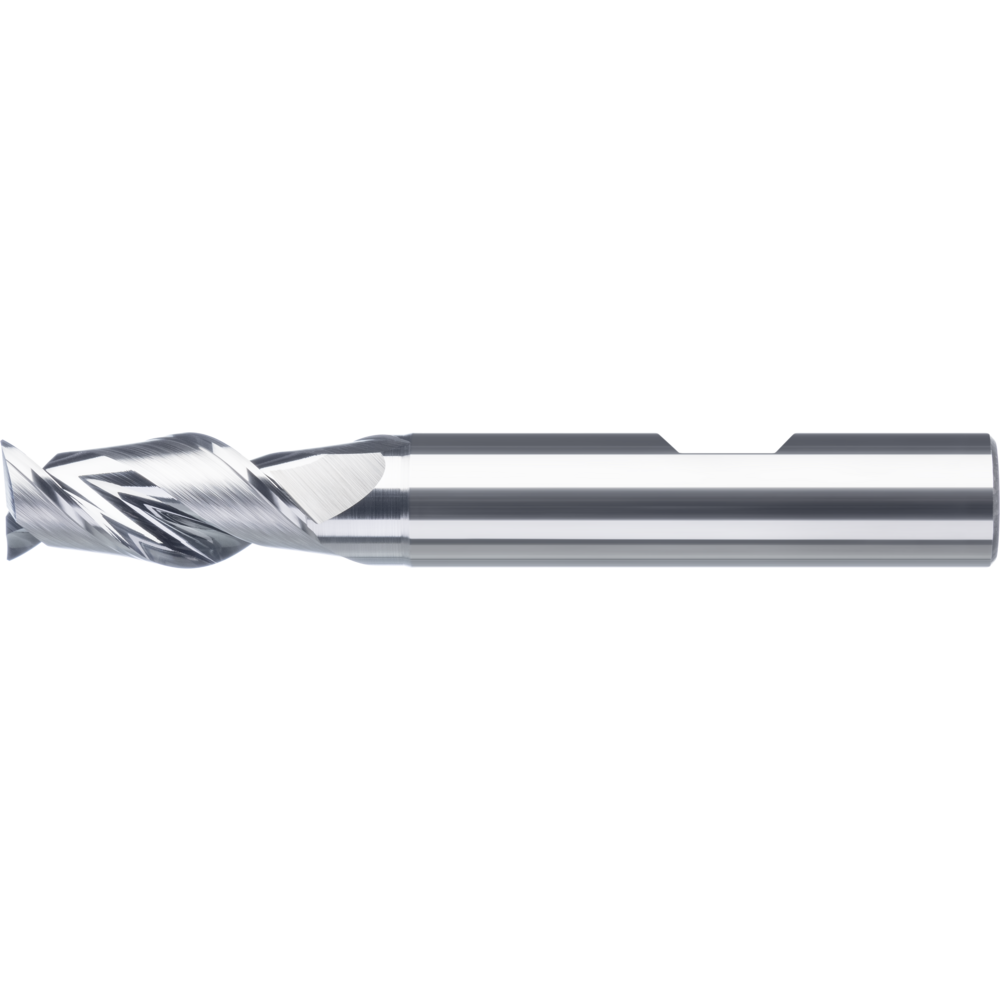

Alu. longitud. slot cutter SC 45° 3mm L2=18mm Z=2 HB, ed. chamfer, pol. MF

Alu. longitud. slot cutter SC 45° 3mm L2=18mm Z=2 HB, ed. chamfer, pol. MF
Alu. longitud. slot cutter SC 45° 3mm L2=18mm Z=2 HB, ed. chamfer, pol. MF
Price:
39,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Ultra-N slot drill
  • With clearance
  • 2 cutting edges, with edge chamfer F
  • With defined cutting edge rounding
  • Polished version, sharp-edged, ground
  • For non-ferrous materials
  • Cutting material: superfine grain solid carbide, uncoated with mirror finish / polished version
  • Cutting material: superfine grain solid carbide, ZrCN Ultra-N coated

Standard with driving plane
Article no./ATORN no.
2492070030 / 11263925
Packaging unit
1
Catalogue page
KS-0458
Cutting values
SW-0759

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,9 mm
Design Straight shank HB polished
Durchmesser max. 20 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-20 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz aluminium < 8 % Si 0,045 mm/tooth
fitness hartl total 3
Freistellungslänge 18 mm
fz ALU 0,013 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 3
Kantenschutzfasenlänge 0,1 mm
Kantenschutzfasenwinkel 45 °
L 57 mm
L1 8 mm
L2 18 mm
Spanwinkel 20 °
Toleranz Schaftdurchmesser h5
Toleranz Schneidendurchmesser h9
Tool holding device HB parallel shank
Twist angle 45°
Type W
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
