Cutting insert NV10.030D.02 for groove DIN6885 D9 3x1.8mm (holder NHV.10)

Cutting insert NV10.030D.02 for groove DIN6885 D9 3x1.8mm (holder NHV.10)
Cutting insert NV10.030D.02 for groove DIN6885 D9 3x1.8mm (holder NHV.10)
Price:
45,30 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Cutting inserts for keyway slotting
  • Keyway slotting of longitudinal grooves in accordance with DIN 138 and DIN 6885
  • Tolerance class C11/JS9/P9
  • Type NPU, bore Ø from 6 mm
  • Type NP10, bore Ø from 10 mm
  • Type NPV, bore Ø from 22 mm
  • Cutting material: AL41F, TiAlN-coated

Type NPV standard DIN 6885 tolerance D9
Article no./ATORN no.
3090080030
Vendor Article no.
NV10.030D.02/AL41F
Packaging unit
1
Catalogue page
KS-1050
Cutting values
SW-1106

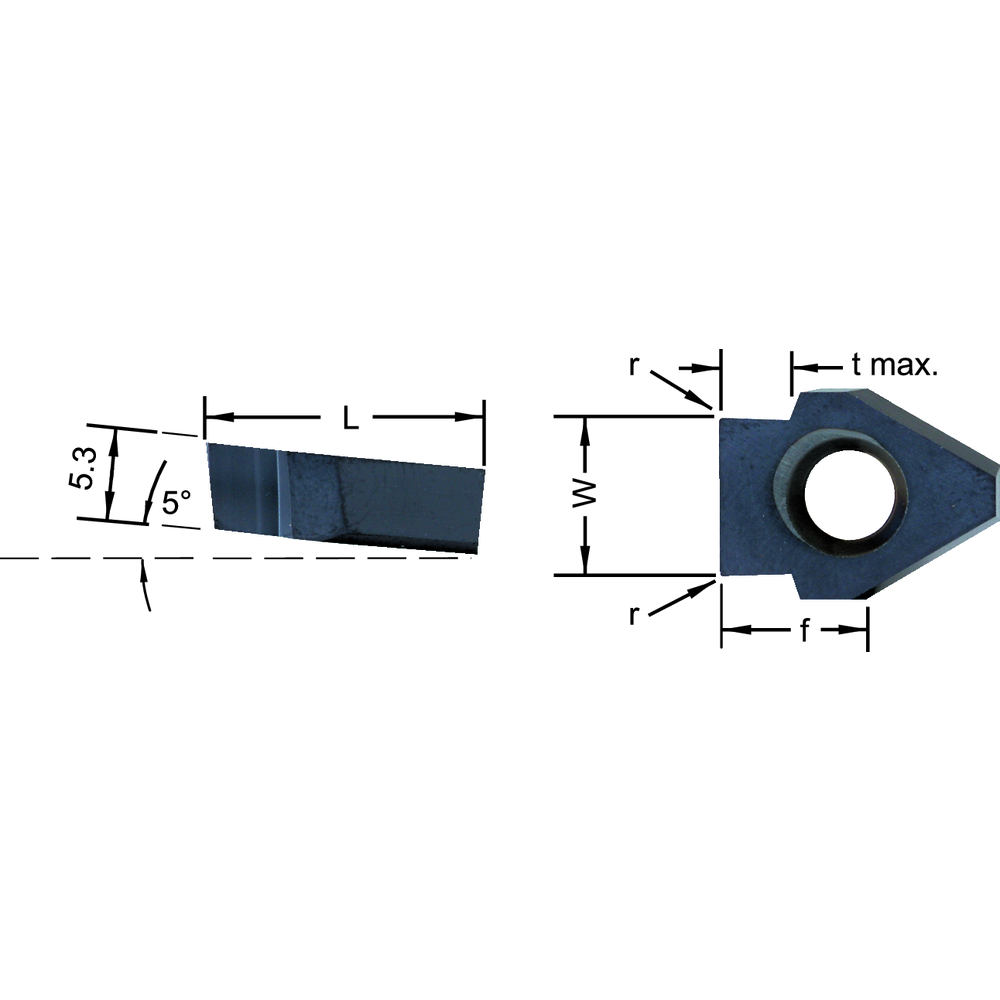

Technical characteristics

Cutting data Cutting angle Information - yes
D min. 10 mm
D min. NHV10
Designation NV10.030D.02
L 8,2 mm
Nominal dimension 3,05 mm
R 0,2 mm
t max. 1,8 mm
Tolerance class D9
W 3 mm
