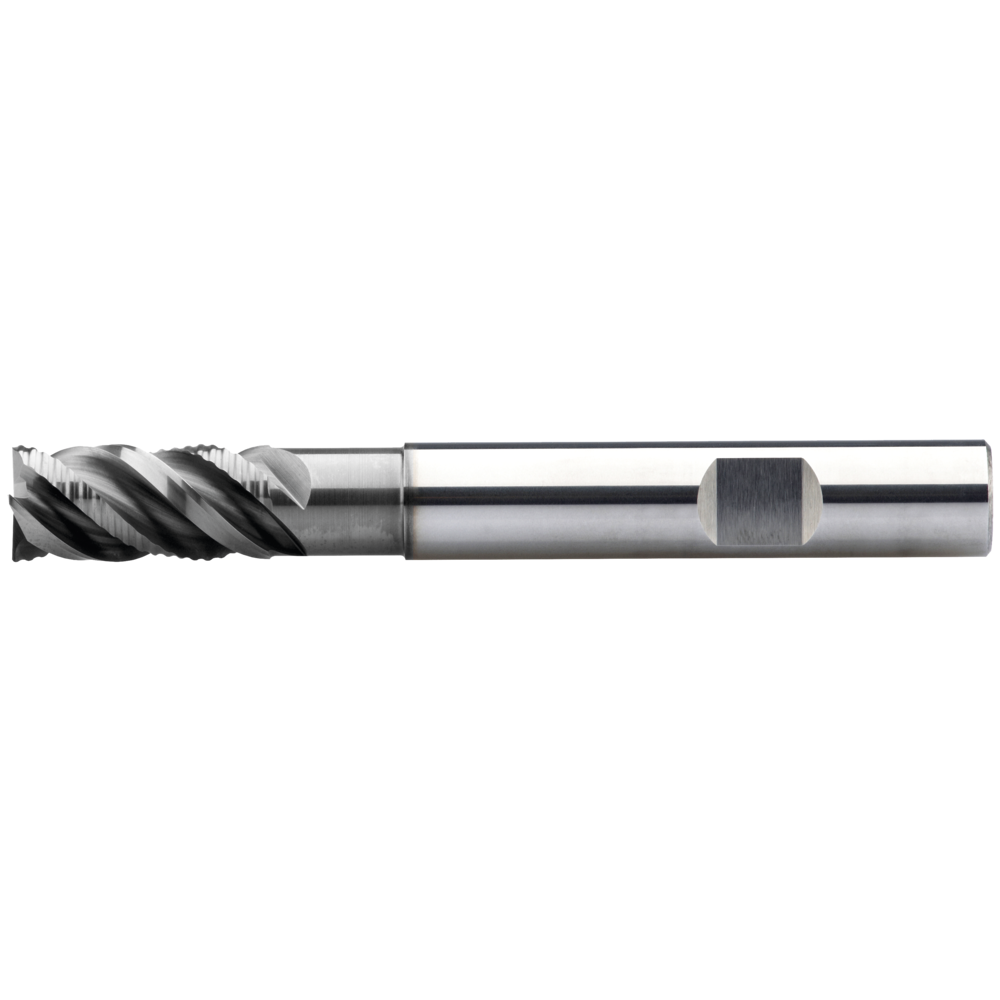

Roughing/finishing milling cutter SC 45° 6mm, Z=4 shank HA, NiTiCo

Roughing/finishing milling cutter SC 45° 6mm, Z=4 shank HA, NiTiCo
Roughing/finishing milling cutter SC 45° 6mm, Z=4 shank HA, NiTiCo Roughing/finishing milling cutter SC 45° 6mm, Z=4 shank HA, NiTiCo Roughing/finishing milling cutter SC 45° 6mm, Z=4 shank HA, NiTiCo
Price:
83,30 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Roughing / finishing cutter
  • Unequal pitch for low-vibration milling
  • two roughing cutters Type NF and two smoothing cutters Type N
  • smooth surface

Article no./ATORN no.
2540300060 / 11869340
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating AlCrN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
D3 5,5 mm
Feed for grooving fz steel < 1000 mm² 0,052 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,057 mm/tooth
L 62 mm
L1 14 mm
L2 20 mm
Tool holding device HB parallel shank
Twist angle 45°
Type NR
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
