Clamp mounting 609.0012.1 Carbide 12x22 mm cutting insert R/LS09 IC

Clamp mounting 609.0012.1 Carbide 12x22 mm cutting insert R/LS09 IC
Clamp mounting 609.0012.1 Carbide 12x22 mm cutting insert R/LS09 IC
Price:
205,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Tool holder MINI-CUT
  • With internal cooling
  • For recess turning, internal turning and thread cutting (internal) from Ø 7.8 mm
  • Spare clamping screws available on request
  • FLEXO tool holder, variable clamping range from ... to ... mm (see table Clamping Length = "L4"
  • FLEXO tool holder for HM cutting inserts R/LS 08 and R/LS 11
  • Suitable FLEXO steel tool holder

Carbide tool holder 609…
Article no./ATORN no.
3050050001
Vendor Article no.
609.0012.1HM
Packaging unit
1
Catalogue page
KS-1021

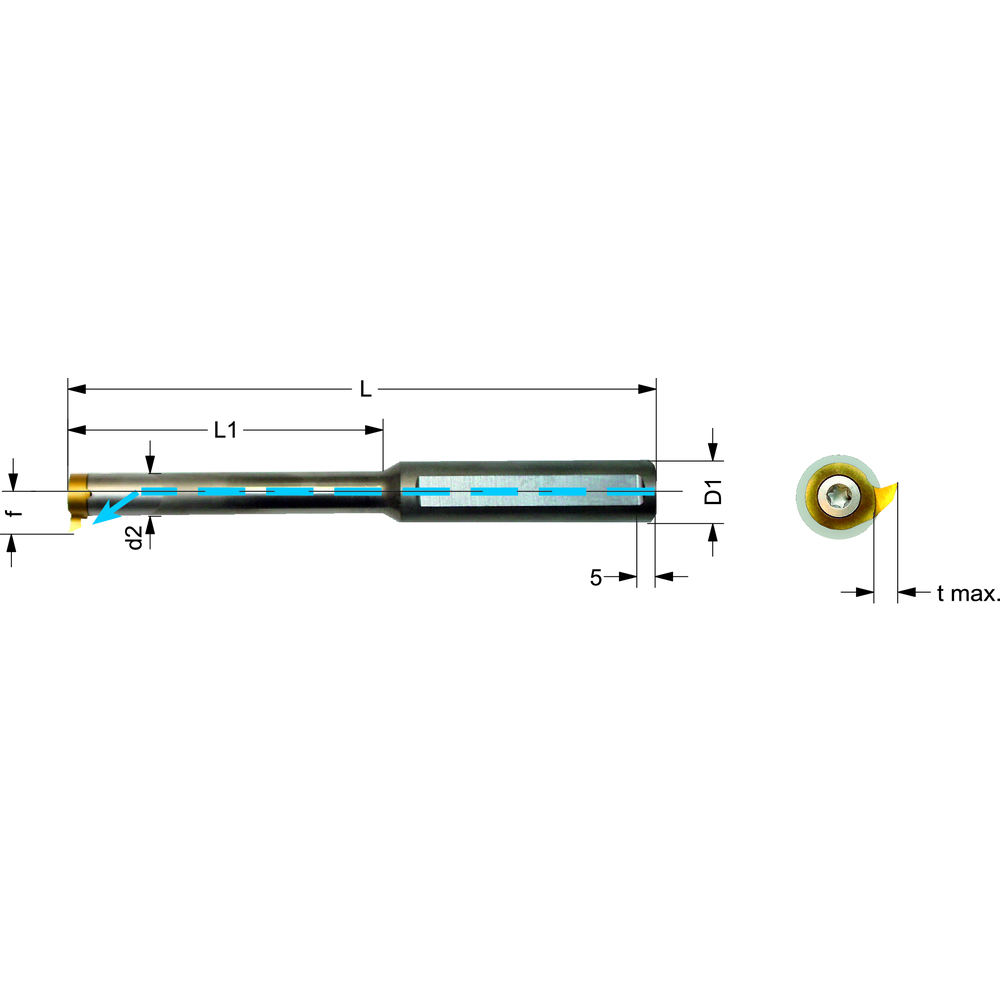

Technical characteristics

Coolant design Internal axial
D min. 9,0 mm
D1 12 mm
D2 6,6 x 7,4 mm
Designation 609.0012.1HM
F 5,5 mm
F R/LS09
L 90 mm
L1 22 mm
Shank Straight with driving plane
t max. 1,8 mm
