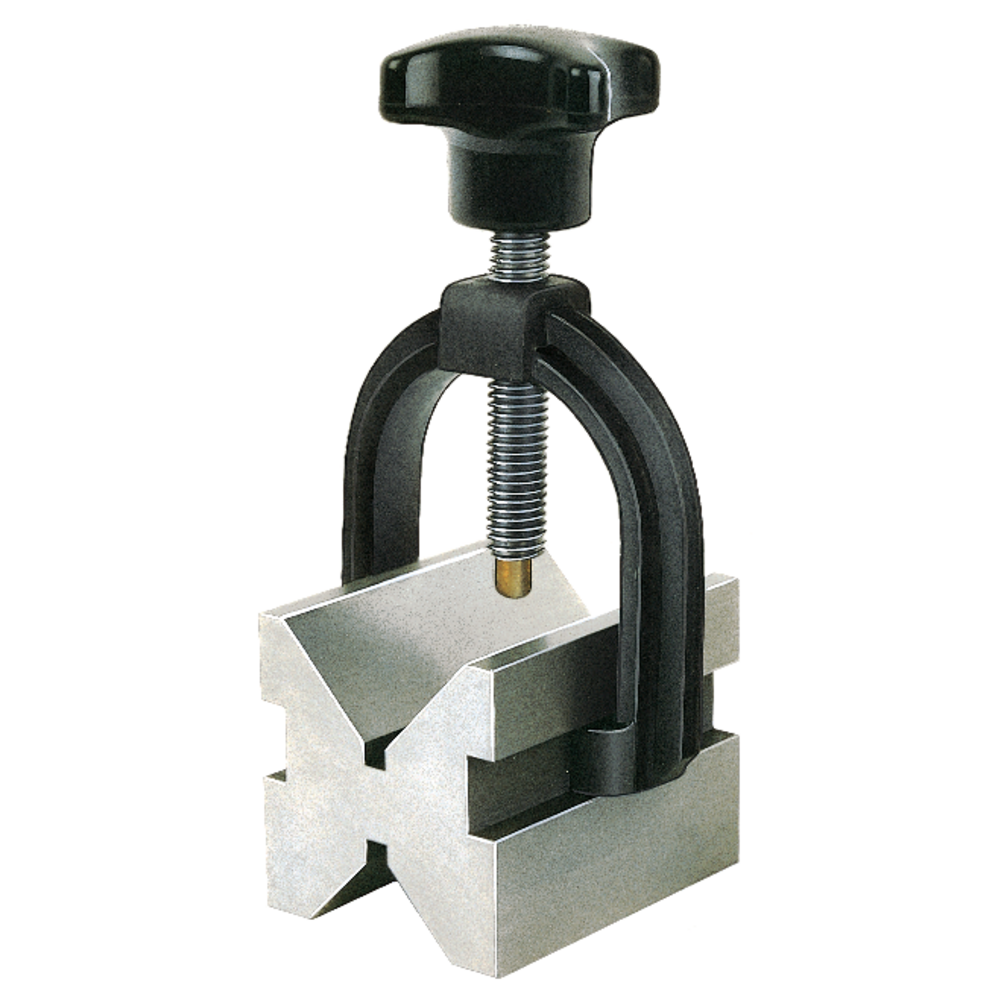

Single V-block with frame LxWxH=50x40x40 mm, for workpiece 5-30 mm

Single V-block with frame LxWxH=50x40x40 mm, for workpiece 5-30 mm
Single V-block with frame LxWxH=50x40x40 mm, for workpiece 5-30 mm
Price:
96,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Double V-block pair
  • Indent 90° with clamp
  • Hardened
  • V-block and clamping surfaces level, machined in parallel, finely ground and adjusted
  • V-block accuracy: 0.004 mm to the base surface
  • Stainless steel version available on request

Individual parts
Article no./ATORN no.
5560080031 / 30054307
Packaging unit
1
Catalogue page
KS-1475

Technical characteristics

Breite 40 mm
Designation V-block, Ø 5-30, individual with clamp
Ebenheitstoleranz 0,004 mm
Höhe 40 mm
Länge 50 mm
Länge x Breite x Höhe 50 x 40 x 40 mm
Werkstückdurchmesser max. 30 mm
Werkstückdurchmesser min. 5 mm
Werkstückdurchmesser min./max. 5-30 mm
Winkel 90 °
