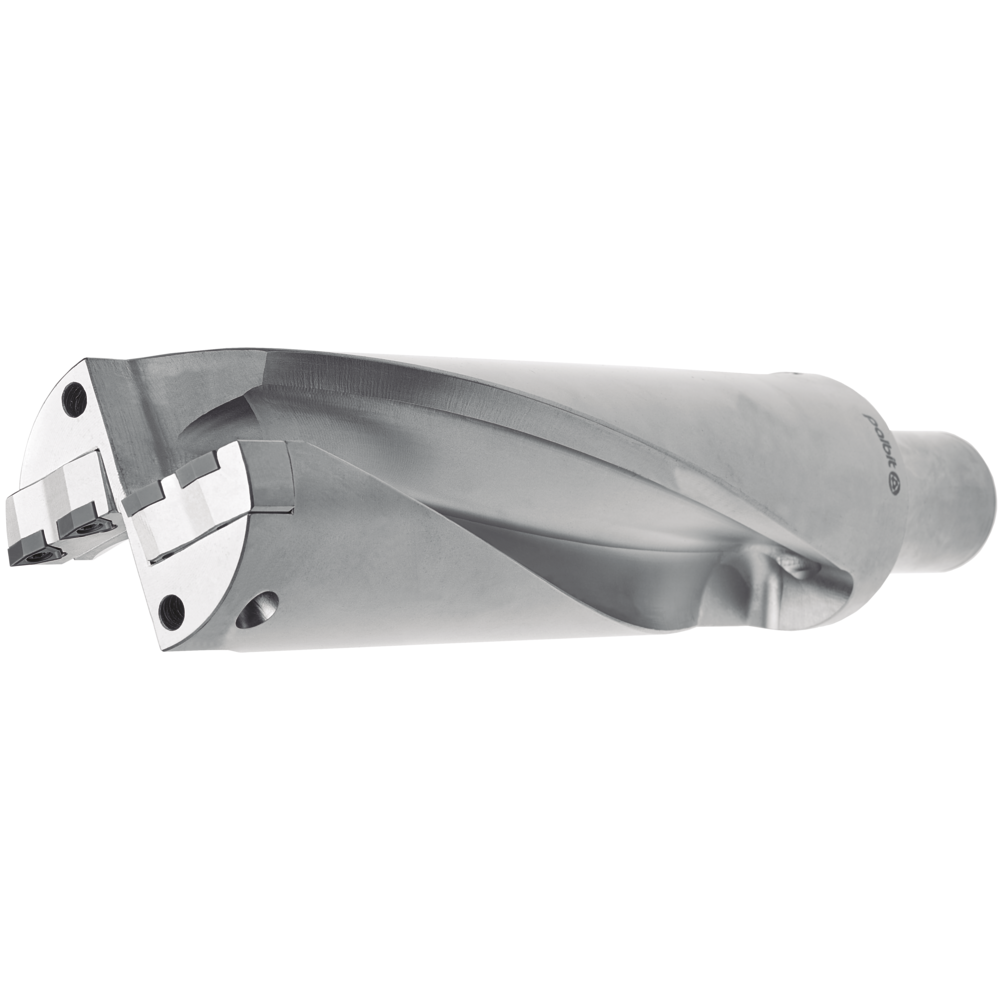

Indexable insert drill bit TDC 596540-3D 65-59 mm (WCKX 06T308)

Indexable insert drill bit TDC 596540-3D 65-59 mm (WCKX 06T308)
Indexable insert drill bit TDC 596540-3D 65-59 mm (WCKX 06T308) Indexable insert drill bit TDC 596540-3D 65-59 mm (WCKX 06T308)
Price:
959,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Indexable inserts - solid drill bits with cartridge system TDC 3D
  • Surface-hardened carrier tools
  • Drilling depths up to 3xD
  • Diameter 59-80 mm
  • Soft cutting for lower power requirement
  • Wide range of applications in structural steel and stainless steels
  • Good chip control and reduced cutting forces
  • With internal coolant supply
  • Suitable indexable cutting inserts WCKX
  • Supplied with inner and outer cartridge

TDC 3D
Indexable inserts solid drill bits with cartridge system TDC 3D
  • Surface-hardened carrier tools
  • Drilling depths up to 3xD
  • Diameter 59-80 mm
  • Soft cutting for lower power requirement
  • Wide range of applications in structural steel and stainless steels
  • Good chip control and reduced cutting forces
  • With internal coolant supply
  • Suitable indexable cutting inserts WCKX
  • Supplied with inner and outer cartridge

TDC 3D
Article no./ATORN no.
1243135965
Vendor Article no.
184040900
Packaging unit
1
Catalogue page
KS-0221
Cutting values
SW-0386

Technical characteristics

Coolant design Internal axial
Coolant supply Intern axial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
D 65-59 mm
D 65-59 mm
D1 40 mm
D1 40 mm
Designation TDC 596540-3D
Designation TDC 596540-3D
Drilling depth 3xD
L 235 mm
L 235 mm
L1 195 mm
L1 195 mm
L3 70 mm
L3 70 mm
Max. drilling depth (D) 3xD
Shank Straight with driving plane
suitable cartridge TDC 059065
suitable indexable inserts WCKX 06T308
suitable indexable inserts WCKX 06T308
Tool holding device Zylinderschaft HB
