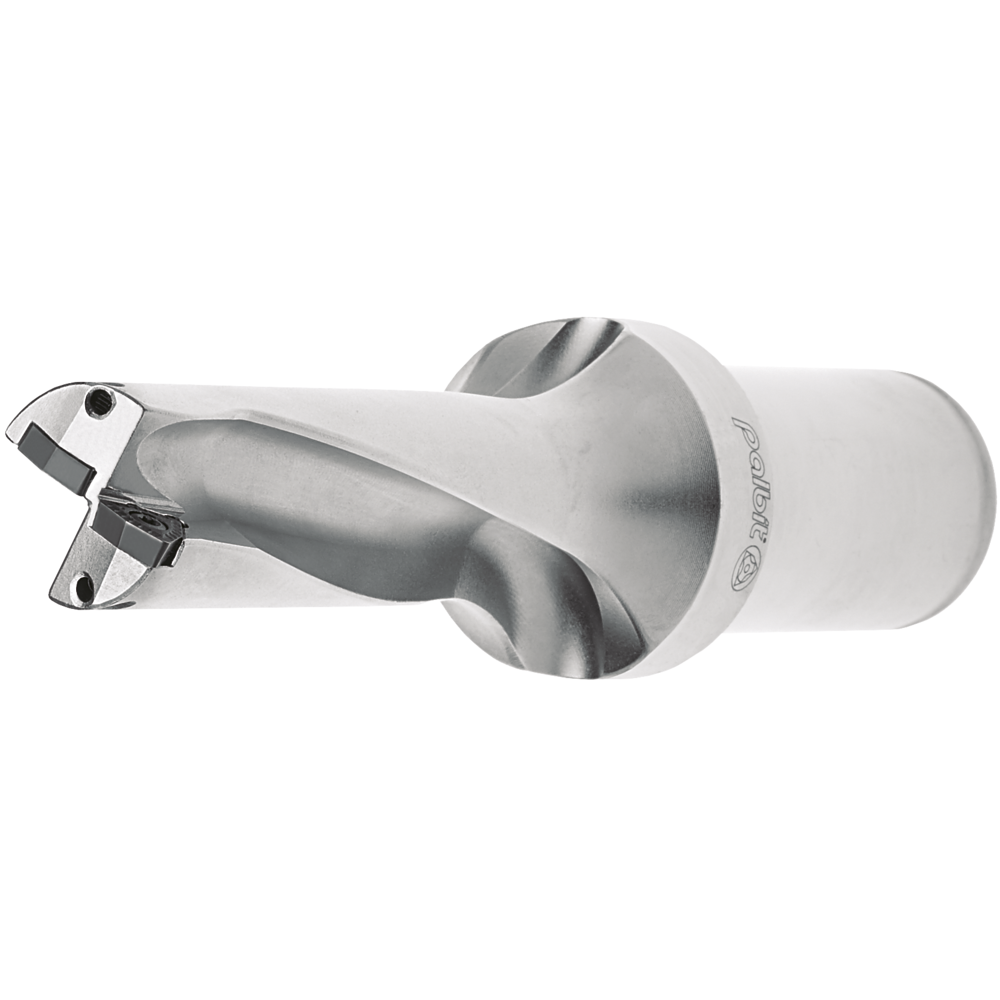

Indexable inserts - solid drill bits TDS 3D

• Surface-hardened carrier tools
• Drilling depths up to 3xD
• Diameter 13-58 mm
• Soft cutting for lower power requirement
• Optimised chip space geometry and cutting edge positions for stable drilling
• Wide range of applications in structural steel and stainless steels
• Good chip control and reduced cutting forces
• With internal coolant supply
• Bore tolerances:
  Ø 13-21.5 mm > -0.1/+0.15 mm; Ø 22-50 mm > -0.12/+0.2 mm; Ø 50-58 mm > -0.15/+0.25 mm
• Suitable indexable cutting inserts WCKX

Indexable inserts solid drill bits TDS 3D

• Surface-hardened carrier tools
• Drilling depths up to 3xD
• Diameter 13-58 mm
• Soft cutting for lower power requirement
• Optimised chip space geometry and cutting edge positions for stable drilling
• Wide range of applications in structural steel and stainless steels
• Good chip control and reduced cutting forces
• With internal coolant supply
• Bore tolerances:
  Ø 13-21.5 mm > -0.1/+0.15 mm, Ø 22-50 mm > -0.12/+0.2 mm, Ø 50-58 mm > -0.15/+0.25 mm
• Suitable indexable cutting inserts WCKX
