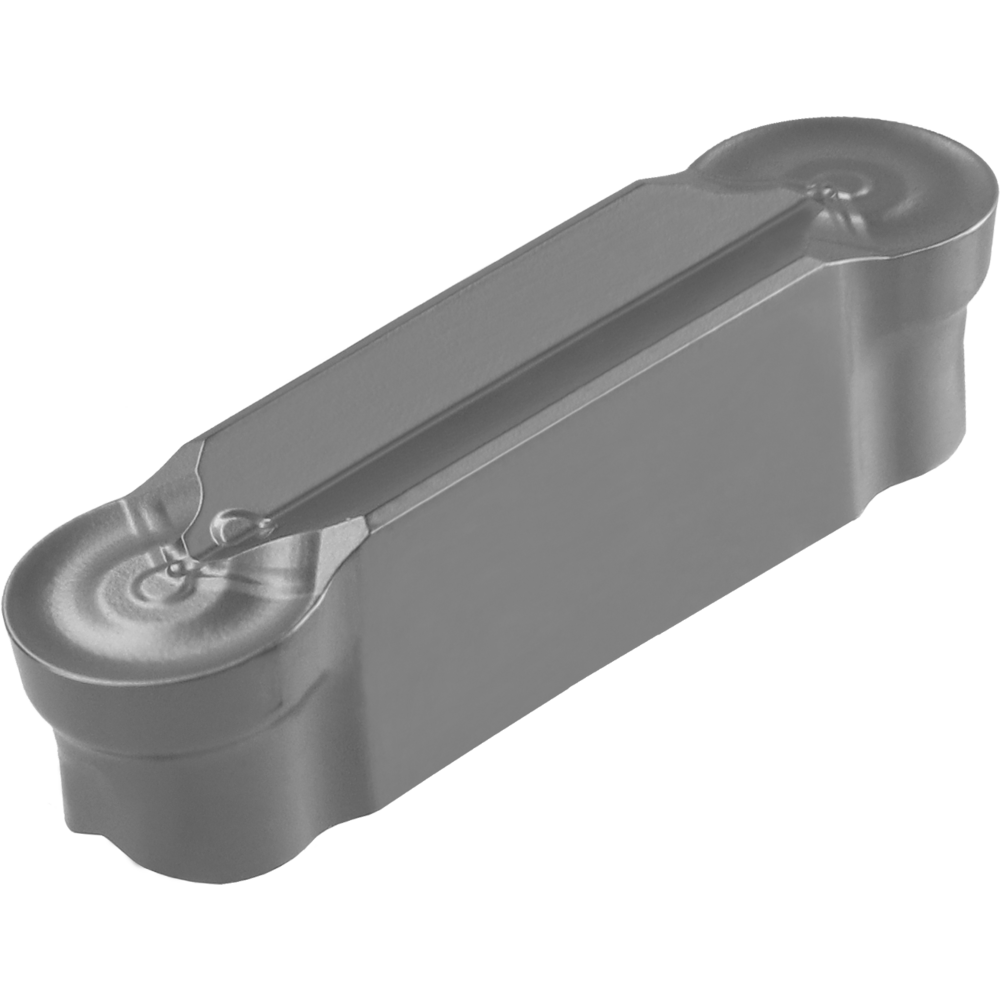

Index. recessing insert AD 2.00-1.0 R ACP20G (double-sided, radial, full radius)

Index. recessing insert AD 2.00-1.0 R ACP20G (double-sided, radial, full radius)
Index. recessing insert AD 2.00-1.0 R ACP20G (double-sided, radial, full radius)
Price:
23,20 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Recessing inserts AD Radius GROOVE
  • The feed rates must be adjusted to the respective cutting edge width
  • Cutting edge accuracy W ± 0.02mm
  • AD = double-edged cutting insert max. 24 mm punching depth

Chip breaker R - round
  • For longitudinal turning and grooving
  • Chip breaker for recess turning and ramping
  • Rotating chip breaker for optimal chip control
  • For all steel and stainless steel materials

Article no./ATORN no.
3880252035 / 12370349
Packaging unit
10
Catalogue page
KS-0992

Technical characteristics

F max. 0,25 mm/rev
F min. 0,08 mm/rev
ISO designation AD 2.00-1.0 R
ISO H 3
ISO K 1
ISO M 2
ISO N 3
ISO P 1
ISO S 3
Quality ACP20G
R 1 mm
t max. 24 mm
Toleranz Einstechbreite ± 0,02 mm
Vc in Edelstahl max. 180 m/min
Vc in Edelstahl min. 50 m/min
Vc in Guss max. 200 m/min
Vc in Guss min. 80 m/min
Vc in Stahl max. 240 m/min
Vc in Stahl min. 50 m/min
W 2 mm
