High feed-rate shell-type milling cutter 35 mm Z5

High feed-rate shell-type milling cutter 35 mm Z5
High feed-rate shell-type milling cutter 35 mm Z5 High feed-rate shell-type milling cutter 35 mm Z5
Special offer:
168,00 €
(420,00 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 4 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

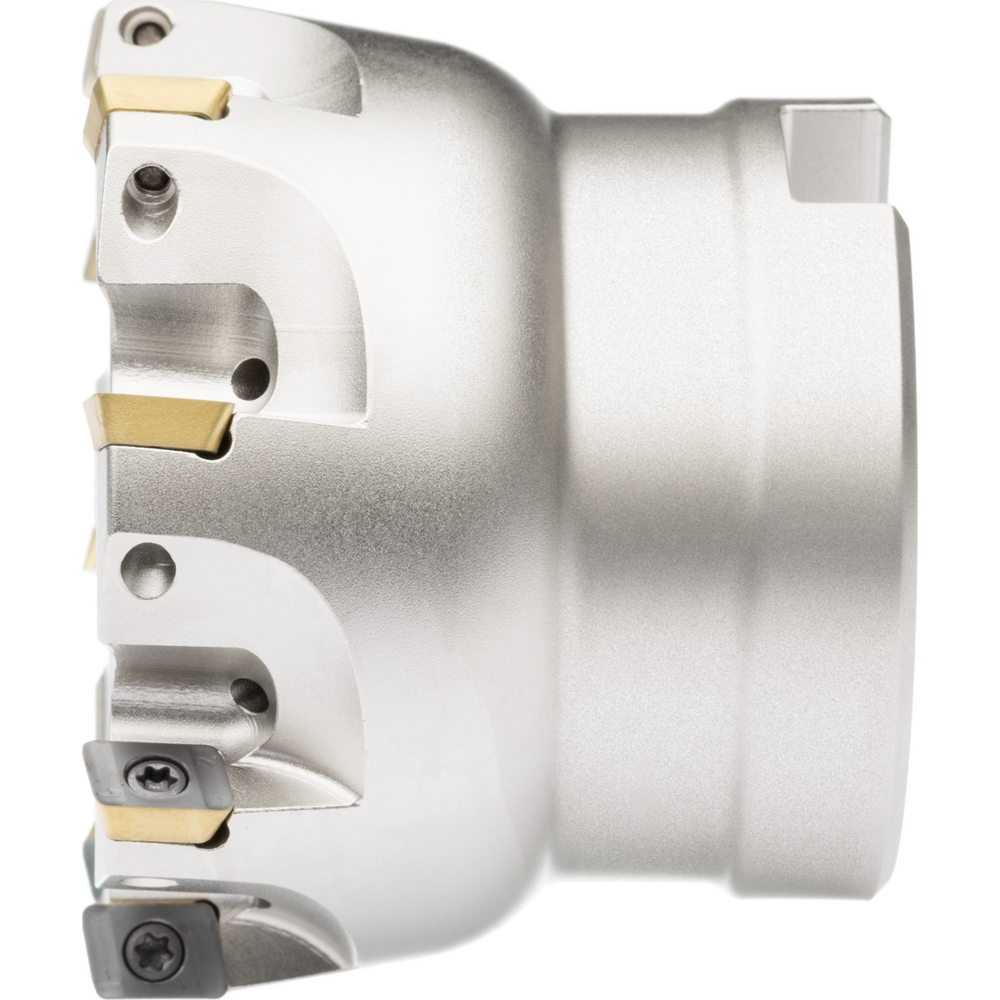

High feed-rate shell-type milling cutter XDM.
  • For milling inserts XDM.. 09
  • 2-edged, small, extremely robust indexable insert
  • Positive geometry for easy cutting
  • High material removal rate, even with less powerful machining centres
  • Long service life thanks to nickel-plated design
  • High feed rates achievable
  • Uniform size of indexable cutting inserts

Article no./ATORN no.
2860025035 / 10617447
Packaging unit
1
Catalogue page
KS-0669
Cutting values
SW-0812

Technical characteristics

ap max. 1 mm
Application Face milling
Bore hole Ø 16 mm
Coolant supply Internal
Cutting data Cutting angle Information - yes
D 35 mm
D min. 26 mm
Geeignet für Wendeschneidplatten XDM. 0903..
L 40 mm
Max. tightening torque 1,2 N·m
Oberfläche NI
Radius, theoretical 1,3 mm
Schneidendurchmesser max. 35 mm
Schneidendurchmesser min./max. 26-35 mm
Tip diameter 32 mm
Tool holding device Location bore
Werkstoff ST
Z 5 pc.
Catalogue page Download
Cutting values Download
ASSET_MatSafetyDataSheet Download
