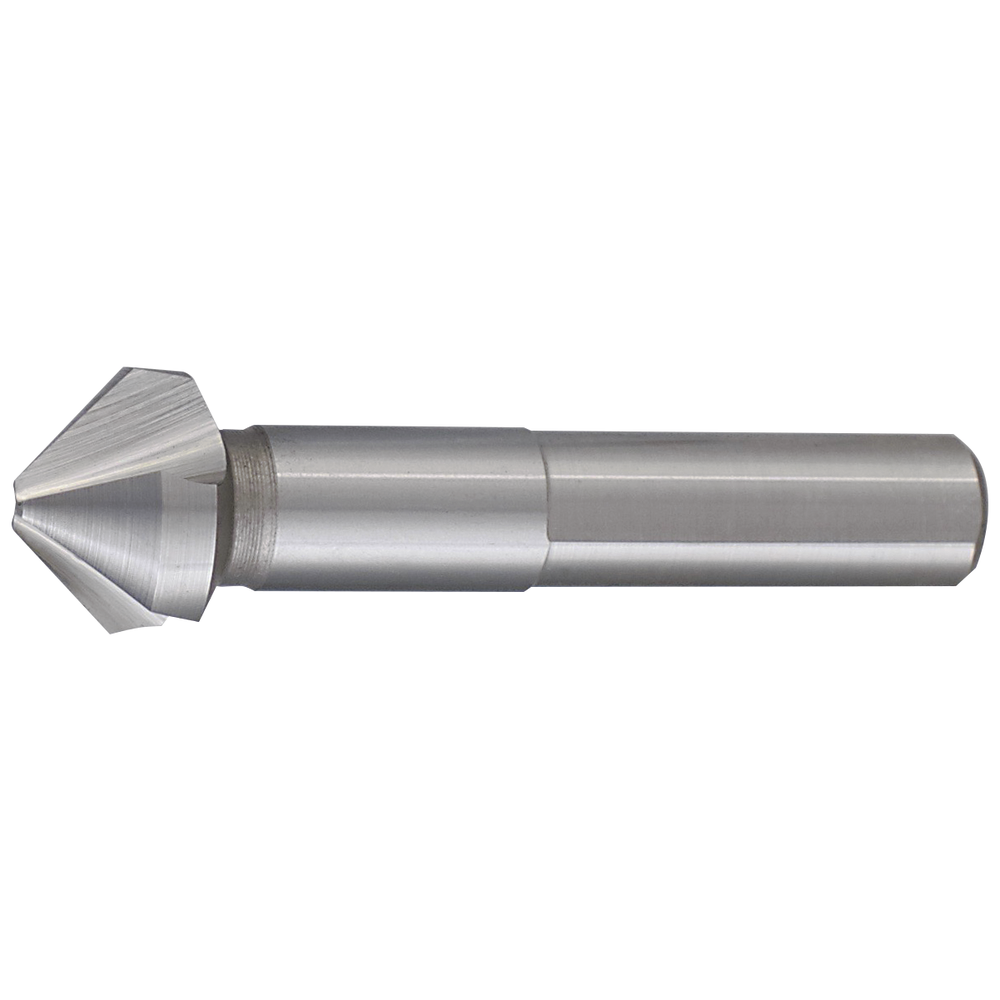

Countersink HSS 90° 6.3 mm fine pitch

Countersink HSS 90° 6.3 mm fine pitch
Countersink HSS 90° 6.3 mm fine pitch Countersink HSS 90° 6.3 mm fine pitch Countersink HSS 90° 6.3 mm fine pitch Countersink HSS 90° 6.3 mm fine pitch
Price:
21,30 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Patented shank and irregular pitch

ADVANCED taper and deburring countersinks
  • 3 cutting edges
  • HSS and HSS TiN cutting material
  • New cutting edge geometry prevents uneven wear of the cutting edges
  • High degree of wear resistance and hot hardness for maximum service life
  • High true running accuracy with considerably reduced force application
  • Patented shank to stop rotation of the countersink in the drill chuck with optimum torque transfer (from Ø 8.3 mm)

Single
Patented shank and irregular pitch

ADVANCED taper and deburring countersinks
  • 3 cutting edges
  • HSS and HSS TiN cutting material
  • New cutting edge geometry prevents uneven wear of the cutting edges
  • High degree of wear resistance and hot hardness for maximum service life
  • High true running accuracy with considerably reduced force application
  • Patented shank to stop rotation of the countersink in the drill chuck with optimum torque transfer (from Ø 8.3 mm)

Single
Article no./ATORN no.
1502700063
Packaging unit
1
Catalogue page
KS-0311
Cutting values
SW-0403

Technical characteristics

Angle of the tip - S 90 °
Angle of the tip - S 90 °
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSS
Cutting material HSS
D 6,3 mm
D 6,3 mm
D1 5 mm
D1 5 mm
DIN 335C
DIN 335C
Feed f steel < 1000 N/mm² 0,08 mm/rev
Feed f steel < 1000 N/mm² 0,08 mm/rev
L 45 mm
L 45 mm
Tip diameter 1,5 mm
Tip diameter 1,5 mm
Tool holding device Parallel shank with three tightening surfaces
Tool holding device Parallel shank with three tightening surfaces

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
brass short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
