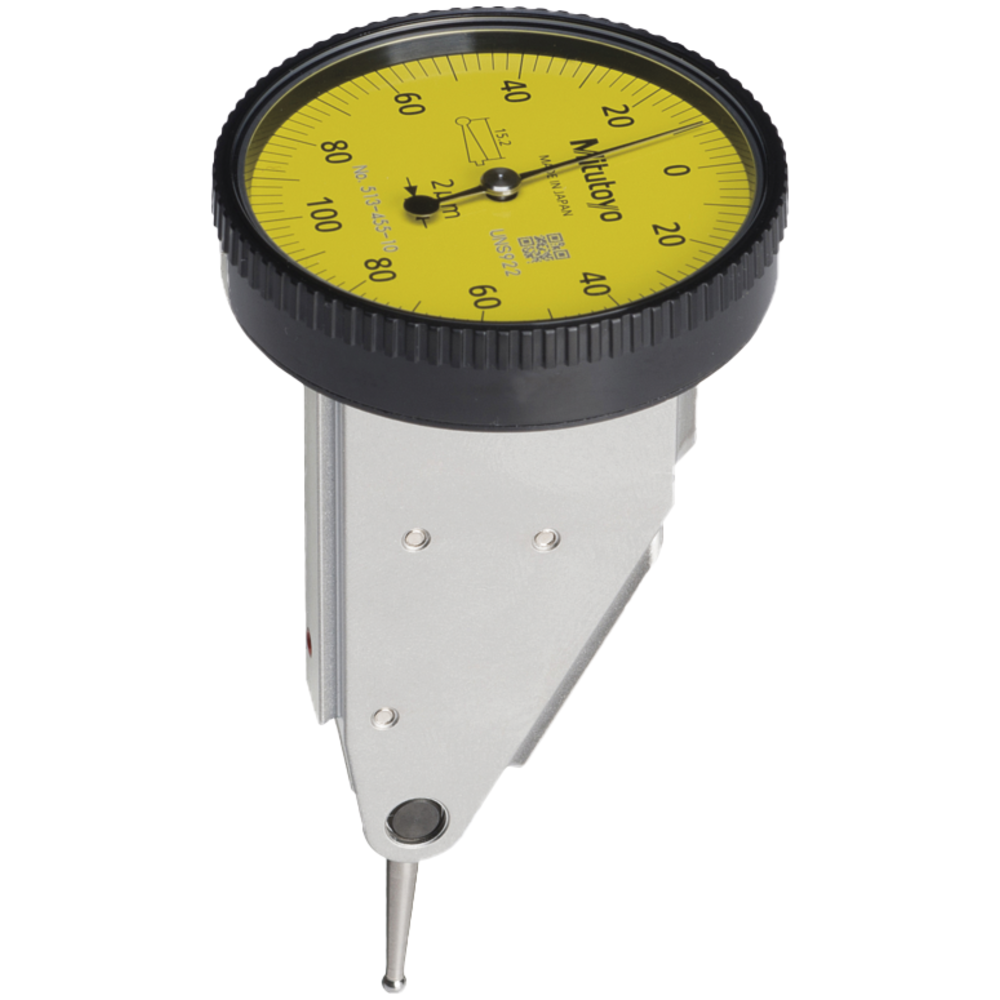

Fühlhebelmessgerät 0,2mm (0,002mm) Skala 0-100-0, Außenring-ø39mm, vertikal

Fühlhebelmessgerät 0,2mm (0,002mm) Skala 0-100-0, Außenring-ø39mm, vertikal
Fühlhebelmessgerät 0,2mm (0,002mm) Skala 0-100-0, Außenring-ø39mm, vertikal Fühlhebelmessgerät 0,2mm (0,002mm) Skala 0-100-0, Außenring-ø39mm, vertikal Fühlhebelmessgerät 0,2mm (0,002mm) Skala 0-100-0, Außenring-ø39mm, vertikal Fühlhebelmessgerät 0,2mm (0,002mm) Skala 0-100-0, Außenring-ø39mm, vertikal
Price:
182,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Lever dial indicator with offset dial plate configuration
  • Vertical or parallel readings

Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Lever dial indicator with offset dial plate configuration
  • Vertical or parallel readings

Article no./ATORN no.
5250200102
Vendor Article no.
513-455-10E
Packaging unit
1
Catalogue page

Technical characteristics

Accuracy fe 3 µm
Design Ziffernblatt vertikal
Dial plate vertikal
DIN 2270
Display Analogue
Error limit 0,003 mm
External ring Ø 40 mm
Included in delivery Sturdy box + Manufacturer’s test certificate
Length of measuring sensor from centre of ball 15,2 mm
Measurement range 0,2 mm
Measurement range 0,2 mm
Outer diameter 40 mm
Packaging / Shipment Sturdy box
Reading 0,002 mm
Scale 0-100-0
Scale value 0,002 mm
Sensor tip length 15,2 mm
Standard constructional dimensions DIN DIN 2270
