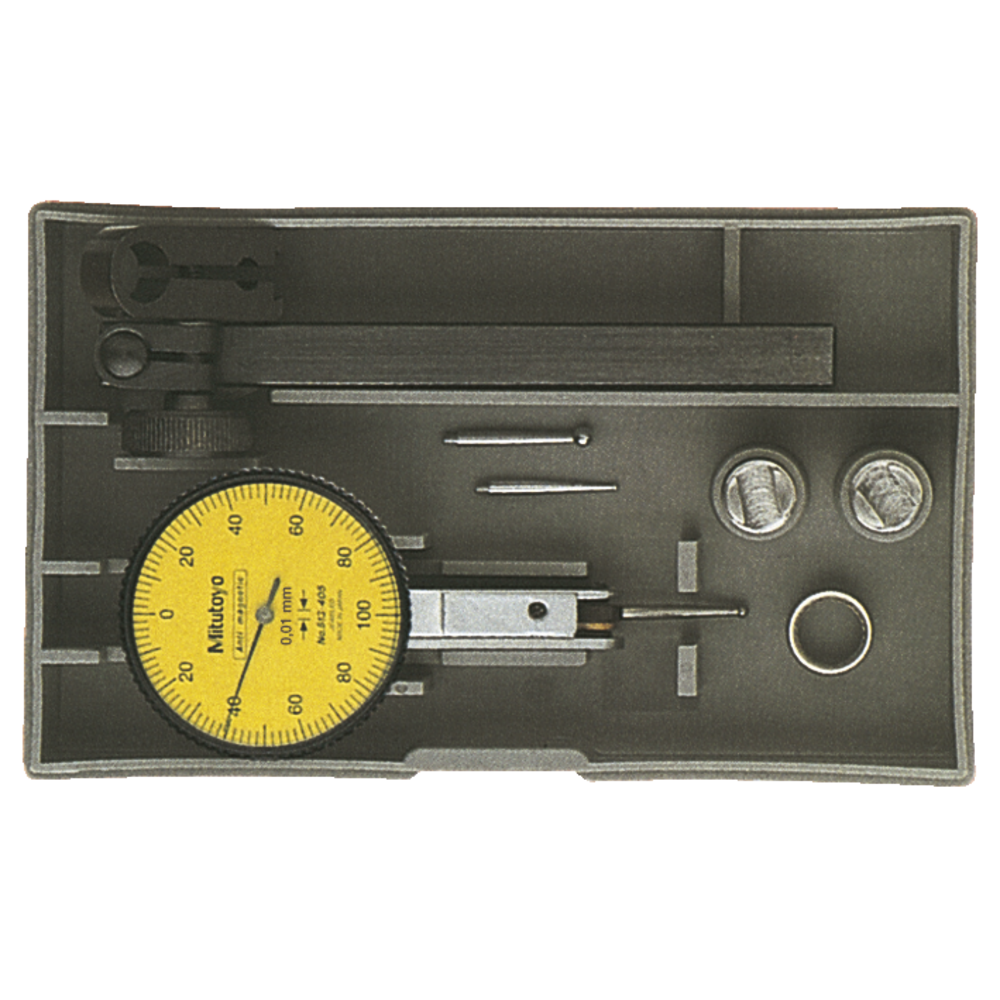

Fühlhebelmessgerät 0,4mm (0,002mm) 0-100-0 AD ø40mm, kpl. Satz

Fühlhebelmessgerät 0,4mm (0,002mm) 0-100-0 AD ø40mm, kpl. Satz
Fühlhebelmessgerät 0,4mm (0,002mm) 0-100-0 AD ø40mm, kpl. Satz Fühlhebelmessgerät 0,4mm (0,002mm) 0-100-0 AD ø40mm, kpl. Satz
Price:
222,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*
Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Set
  • Dial test indicator,
    3x HM probe tips, Ø 1, 2 and 3 mm; 2x clamping shanks, Ø 4 and 8 mm; 1x clamping nut; 1x universal holder; 1x holding fixture, 9 x 9 x 100 mm

Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Set
  • Dial test indicator,
    3x HM probe tips, Ø 1, 2 and 3 mm; 2x clamping shanks, Ø 4 and 8 mm; 1x clamping nut; 1x universal holder; 1x holding fixture, 9 x 9 x 100 mm

Article no./ATORN no.
5250010114
Vendor Article no.
513-445-10T
Packaging unit
1
Catalogue page

Technical characteristics

Accuracy fe 6 µm
DIN 2270
Display Analogue
Error limit 0,006 mm
External ring Ø 40 mm
Included in delivery Sturdy box + Manufacturer’s test certificate
Length of measuring sensor from centre of ball 15,2 mm
Measurement range 0,4 mm
Measurement range 0,4 mm
Outer diameter 40 mm
Packaging / Shipment Sturdy box
Reading 0,002 mm
Scale 0-100-0
Sensor tip length 15,2 mm
Standard constructional dimensions DIN DIN 2270
