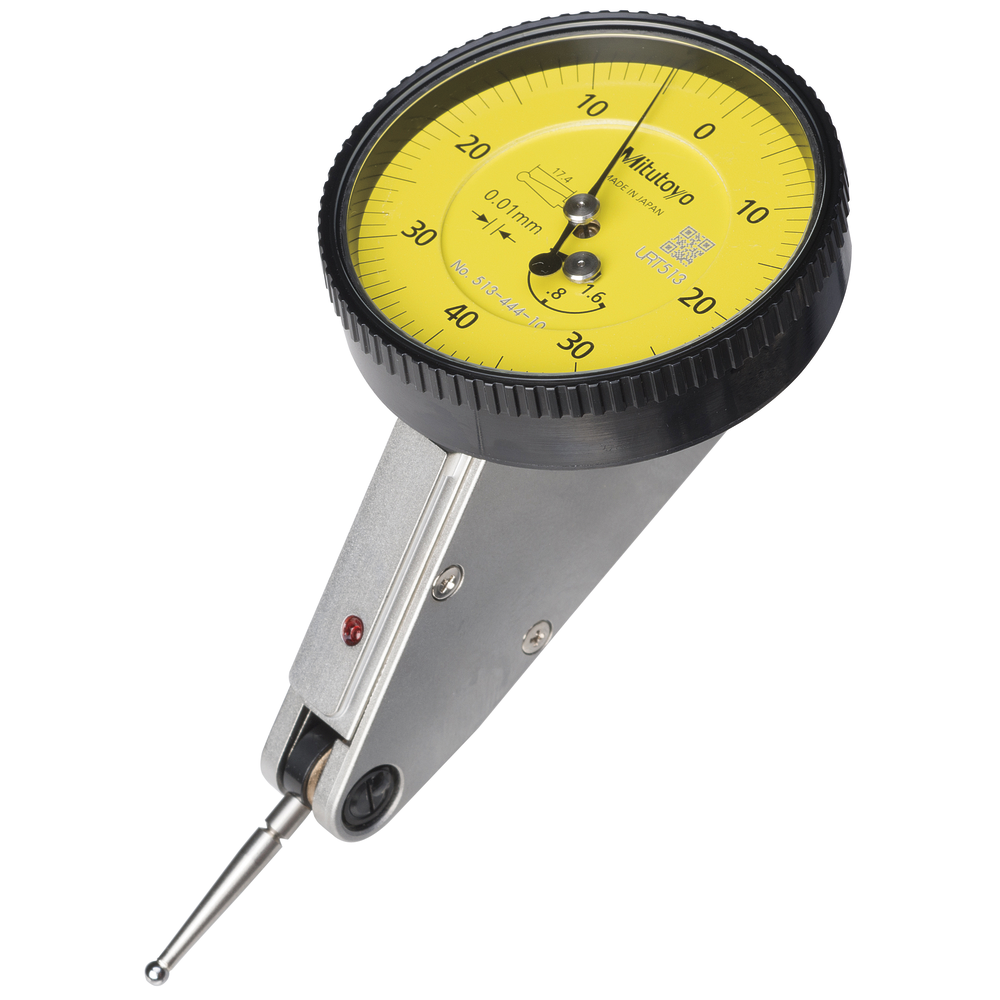

Lever dial indicator 1.6 mm (0.01 mm) scale 0-40-0, external ring 39 mm inclined

Lever dial indicator 1.6 mm (0.01 mm) scale 0-40-0, external ring 39 mm inclined
Lever dial indicator 1.6 mm (0.01 mm) scale 0-40-0, external ring 39 mm inclined Lever dial indicator 1.6 mm (0.01 mm) scale 0-40-0, external ring 39 mm inclined Lever dial indicator 1.6 mm (0.01 mm) scale 0-40-0, external ring 39 mm inclined Lever dial indicator 1.6 mm (0.01 mm) scale 0-40-0, external ring 39 mm inclined
Price:
174,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Lever dial indicator with angled dial plate
Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Lever dial indicator with angled dial plate
Article no./ATORN no.
5250010112
Vendor Article no.
513-444-10E
Packaging unit
1
Catalogue page
KS-1418

Technical characteristics

Accuracy fe 10 µm
DIN 2270
Display Analogue
Error limit 0,010 mm
External ring Ø 39 mm
Included in delivery Sturdy box + Manufacturer’s test certificate
Length of measuring sensor from centre of ball 17,4 mm
Measurement range 1,6 mm
Measurement range 1,6 mm
Outer diameter 40 mm
Packaging / Shipment Sturdy box
Reading 0,01 mm
Scale 0-40-0
Scale value 0,01 mm
Sensor tip length 17,4 mm
Standard constructional dimensions DIN DIN 2270
