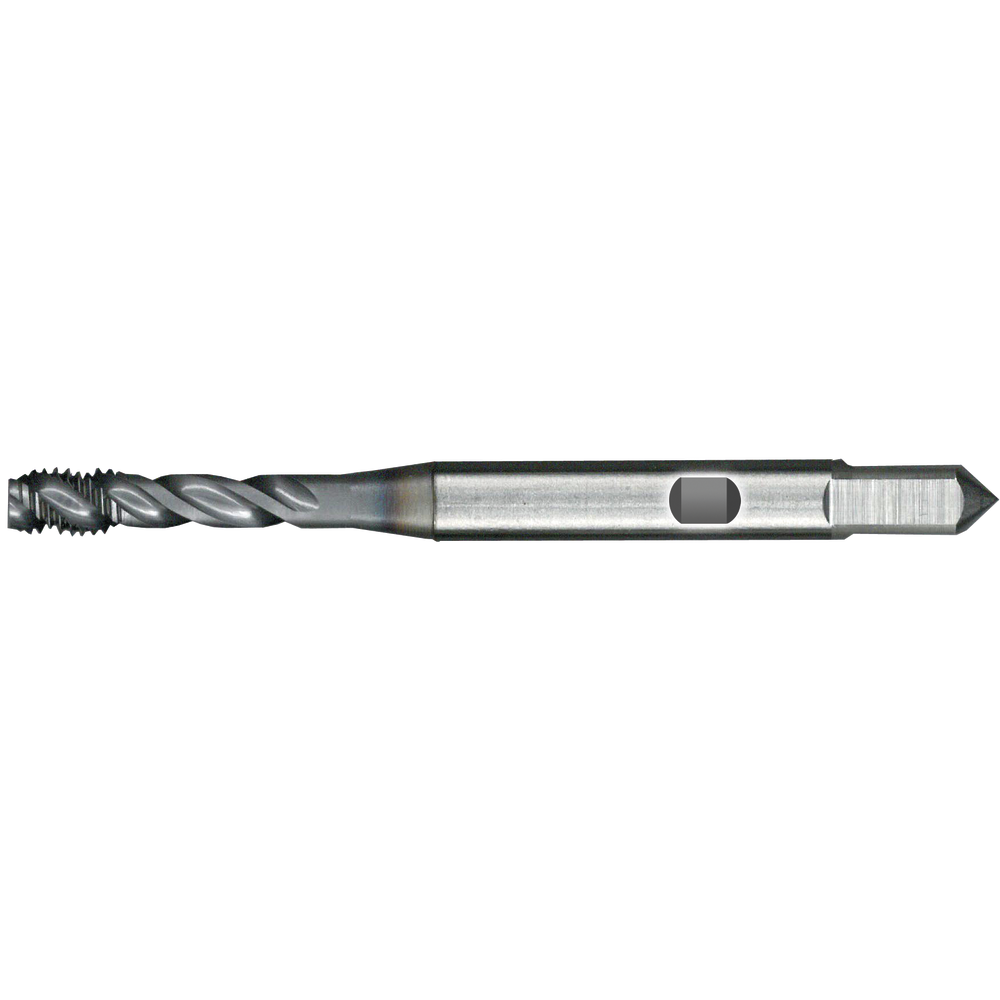

Machine tap HSS-PM A-SFT DIN371C M3x0.5 with shank DIN1835 (Weldon)

Machine tap HSS-PM A-SFT DIN371C M3x0.5 with shank DIN1835 (Weldon)
Machine tap HSS-PM A-SFT DIN371C M3x0.5 with shank DIN1835 (Weldon) Machine tap HSS-PM A-SFT DIN371C M3x0.5 with shank DIN1835 (Weldon)
Price:
30,50 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

A-SFT machine tap, with Weldon clamping surface
  • Metric ISO 6HX thread
  • 45°, spiral-fluted
  • Form C, 2.5-thread chamfer
  • Constructional dimensions DIN 371
  • Cutting material: HSS-E-PM, TiCN-coated
  • For blind-hole threads
  • Additional versions available

A-SFT machine tap, with Weldon clamping surface
  • Metric ISO 6HX thread
  • 45°, spiral-fluted
  • Form C, 2.5-thread chamfer
  • Constructional dimensions DIN 371
  • Cutting material: HSS-E-PM, TiCN-coated
  • For blind-hole threads
  • Additional versions available

Article no./ATORN no.
1334900030
Vendor Article no.
48220138
Packaging unit
1
Catalogue page
KS-0253
Cutting values
SW-0398

Technical characteristics

C 4,9 mm
C 4,9 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M 3 mm
D M 3 mm
D1 6 mm
D1 6 mm
DIN DIN 371
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 56 mm
L 56 mm
L1 4 mm
L1 4 mm
L2 18 mm
L2 18 mm
Pitch 0,5 mm
Pitch 0,5 mm
Shank Straight with driving plane, DIN 1835 B
Spiral angle 45° RH helix angle
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2X (6HX)
Tool holding device Zylinderschaft HB
Twist angle 45° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
titanium alloys
titanium alloys

very suitable
suitable
