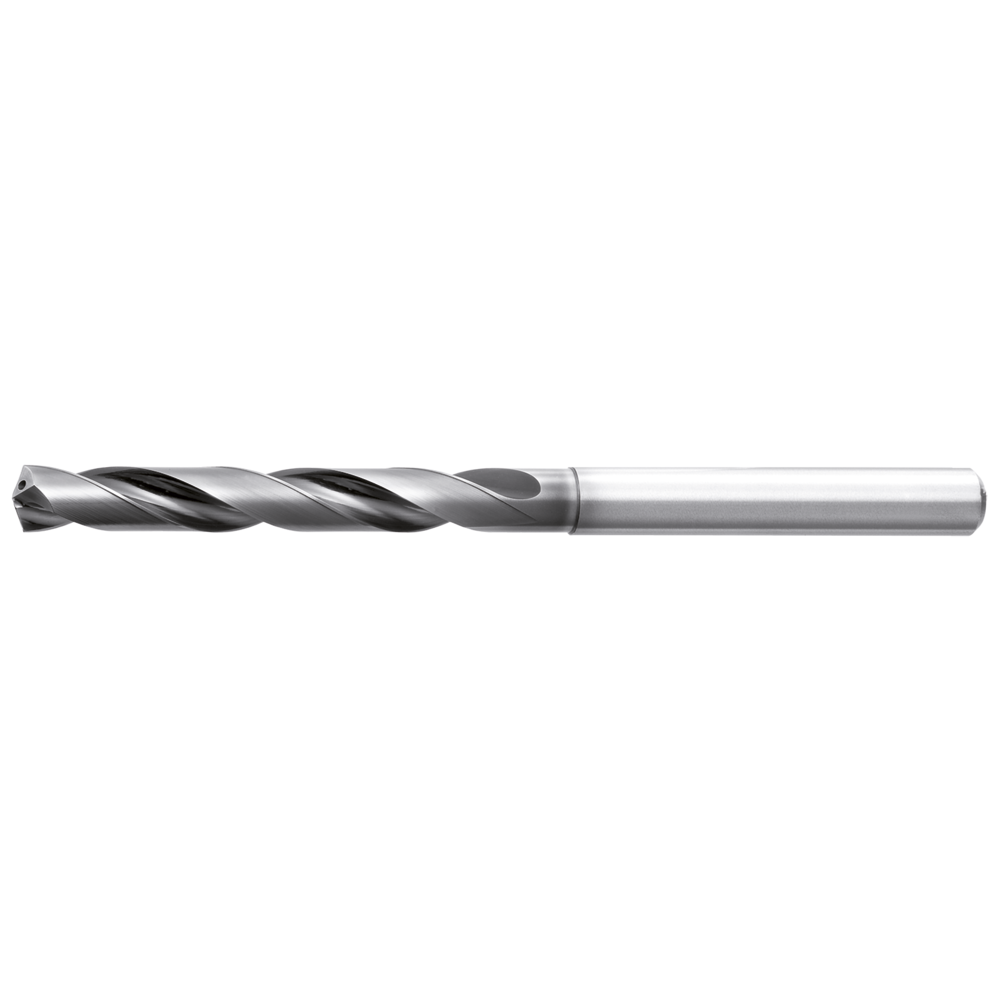

Solid carbide drill WDO-SUS-5D 2.78 mm with IC

Solid carbide drill WDO-SUS-5D 2.78 mm with IC
Solid carbide drill WDO-SUS-5D 2.78 mm with IC Solid carbide drill WDO-SUS-5D 2.78 mm with IC Solid carbide drill WDO-SUS-5D 2.78 mm with IC
Price
79,85 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

ADO-SUS-5D solid carbide high-performance drill
  • Cutting material: solid carbide, EgiAs coating
  • Sharp cutting edges reduce machining-induced material hardenings
  • Short and compact chips thanks to innovative chip flute geometry
  • Friction-reducing protective chamfer reduces heat development
  • New coolant bore design increases coolant flow rate and thus reduces heat generation in the material
  • Increased coating adhesion of the new EgiAs coating reduces premature wear and coating spalling

Article no./ATORN no.
1116150278
Vendor Article no.
8667278
Packaging unit
1
Catalogue page
KS-0134
Cutting values
SW-0377

Technical characteristics

Coating TiAlN
Coolant design Internal axial
Coolant supply Internal axial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2,78 mm
D h8 2,78 mm
D1 3 mm
D1 h6 3 mm
DIN Non-DIN
Drilling depth 5xD
Feed f steel < 1000 N/mm² 0,06 mm/rev
L 78 mm
L1 26 mm
Max. drilling depth (D) 5xD
Point angle Point angle 140°
S 140 °
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN Non-DIN
Tolerance of cutting edge diameter h8
Tool holding device Cylinder shaft HA
Twist angle 30° (rights)
Type Type VA
Type Typ VA

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
copper Cu-alloy
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
