External clamping gripper jaws P=20 N=12 M10 1.5x60, set of 3 units

External clamping gripper jaws P=20 N=12 M10 1.5x60, set of 3 units
External clamping gripper jaws P=20 N=12 M10 1.5x60, set of 3 units External clamping gripper jaws P=20 N=12 M10 1.5x60, set of 3 units
Price:
359,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Gripper top jaws for external clamping, 1.5 mm x 60°
  • For chuck types: B200 / BB200 / BR
  • hardened
  • material 16MnCr5
  • price per set of 3 units
  • Clamping range for BB200 and other sizes can be found via the clamping jaw finder on our website

Gripper top jaws for external clamping, 1.5 mm x 60°
  • For chuck types: B200 / BB200 / BR
  • hardened
  • material 16MnCr5
  • price per set of 3 units
  • Clamping range for BB200 and other sizes can be found via the clamping jaw finder on our website

Article no./ATORN no.
4203700605 / 22640875
Packaging unit
1
Catalogue page

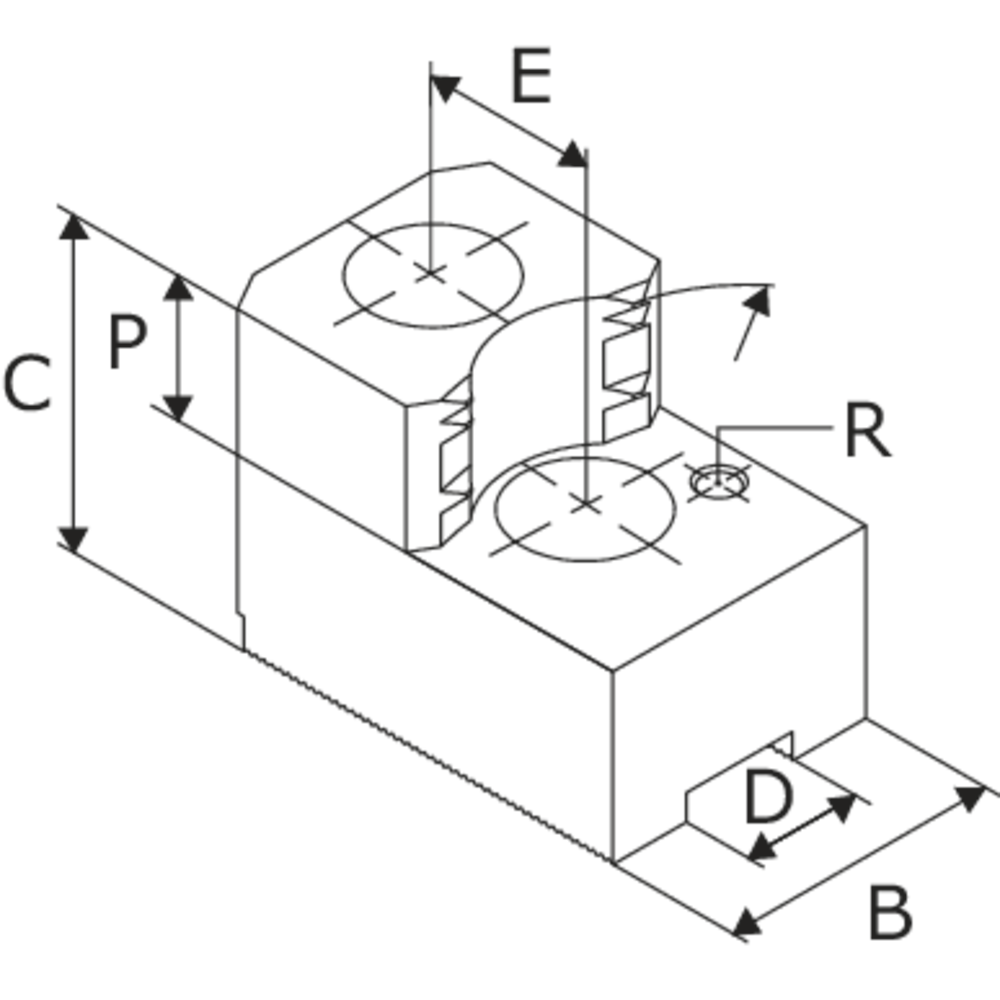

Technical characteristics

B 30 mm
B 30 mm
Bohrabstand 20 mm
C 47 mm
C 47 mm
Clamping range 31 / 58
Clamping range 31 / 58
D 12 mm
D 12 mm
E 20 mm
E 20 mm
for chuck Ø 169 mm
for chuck Ø 169 mm
Nutbreite 12 mm
P 20 mm
P 20 mm
Passend für Gewinde M10
R M6 mm
R M6 mm
Schwingdurchmesser 183 mm
Spanndurchmesser max. 58 mm
Spanndurchmesser min. 31 mm
Verzahnung 1,5 mm x 60°
