Digital shaft key groove gauge 150 mm (0.01 mm) IP67 with HM meas. areas

Digital shaft key groove gauge 150 mm (0.01 mm) IP67 with HM meas. areas
Digital shaft key groove gauge 150 mm (0.01 mm) IP67 with HM meas. areas Digital shaft key groove gauge 150 mm (0.01 mm) IP67 with HM meas. areas Digital shaft key groove gauge 150 mm (0.01 mm) IP67 with HM meas. areas
Price
742,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*

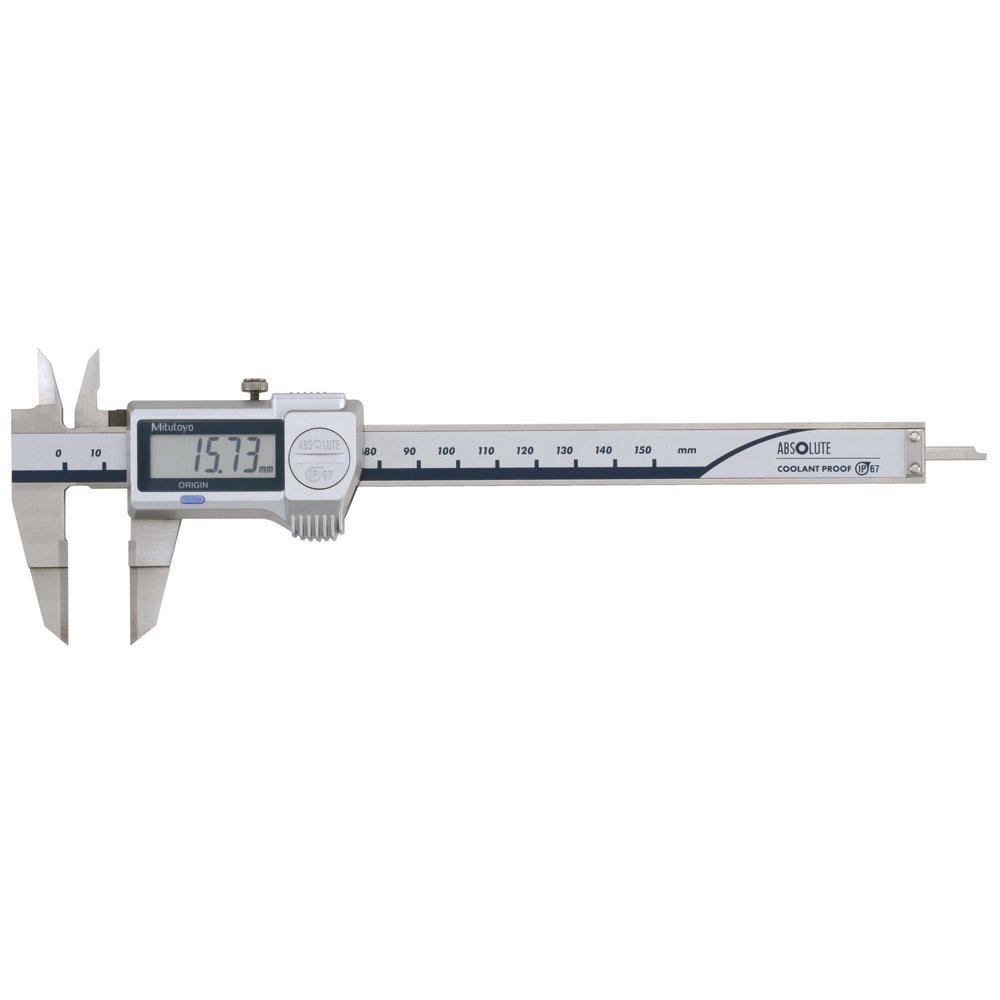

Digital special-purpose sliding calliper IP67
  • ABSOLUTE scale
  • Inductive functional principle
  • Switches off automatically after 20 minutes of inactivity
  • New, high-contrast display
  • Digit height 9 mm
  • Battery life approx. 5 years
  • Battery change possible without a screwdriver
  • Functions: ZERO/ORIGIN, automatic ON/OFF, battery check
  • Supplied with SR44 battery, No. 500534 0001
  • Special accessories: Digimatic cable type A No. 563100 0001 (1 m), No. 563100 0002 (2 m), USB cable type A-USB No. 563110 0001

Shaft key groove gauge
  • Carbide-tipped measuring areas
  • With depth bar

Article no./ATORN no.
5007420151
Vendor Article no.
573-635-20
Packaging unit
1
Catalogue page

Technical characteristics

A 40 mm
A 40 mm
B 20 mm
B 20 mm
C 3,5 mm
C 3,5 mm
D 0,75 mm
D 0,75 mm
Data transmission type DIGIMATIC/USB
Data transmission type DIGIMATIC/USB
Depth bar Flat
Depth bar Flat
DIN Company standard
Display Digital
Error limit 0,03 mm
Error limit 0,03 mm
Functions Absolute function
Functions Absolute function
Included in delivery Sturdy box
Included in delivery Sturdy box
Material property Stainless steel/All parts hardened
Material property Stainless steel/All parts hardened
Max. length measuring range 150 mm
Max. length measuring range 150 mm
Protection type IP 67
Protection type IP 67
