NC compact cutter RKZ-M 50L with stepped jaws, smooth 20/10 high

NC compact cutter RKZ-M 50L with stepped jaws, smooth 20/10 high
NC compact cutter RKZ-M 50L with stepped jaws, smooth 20/10 high
Price:
1.469,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

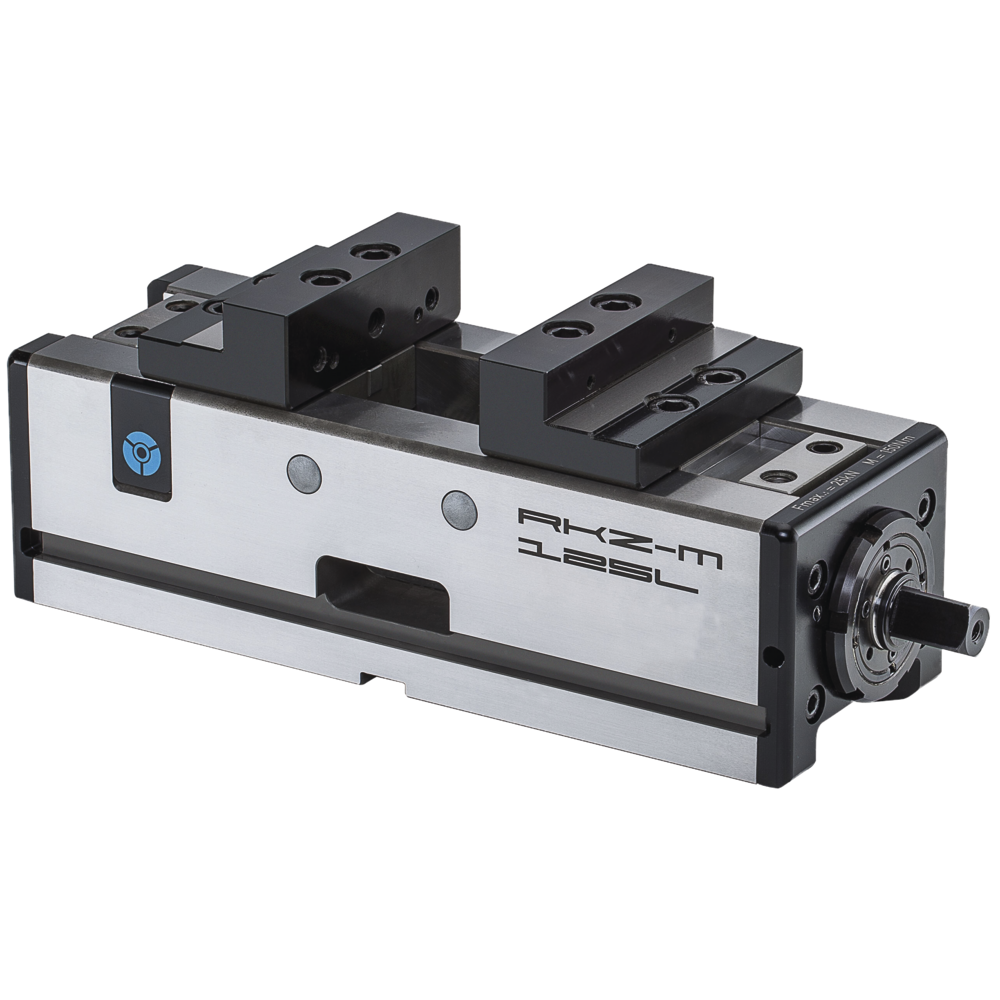

RKZ-M NC compact centric clamp
  • Steel base frame
  • All guides are hardened and ground on all sides
  • Mechanical, manually-actuated clamping system without power intensifier
  • Central clamping with two mobile jaws
  • Optimised for 5-axis machining
  • Short, compact design
  • Large clamping range
  • Middle clamping accuracy: ±0.02 mm
  • Precision 0.01 mm
  • Supplied with: 1 pair of hard stepped jaws and crank

Base body with staggered top jaws
RKZ-M NC compact centric clamp
  • Steel base frame
  • All guides are hardened and ground on all sides
  • Mechanical, manually-actuated clamping system without power intensifier
  • Central clamping with two mobile jaws
  • Optimised for 5-axis machining
  • Short, compact design
  • Large clamping range
  • Middle clamping accuracy: ±0.02 mm
  • Precision 0.01 mm
  • Supplied with: 1 pair of hard stepped jaws and crank

Base body with staggered top jaws
Article no./ATORN no.
4583000050
Vendor Article no.
180190
Packaging unit
1
Catalogue page
KS-1266

Technical characteristics

Base body length 167 mm
Clamp force 10 kN
Clamp force 10 kN
Clamping range 0 - 111 mm
Clamping range 0 - 111
Groove dimensions device 20 H7 mm
Height 55 mm
Height 55 mm
Jaw height 20 mm
Jaw height 20 mm
Jaw width 50 mm
Jaw width 50 mm
Total height 75 mm
Total height 75 mm
Total length 167 mm
Weight 3,5 kg
Weight 3,5 kg
Catalogue page Download
