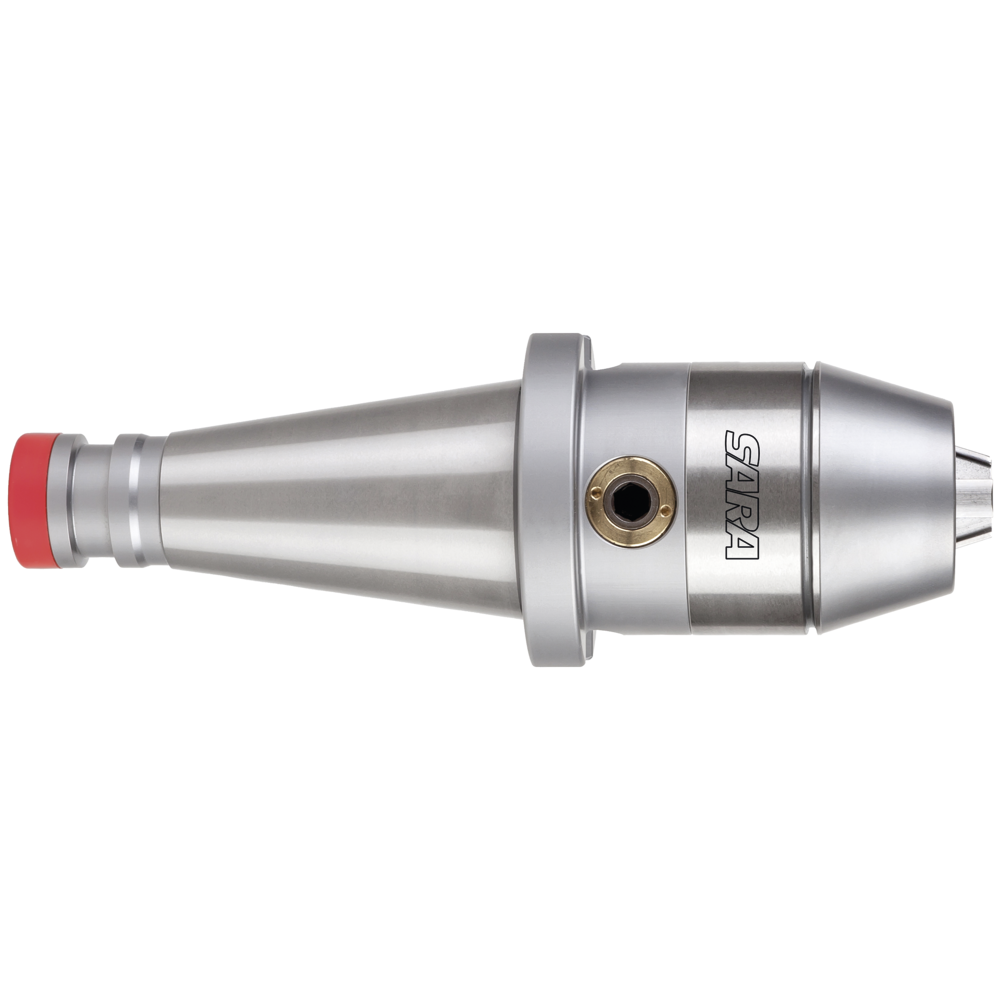

NC short drill chuck 0.5-13 with spur gear system / DIN 2080, Form A

NC short drill chuck 0.5-13 with spur gear system / DIN 2080, Form A
NC short drill chuck 0.5-13 with spur gear system / DIN 2080, Form A NC short drill chuck 0.5-13 with spur gear system / DIN 2080, Form A
Price:
238,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

NC short drill chuck with spur gear system
  • Clamping via spur gear system
  • Clockwise and anti-clockwise rotation
  • True running accuracy 0.05 mm
  • Reliable bevel-pinion gear
  • Slim design
  • Max. permitted rotational speed with unbalanced tool 7,000 rpm

DIN 2080 Form A
NC short drill chuck with spur gear system
  • Clamping via spur gear system
  • Clockwise and anti-clockwise rotation
  • True running accuracy 0.05 mm
  • Reliable bevel-pinion gear
  • Slim design
  • Max. permitted rotational speed with unbalanced tool 7,000 rpm

DIN 2080 Form A
Article no./ATORN no.
4402424013
Packaging unit
1
Catalogue page
KS-1177

Technical characteristics

A 78 mm
A 78 mm
Max. concentricity 0,05 mm
Max. concentricity 0,05 mm
Max. tightening torque 20 N·m
Max. tightening torque 20 N·m
Min./max. clamping width 0,5-13 mm mm
Min./max. clamping width 0,5-13 mm mm
Outer diameter 50 mm
Outer diameter 50 mm
Retaining force 40 N
Retaining force 40 N
Taper type SK40
Taper type SK40
Wr. width 6 mm
Wr. width 6 mm
