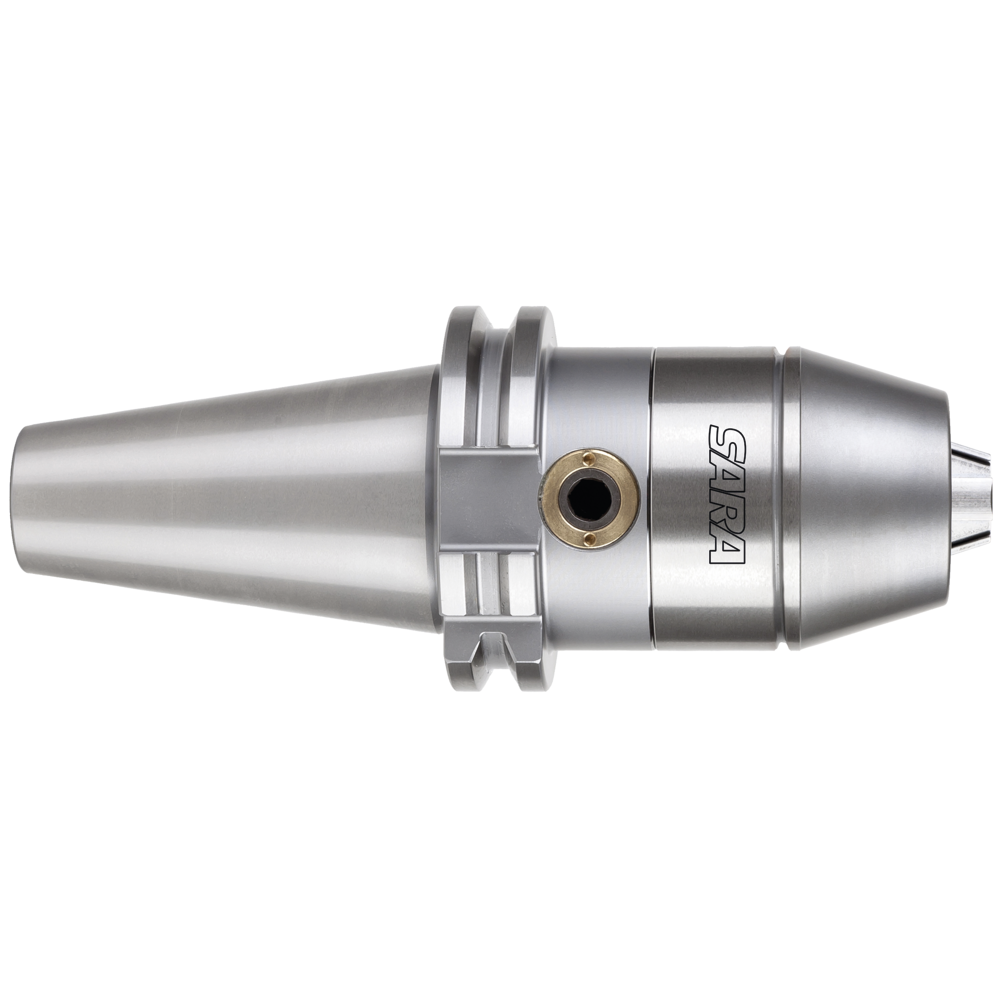

NC short drill chuck 2.5-16 with spur gear system / ISO 7388-1 Form A

NC short drill chuck 2.5-16 with spur gear system / ISO 7388-1 Form A
NC short drill chuck 2.5-16 with spur gear system / ISO 7388-1 Form A NC short drill chuck 2.5-16 with spur gear system / ISO 7388-1 Form A
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
NC short drill chuck with spur gear system
  • Clamping via spur gear system
  • Clockwise and anti-clockwise rotation
  • True running accuracy 0.05 mm
  • Reliable bevel-pinion gear
  • Slim design
  • Max. permitted rotational speed with unbalanced tool 7,000 rpm

DIN ISO 7388-1 Form A / DIN 69871
Article no./ATORN no.
4402434016
Packaging unit
1
Catalogue page

Technical characteristics

A 84 mm
External Ø 57 mm
Max. concentricity 0,05 mm
Max. tightening torque 20 N·m
Min./max. clamping width 2,5-16 mm mm
Outer diameter 57 mm
Retaining force 40 N
Shank SK40
Taper type SK40
Wr. width 6 mm
