Range expanded

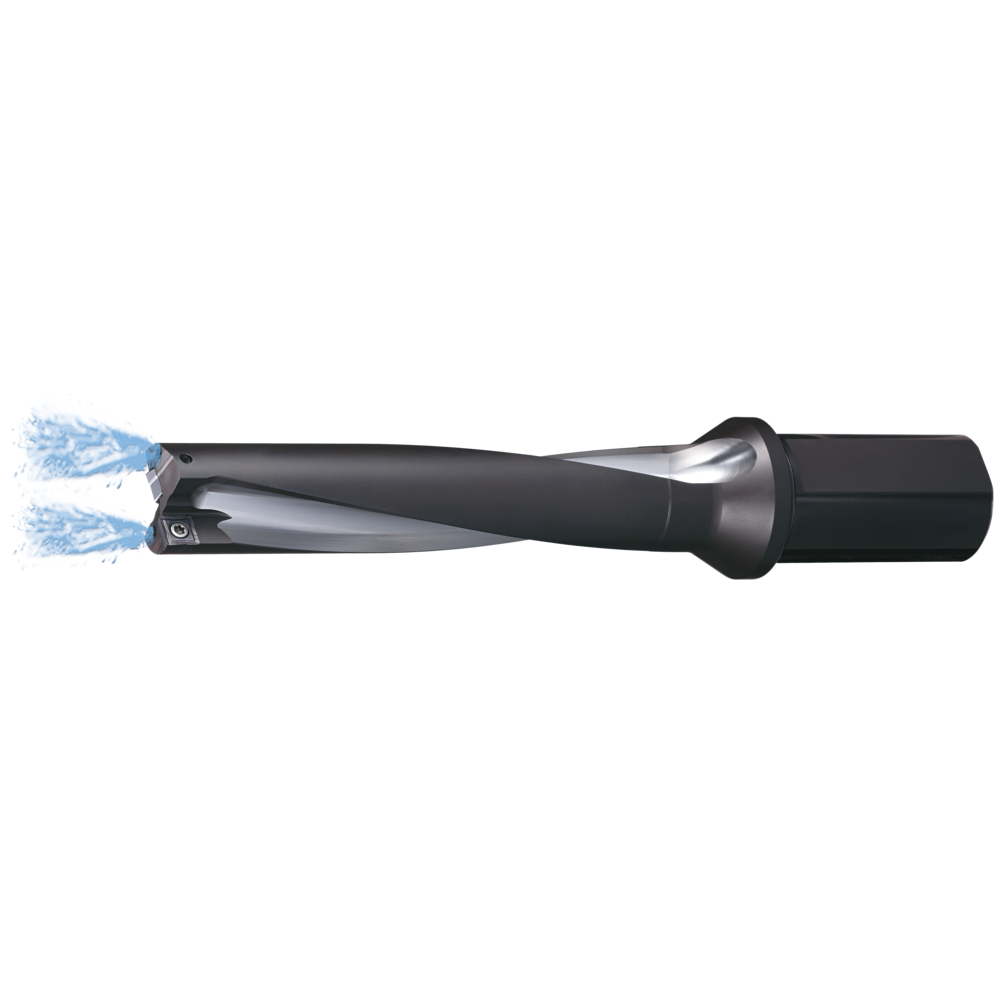

Indexable inserts solid drill bits PHOENIX PD

• Optimised substrate geometry for increased stability, improved chip removal and reduced cutting forces
• Available in tool lengths of 2xD, 3xD, 4xD and 5xD
• Diameter 12-63mm
• Wide range of applications in steel, stainless steel, cast iron and aluminium materials
• Short chips due to additional chip breaker in the chip flute
• High efficiency thanks to 4 effective cutting edges per indexable insert
• Same indexable insert can be used as centre and periphery plate
• With internal coolant supply
• Please note: Supplied without chuck key (Torx-Plus), please order separately!

P5D - 5xD

• Bore tolerances:
  Ø 15-20.5 mm > 0/+0.3 mm; Ø 21-49 mm > 0/+0.4 mm; Ø 50-63 mm > 0/+0.5 mm

Range expanded

Indexable inserts solid drill bits PHOENIX PD

• Optimised substrate geometry for increased stability, improved chip removal and reduced cutting forces
• Available in tool lengths of 2xD, 3xD, 4xD and 5xD
• Diameter 12-63mm
• Wide range of applications in steel, stainless steel, cast iron and aluminium materials
• Short chips due to additional chip breaker in the chip flute
• High efficiency thanks to 4 effective cutting edges per indexable insert (from Ø 15 mm)
• Same indexable insert can be used as centre and periphery plate
• With internal coolant supply
• Please note: Supplied without clamping key (Torx-Plus), please order separately.

P5D - 5xD

• Bore tolerances:
  Ø 15-20.5 mm > 0/+0.3 mm; Ø 21-49 mm > 0/+0.4 mm; Ø 50-63 mm > 0/+0.5 mm
