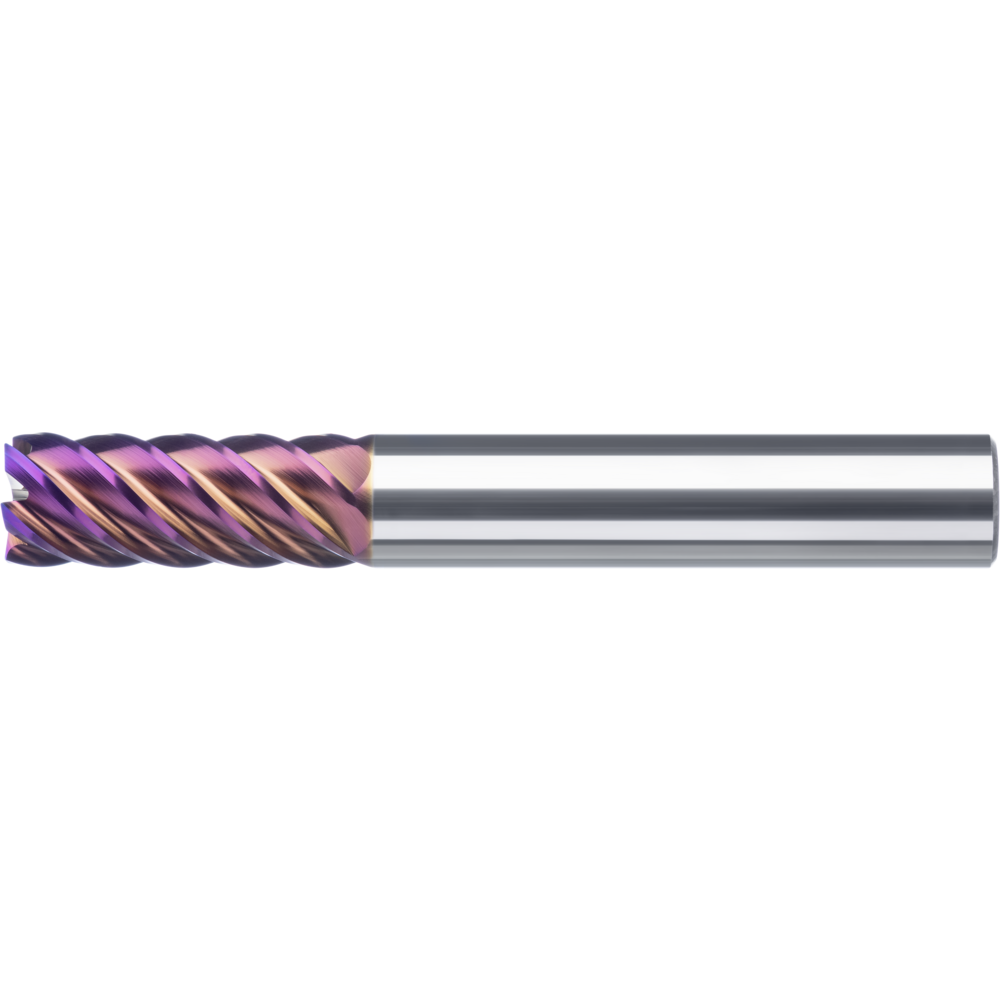

Multi-flute cutter SC 45° 3mm, Z=6 RockTec PRO

Multi-flute cutter SC 45° 3mm, Z=6 RockTec PRO
Multi-flute cutter SC 45° 3mm, Z=6 RockTec PRO Multi-flute cutter SC 45° 3mm, Z=6 RockTec PRO
Price:
53,80 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Multi-flute milling cutter 90° RockTec PRO
  • For machining materials from 47 to 65 HRC
  • Optimised geometry for hard machining
  • Cutting material: ultra micro-grain SC
  • state-of-the-art coating technology for reduced wear and extreme hardness
  • Subject to process-related colour variations in the coating.

Standard
Article no./ATORN no.
2571750030 / 11264063
Packaging unit
1
Catalogue page
KS-0531
Cutting values
SW-0783

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting No
Coating TiAlSiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 - mm
Durchmesser max. 20 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-20 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz hardened steel < 60 HRc 0,02 mm/tooth
fitness hartl total 1
Form Corner
fz hard 65 HRC 0,024 mm
Geeignet für Werkstoffgruppe H 1
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 2
Geeignet für Werkstoffgruppe S 3
L 57 mm
L1 9 mm
Overall length Normal
Rake angle -3 °
Surface RockTec PRO
Tolerance of cutting edge diameter f7
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 45°
Type H
Z 6 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
