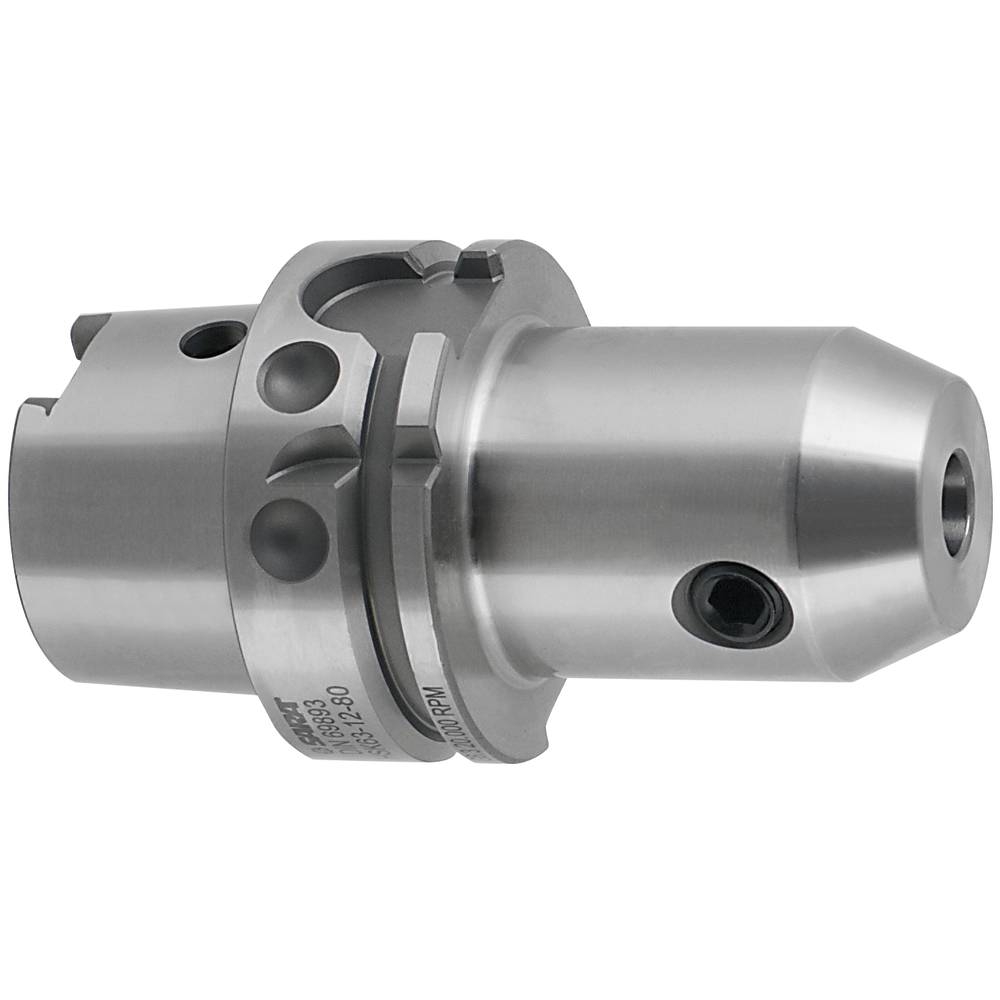

Mill. cutter mount (DIN6359) DIN69893 HSK-A100, 6mm A= 80mm with CB G2.5 25,000

Price
172,00 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 18:00 - delivered tomorrow.

Milling cutter holding fixture, DIN 6359
  • For straight shanks, DIN 1835-B (WELDON)
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm2
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Supplied with clamping screw
  • Additional shank designs and AD/B version available on request
  • Version with coolant bores: Ø 6 to Ø 18 mm = two coolant bores, Ø 20 to Ø 40 mm = four coolant bores
  • Version with coolant bores: Ø 6 to Ø 18 mm = two coolant boresØ 20 to Ø 40 mm = four coolant bores

DIN 69893 type A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used

Milling cutter holding fixture, DIN 6359
  • For straight shanks, DIN 1835-B (WELDON)
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm2
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Supplied with clamping screw
  • Additional shank designs and AD/B version available on request
  • Version with coolant bores: Ø 6 to Ø 18 mm = two coolant bores, Ø 20 to Ø 40 mm = four coolant bores
  • Version with coolant bores: Ø 6 to Ø 18 mm = two coolant boresØ 20 to Ø 40 mm = four coolant bores

DIN 69893 type A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used

Article no./ATORN no.
4345111006 / 22661333
Packaging unit
1
Catalogue page

Technical characteristics

A 80 mm
A 80 mm
D 25 mm
D 25 mm
D1 6 mm
D1 6 mm
Design with coolant bores
Design with coolant bores
Shank HSK 100
Taper type HSK 100
