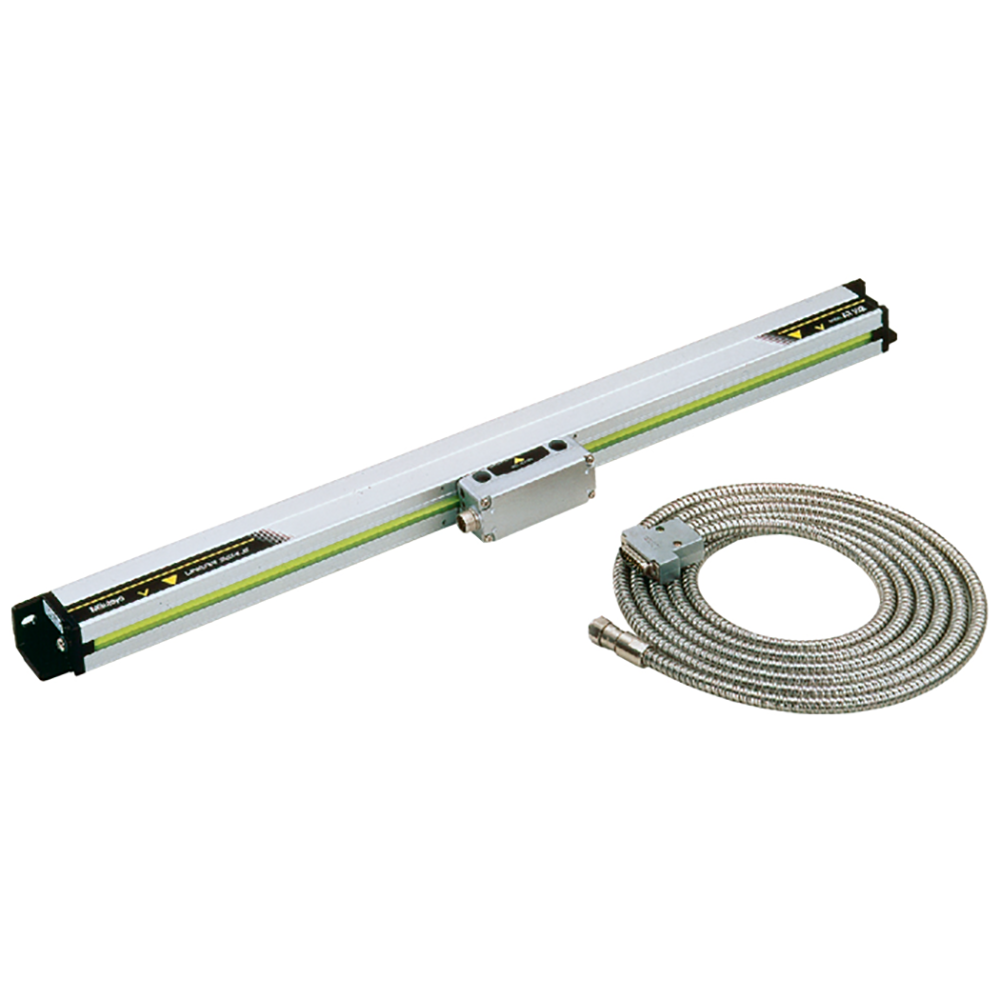

Digital length measurement system LINEAR SCALE AT 103

Standard profile

Installation-ready glass scale with aluminium profile casing

Fasteners included

Profile cross-section 37.5 x 50 mm (without encoder unit)

Accuracy: up to 3000 mm = (5 + 5L/1000 ) µm at 20°C
from 3250 mm = (5 +(5 + 8L/1,000) µm at 20 °C

Supplied with operating manual and factory certificate, shipped in disposable packaging

Caution: When selecting suitable scales, please always take into account the effective manually adjusted travel for your machine. Please also bear in mind that a mini profile AT 112F is available for use in tight installation spaces.

• Accuracy: (3+3L/1000)µm
