Grip insert 4-point h6

Grip insert 4-point h6
Grip insert 4-point h6
Price:
57,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Accessories for 5-axis clamping system TCA70

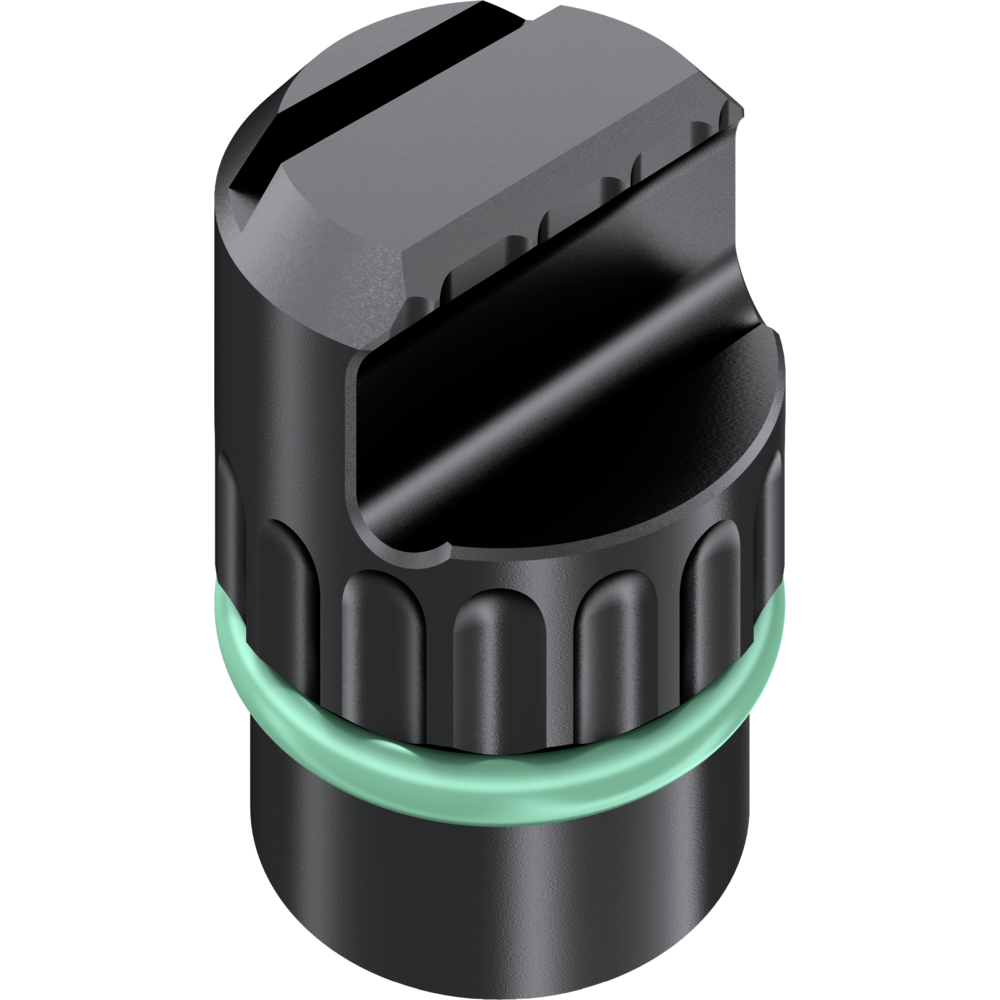

Grip insert for supporting jaw
  • for clamping raw parts
  • also firmly holds soft materials with lower clamp force
  • linear impression in the material ensures less deformation in soft materials
  • lost clamping edge: adjustable from 3.7 to 5.2mm
  • Grip height: adjustable from 2.6 to 4.1mm
  • for tools with ≤ 0.2mm / 100mm parallelism
  • grip inserts suitable for materials up to approx. 1000N/mm² strength

Accessories for 5-axis clamping system TCA70
Grip insert for supporting jaw
  • for clamping raw parts
  • also firmly holds soft materials with lower clamp force
  • linear impression in the material ensures less deformation in soft materials
  • lost clamping edge: adjustable from 3.7 to 5.2mm
  • Grip height: adjustable from 2.6 to 4.1mm
  • for tools with ≤ 0.2mm / 100mm parallelism
  • grip inserts suitable for materials up to approx. 1000N/mm² strength

Article no./ATORN no.
4597160001 / 22360028
Packaging unit
1
Catalogue page
KS-1271

Technical characteristics

Anschlussgewinde M14 x 1,5
D 16 mm
D 16 mm
Height 8 mm
Height 8 mm
Spannhöhe 2 max. 5,2 mm
Spannhöhe 2 min. 3,7 mm
Type Grip insert
Type Grip insert
ASSET_MatSafetyDataSheet Download
Catalogue page Download
