Zero jaw Jaw width 70mm

Price:
405,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Accessories for 5-axis clamping system TCA70

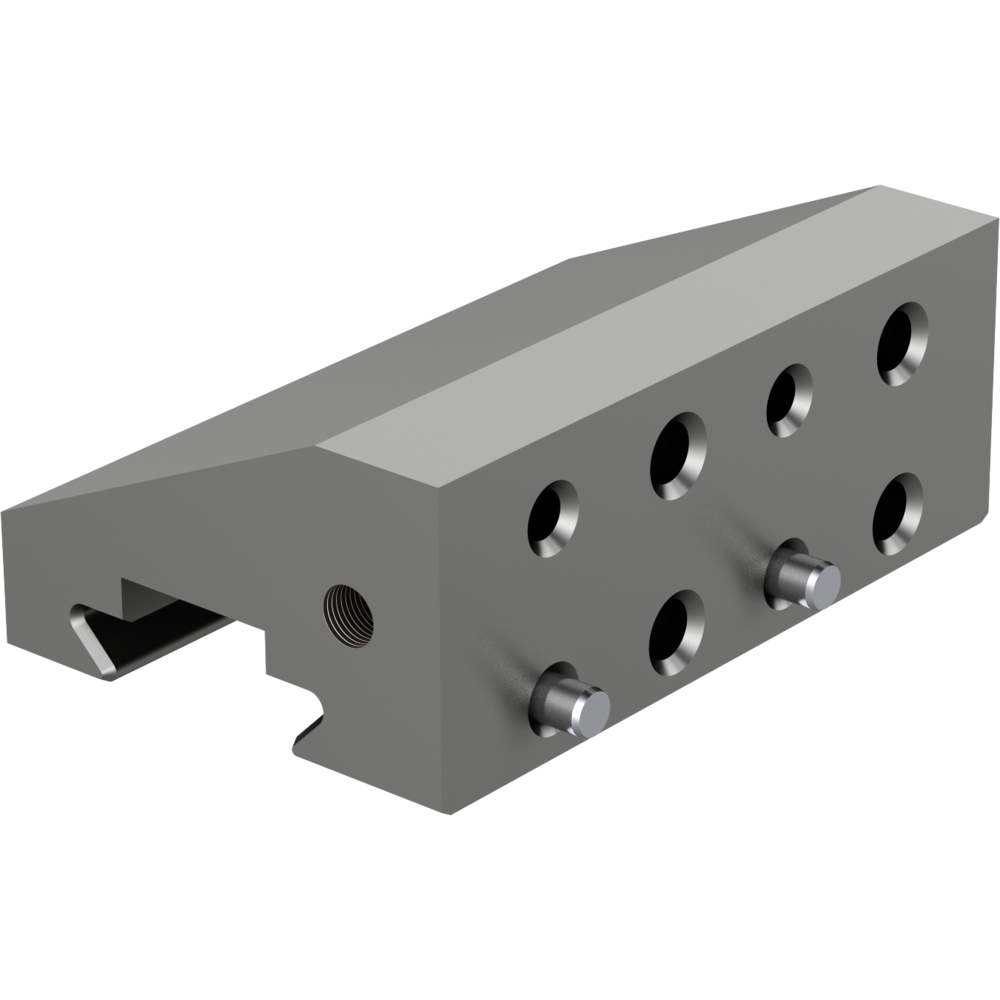

Zero jaw
  • Clamping of parallel, pre-machined workpieces
  • Clamp width 0 - 69 mm
  • Cylindrical pins as support surface; setting at heights of 176 mm and 191 mm possible
  • Minimal clamping edge: 20 mm for height 176 mm, 5 mm for height 191 mm
  • Material: case-hardened steel
  • Includes 4 cylindrical pins 4x10 DIN EN ISO 8734
  • Price per unit

Accessories for 5-axis clamping system TCA70
Zero jaw
  • Clamping of parallel, pre-machined workpieces
  • Clamp width 0 - 69 mm
  • Cylindrical pins as support surface; setting at heights of 176 mm and 191 mm possible
  • Minimal clamping edge: 20 mm for height 176 mm, 5 mm for height 191 mm
  • Material: case-hardened steel
  • Includes 4 cylindrical pins 4x10 DIN EN ISO 8734
  • Price per unit

Article no./ATORN no.
4597050070 / 22360026
Packaging unit
1
Catalogue page

Technical characteristics

Jaw width 70 mm
Jaw width 70 mm
Spannhöhe 2 max. 191 mm
Spannhöhe 2 min. 176 mm
Spannweite max. 69 mm
Spannweite min. 0 mm
Spannweite min./max. 0-69 mm
Type Zero jaw
Type Zero jaw
Weight 0,6 kg
Weight 0,6 kg
