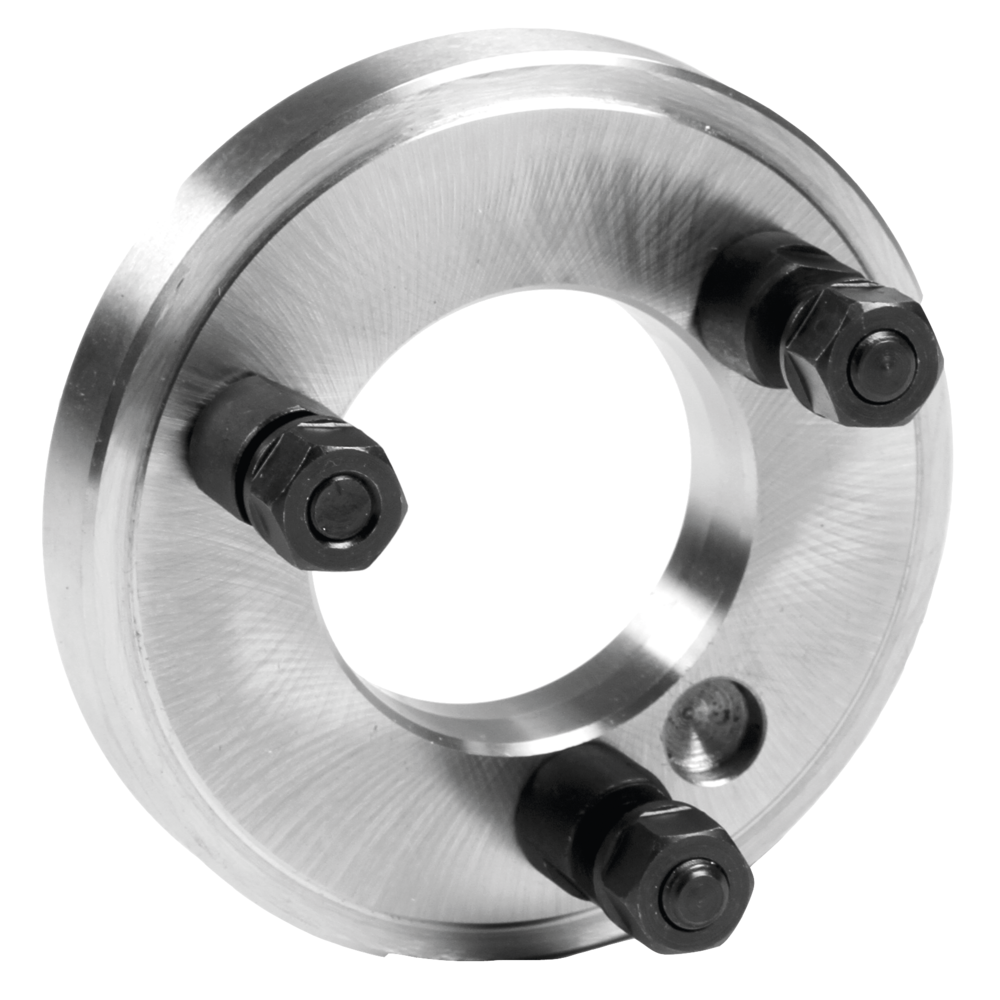

Planar flange 125, DIN 55027-3"

Planar flange 125, DIN 55027-3"
Planar flange 125, DIN 55027-3" Planar flange 125, DIN 55027-3"
Price
136,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Flange for lathe chucks and face plates
  • DIN 55026 with through-hole for direct connection to the spindle head
  • DIN 55027 for bayonet-type disc fastening with stay bolts and collar nut
  • DIN 55029 Camlock version with Camlock bolt
  • Steel design
  • Machined on the machine side
  • Faced on the chuck side
  • Other taper and chuck sizes available on request

DIN 55027
  • Short taper holder machined in accordance with DIN 55026
  • Faced on the chuck side
  • Includes stay bolt and collar nut

Flange for lathe chucks and face plates
  • DIN 55026 with through-hole for direct connection to the spindle head
  • DIN 55027 for bayonet-type disc fastening with stay bolts and collar nut
  • DIN 55029 Camlock version with Camlock bolt
  • Steel design
  • Machined on the machine side
  • Faced on the chuck side
  • Other taper and chuck sizes available on request

DIN 55027
  • Short taper holder machined in accordance with DIN 55026
  • Faced on the chuck side
  • Includes stay bolt and collar nut

Article no./ATORN no.
4050271203
Packaging unit
1
Catalogue page
KS-1123

Technical characteristics

Clearance hole 51,4 mm
Clearance hole 51,4 mm
External Ø 127 mm
For chuck diameter 125 mm
For chuck diameter 125 mm
Height 20 mm
Height 20 mm
Outer diameter 127 mm
Taper shank size 3
Taper support A2-3
