Flange for lathe chucks and face plates

• DIN 55026 with through-hole for direct connection to the spindle head
• DIN 55027 for bayonet-type disc fastening with stay bolts and collar nut
• DIN 55029 Camlock version with Camlock bolt
• Steel design
• Machined on the machine side
• Faced on the chuck side
• Other taper and chuck sizes available on request

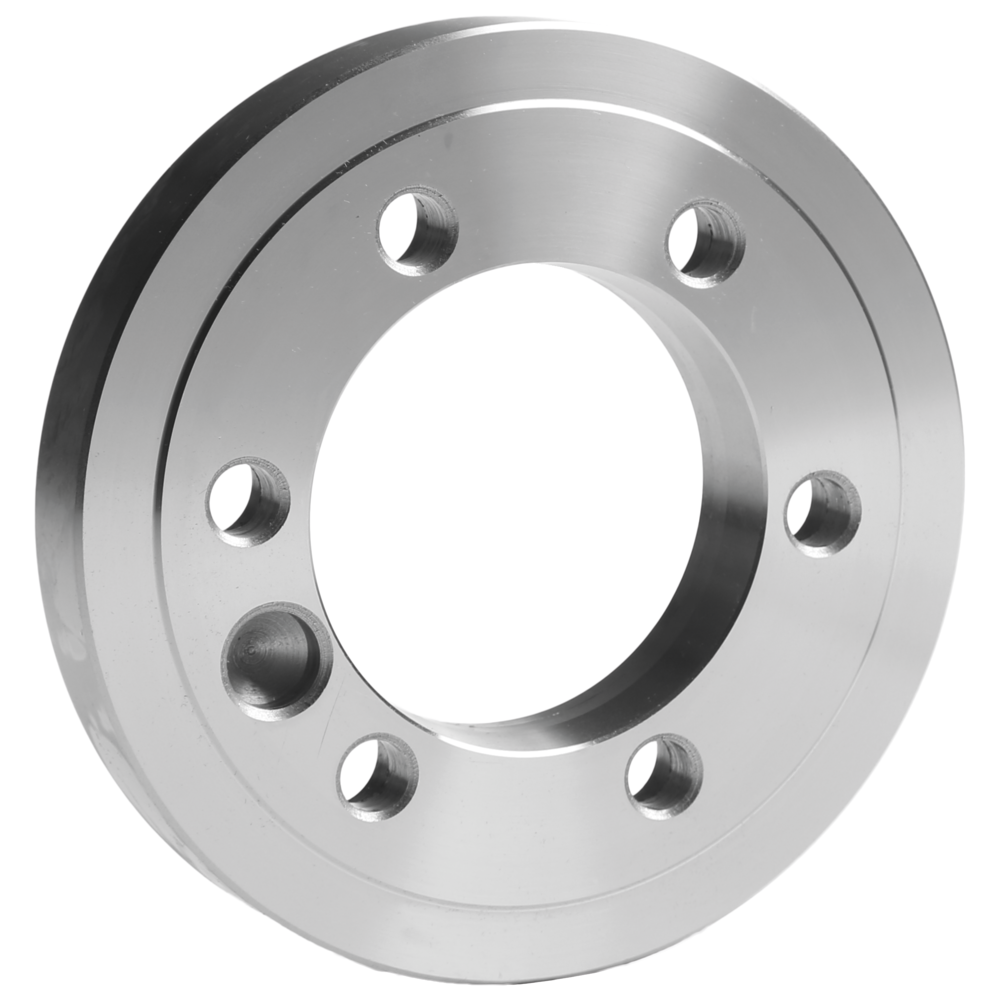

DIN 55026

• Short taper holder machined in accordance with DIN 55026 (A2)
• Faced on the chuck side
• Without attachment screws
