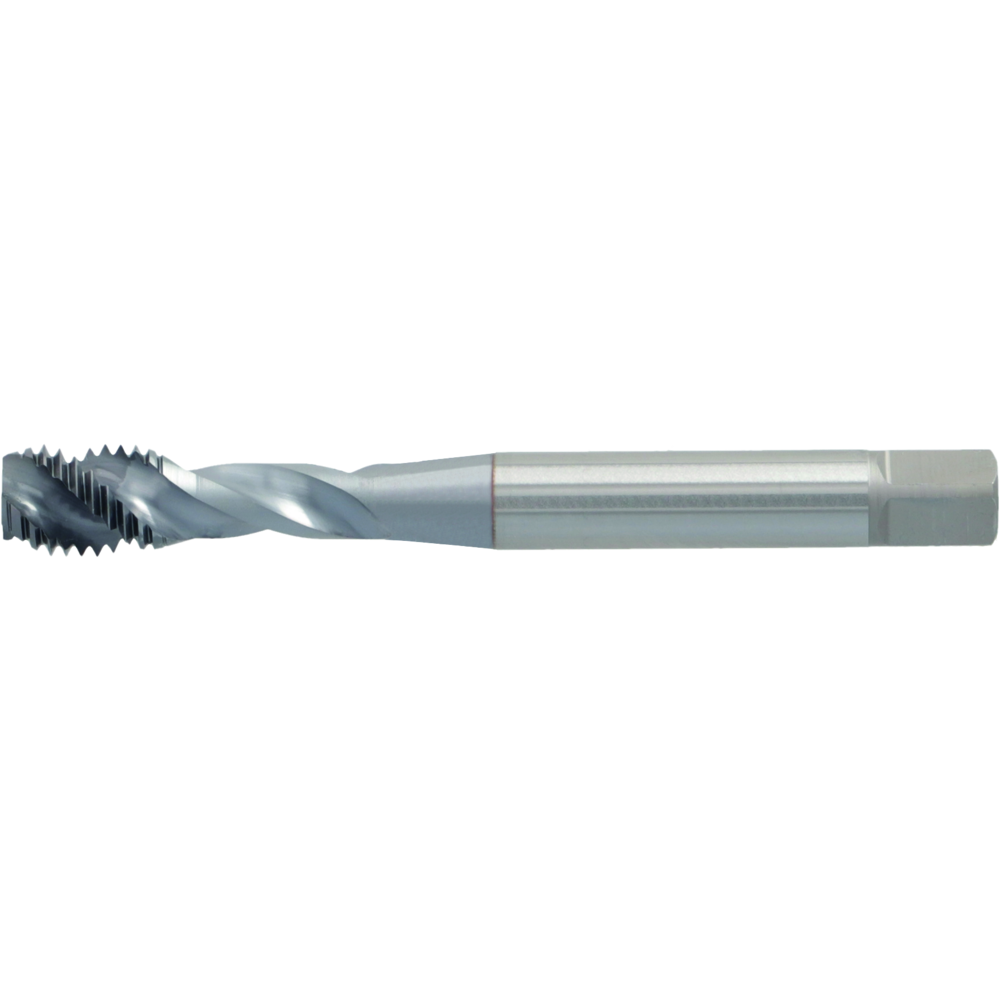

Maschinen-Gewindebohrer M 1 DIN371/C 4HX HSSE-PM Grundloch UNI TICN

Maschinen-Gewindebohrer M 1 DIN371/C 4HX HSSE-PM Grundloch UNI TICN
Maschinen-Gewindebohrer M 1 DIN371/C 4HX HSSE-PM Grundloch UNI TICN
Sale price
26,60 €
(42,90 € catalogue price / 38% saved)
valid until: 01.03.2026
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Universal thread tap
  • ISO metric thread
  • Form C, 2-3 thread chamfer, for blind-hole thread
  • Constructional dimensions DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

DIN 376 / 371
Article no./ATORN no.
1320090010 / 12280833
Packaging unit
1
Catalogue page
KS-0227
Cutting values
KS-0227

Technical characteristics

C 2,1
Coolant supply External
Cutting material HSSE-PM
D1 2,5 mm
Design 6HX
DIN 371/376
Form/Chamfer C
L 40 mm
L1 5 mm
L2 - mm
Nominal diameter M 1 mm
Pitch 0,25 mm
Surface TiCN
Tapping hole Ø 0,75 mm
Thread M
Thread angle 60° thread angle °
Tolerance of screw taps 6HX

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
