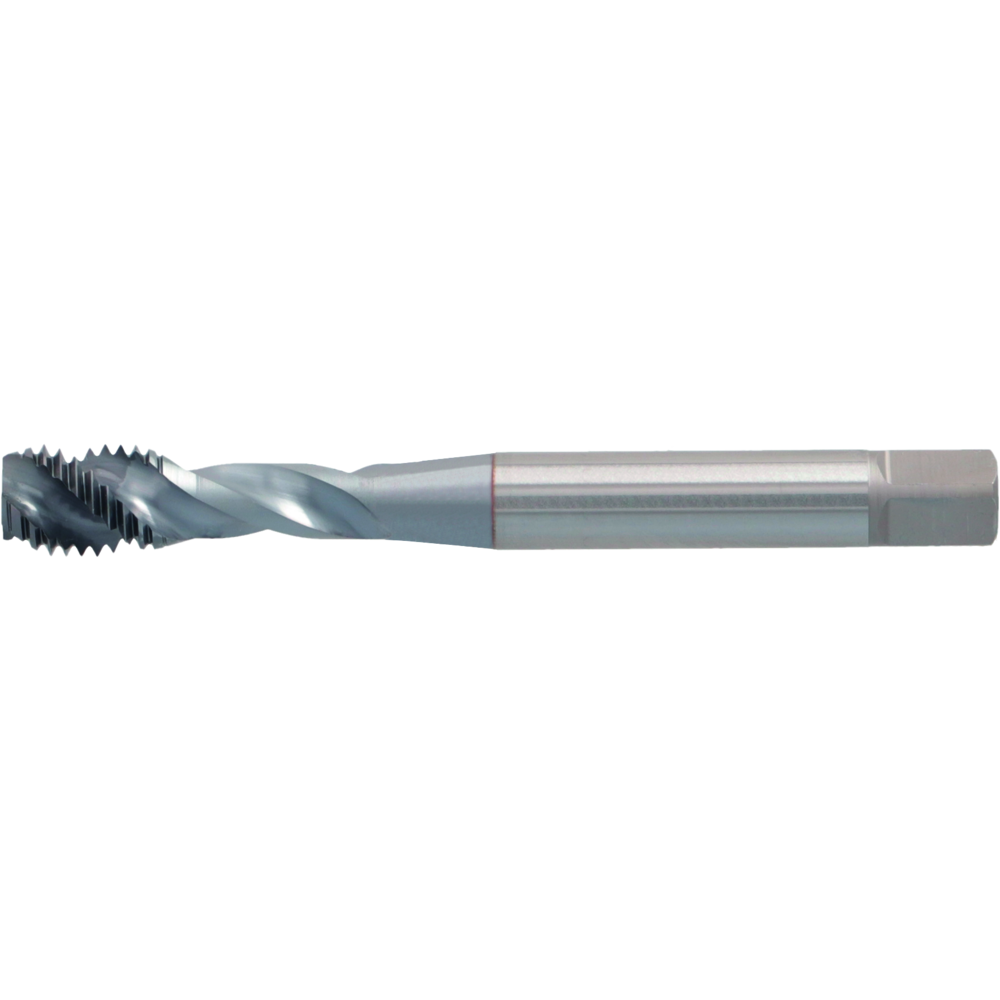

Maschinen-Gewindebohrer M 2 DIN371/E 6HX HSSE-PM Grundloch UNI TICN

Maschinen-Gewindebohrer M 2 DIN371/E 6HX HSSE-PM Grundloch UNI TICN
Maschinen-Gewindebohrer M 2 DIN371/E 6HX HSSE-PM Grundloch UNI TICN
Price
33,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Universal thread tap
  • ISO metric thread
  • Form C, 2-3 thread chamfer, for blind-hole thread
  • Constructional dimensions DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

Form E short chamfer
Article no./ATORN no.
1320110020 / 12280869
Packaging unit
1
Catalogue page
KS-0228
Cutting values
SW-0227

Technical characteristics

C 2,1
Coolant supply External
Cutting material HSSE-PM
D1 2,8 mm
Design 6HX
DIN 371/376
Form/Chamfer E
L 45 mm
L1 3 mm
L2 10 mm
Nominal diameter M 2 mm
Pitch 0,4 mm
Surface TiCN
Tapping hole Ø 1,6 mm
Thread M
Thread angle 60° thread angle °

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
