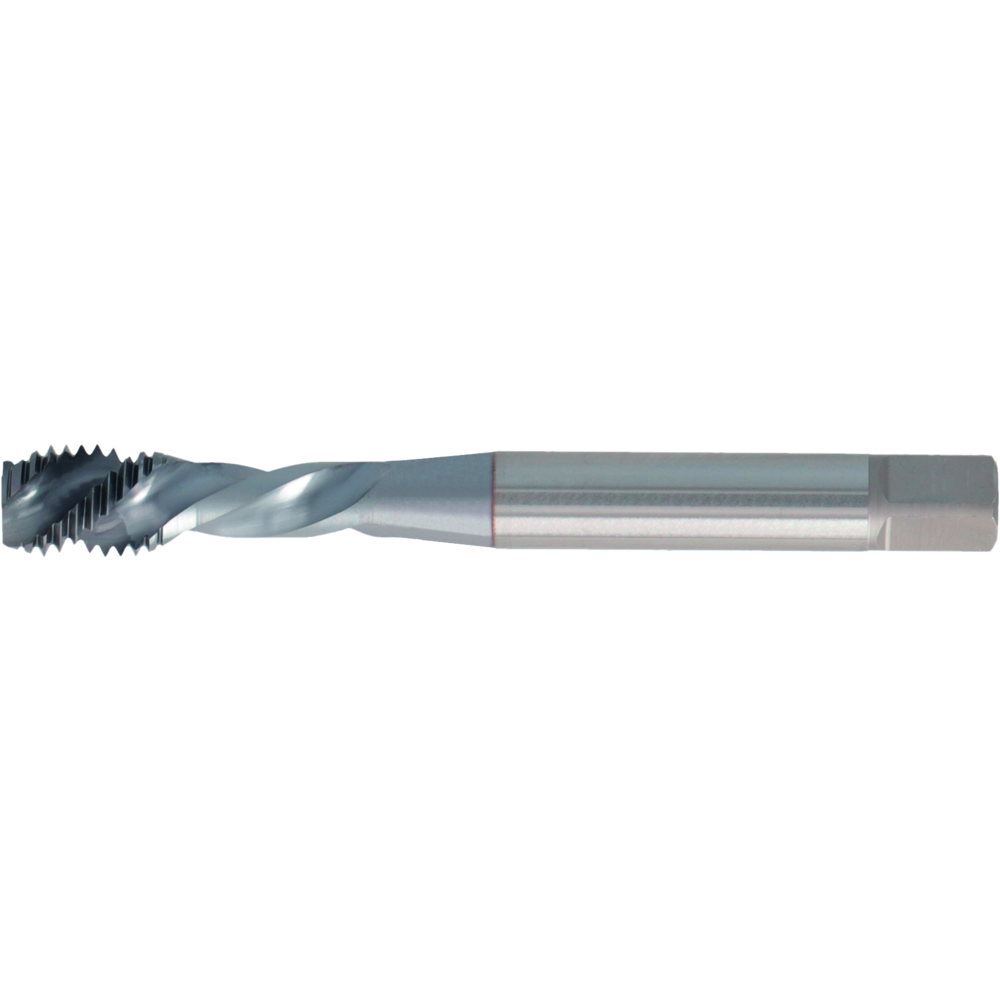

Maschinen-Gewindebohrer M 3 DIN371/C 6HX HSSE-PM Grundloch LH UNI TICN

Maschinen-Gewindebohrer M 3 DIN371/C 6HX HSSE-PM Grundloch LH UNI TICN
Maschinen-Gewindebohrer M 3 DIN371/C 6HX HSSE-PM Grundloch LH UNI TICN
Price
40,70 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Universal thread tap
  • ISO metric thread
  • Form C, 2-3 thread chamfer, for blind-hole thread
  • Constructional dimensions DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

left-cutting LH
Article no./ATORN no.
1320170030 / 12280925
Packaging unit
1
Catalogue page
KS-0228
Cutting values
SW-0227

Technical characteristics

C 2,7
Coolant supply External
Cutting material HSSE-PM
D1 3,5 mm
Design 6HX
DIN 371/376
Form/Chamfer C
L 56 mm
L1 5 mm
L2 18 mm
Nominal diameter M3 mm
Pitch 0,5 mm
Surface TiCN
Tapping hole Ø 2,5 mm
Thread M
Thread angle 60° thread angle °
Tolerance of screw taps 6HX
Twist angle 45°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
