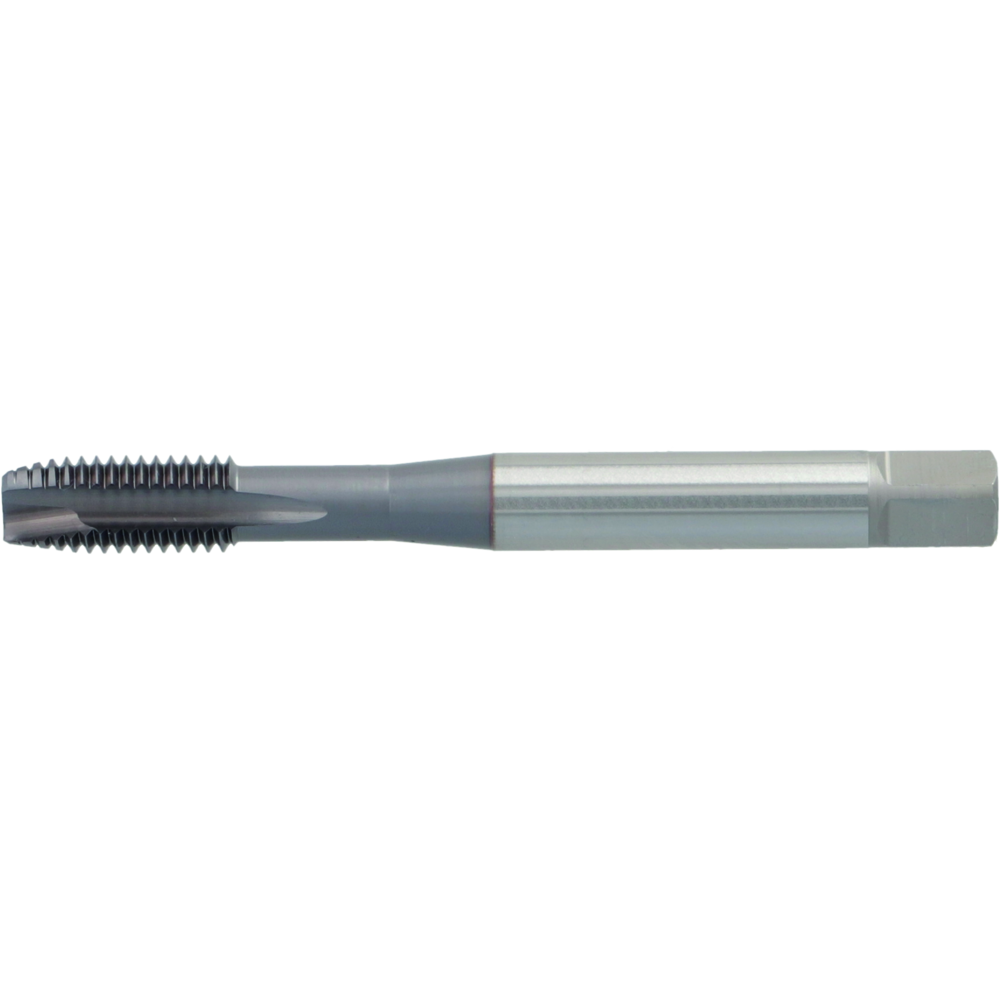

Maschinen-Gewindebohrer M 3 DIN371/B 6H+0,1 HSSE-PM Durchgang UNI TICN

Maschinen-Gewindebohrer M 3 DIN371/B 6H+0,1 HSSE-PM Durchgang UNI TICN
Maschinen-Gewindebohrer M 3 DIN371/B 6H+0,1 HSSE-PM Durchgang UNI TICN
Price
26,80 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Universal thread tap
  • ISO metric thread
  • Form B, 3.5-5 thread chamfer, for through-hole thread
  • Constructional dimensions DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material HSS-E-PM
  • Possible thread depth 3 x D
  • For universal application

Oversize cut 6GX / 7GX / 6H+0.1
Article no./ATORN no.
1320050030 / 12280799
Packaging unit
1
Catalogue page
KS-0233
Cutting values
SW-0232

Technical characteristics

C 2,7
Coolant supply External
Cutting material HSSE-PM
D1 3,5 mm
Design 6H+0,1
DIN 371/376
Form/Chamfer B
L 56 mm
L1 11 mm
L2 18 mm
Nominal diameter M 3 mm
Pitch 0,5 mm
Surface TiCN
Tapping hole Ø 2,5 mm
Thread M
Thread angle 60° thread angle °
Tolerance of screw taps 6H+0,1
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
