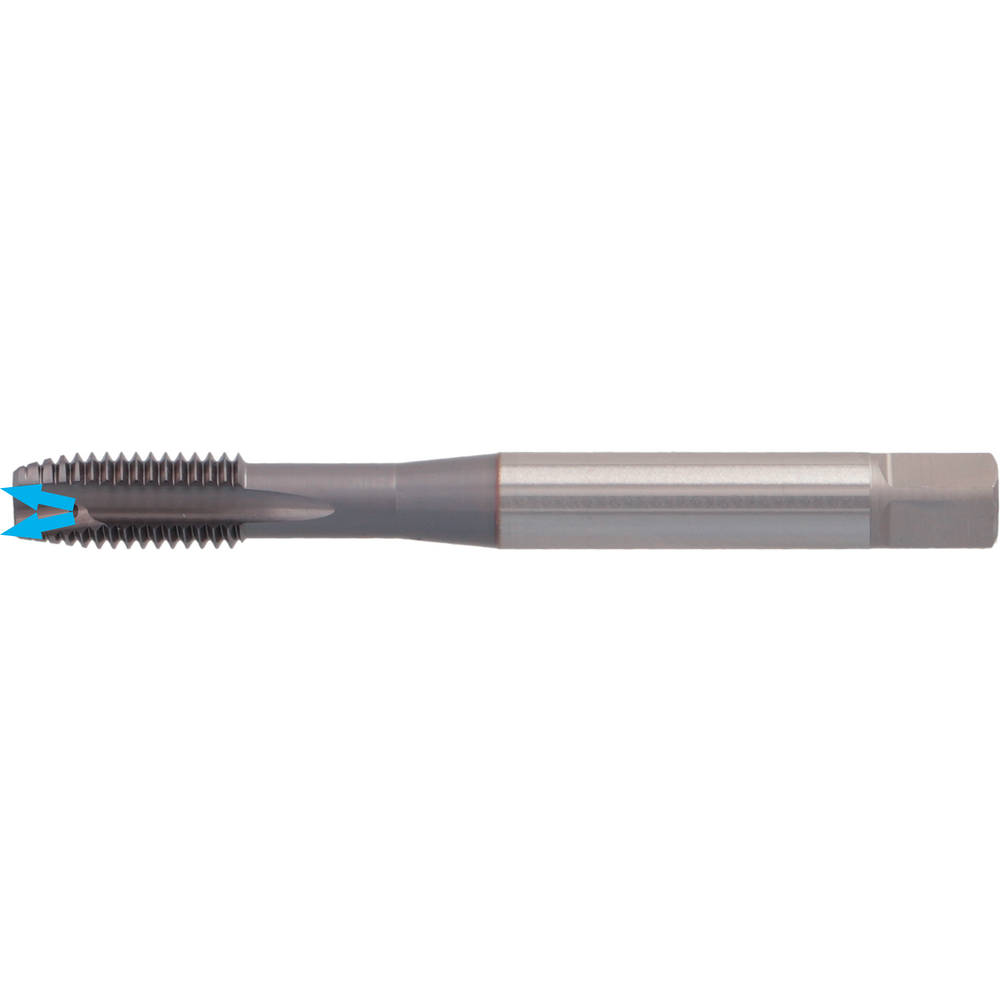

MGB M 6 DIN371/B 6HX HSSE-PM Durchgang UNI TICN IKR

Price
51,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available

Ordered by 18:00 - delivered tomorrow.

Article no./ATORN no.
1320360060 / 12281163
Packaging unit
1
Catalogue page

Technical characteristics

C 4,9
Coolant supply Internal
Cutting material HSSE-PM
D1 6 mm
Design 6HX
DIN 371/376
Form/Chamfer B
L 80 mm
L1 19 mm
L2 30 mm
Nominal diameter M 6 mm
Pitch 1 mm
Surface TiCN
Tapping hole Ø 5 mm
Thread M
Thread angle 60° thread angle °
Threaded hole type Clearance hole ≤ 3xD
Tolerance of screw taps 6HX

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
