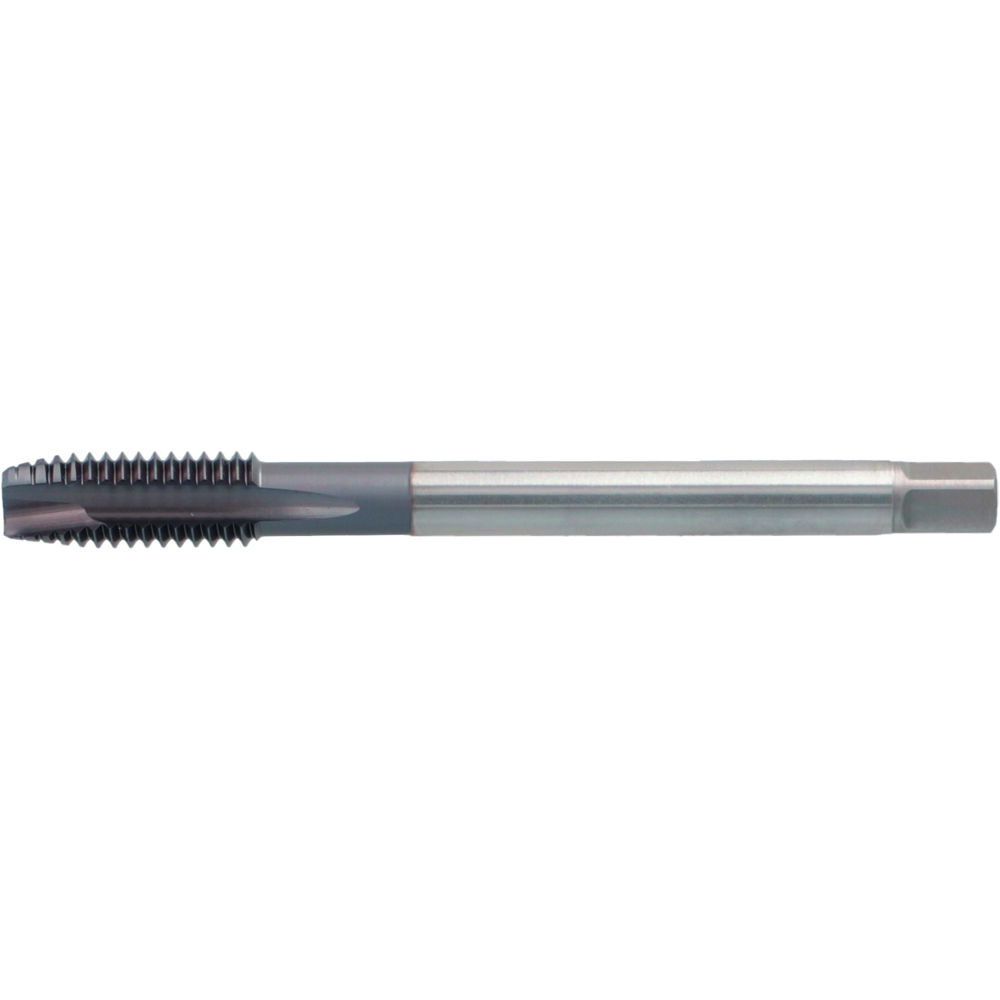

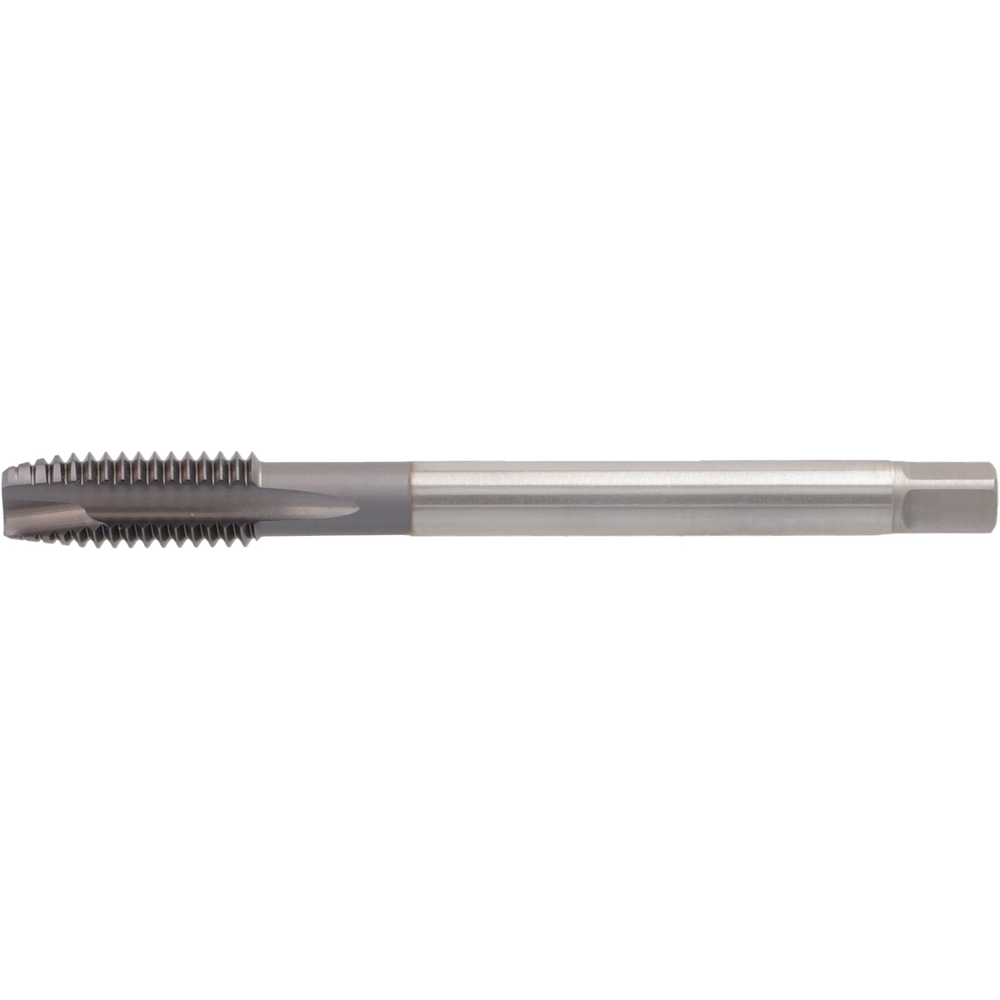

MGB M 3 DIN376/B 6HX HSSE-PM Durchgang UNI TICN

Price
32,30 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available

Ordered by 18:00 - delivered tomorrow.

Article no./ATORN no.
1320020030 / 12280772
Packaging unit
1
Catalogue page

Technical characteristics

Coolant supply External
Cutting material HSSE-PM
D1 2,2 mm
Design 6HX
DIN 371/376
Form/Chamfer B
L 56 mm
L1 11 mm
Nominal diameter M 3 mm
Pitch 0,5 mm
Surface TiCN
Tapping hole Ø 2,5 mm
Thread M
Thread angle 60° thread angle °
Tolerance of screw taps 6HX

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
