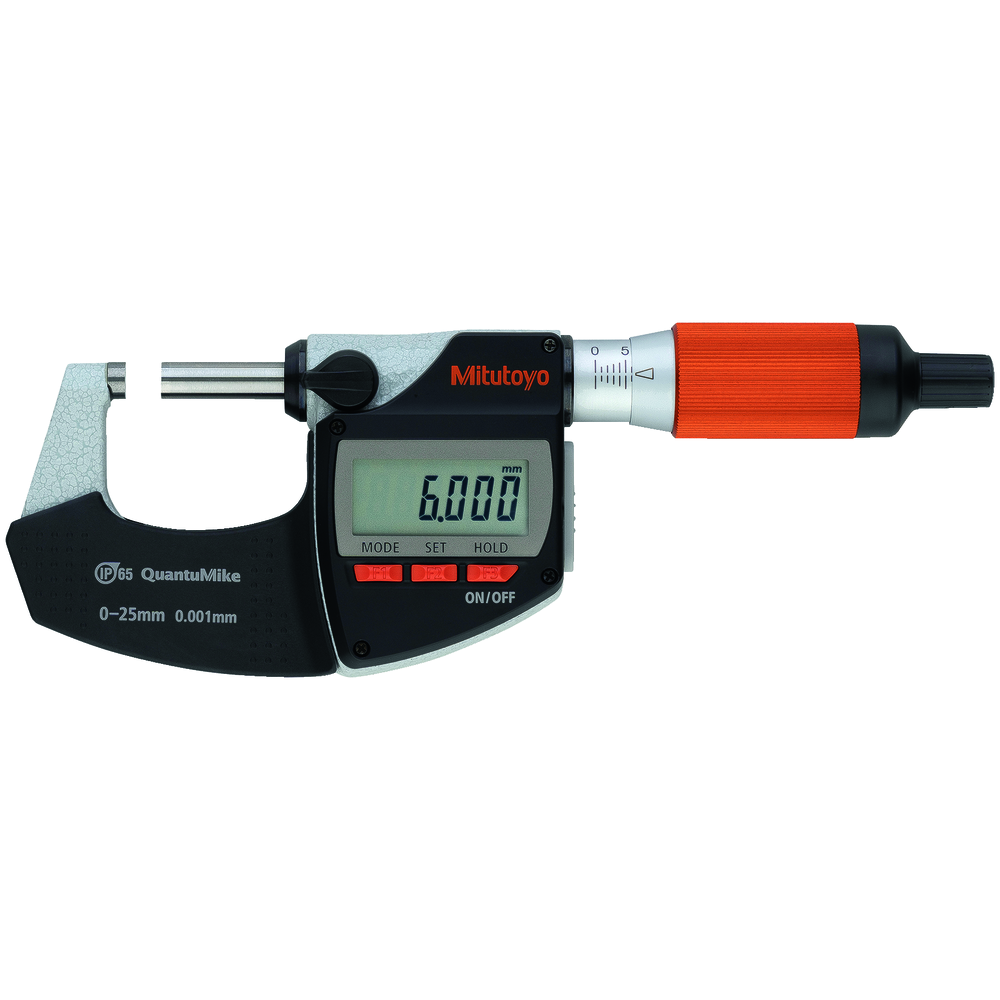

Digital outside micrometer QuantuMike

• Outside micrometer with 2 mm spindle pitch
• The ratchet mechanism and slim design ensure easy operation with one hand or using a stand
• Bidirectional communication e.g. for configuration on PC (Digimatic S1 interface)
• LCD display with 7.5 mm digits
• Equipped with warning function for approach speed and calibration plan
• GO/±NG evaluation by fixing the upper and lower tolerances
• Function lock to protect original values
• Automatic switch-off after 20 minutes without use
• Accuracy in accordance with EN ISO 3611 J_MPE ± 1 µm (Model 0-25, 25-50 mm)
• Calibration including setting gauge
• Function: initial value (ORIGIN), hold value/data transmission (HOLD/DATA), ON/OFF
• Supplied with CR 2032 battery no. 548079 6032, 0-25 and 25-50 mm with factory certificate, adjusting spanner, over 25 mm with setting gauge
• Special accessories: Digimatic cable Type I no. 563100 0081 (1 m), no. 563100 0082 (2 m)
