Smoothing tool SET 510 / 520

• The Zeus smoothing tool is an all-rounder in all conventional surface-smoothing operations.
• Whether on straight, conical or concave surfaces
• Planar sides can also be machined.
• Not suitable for interrupted cutting.

2nd generation

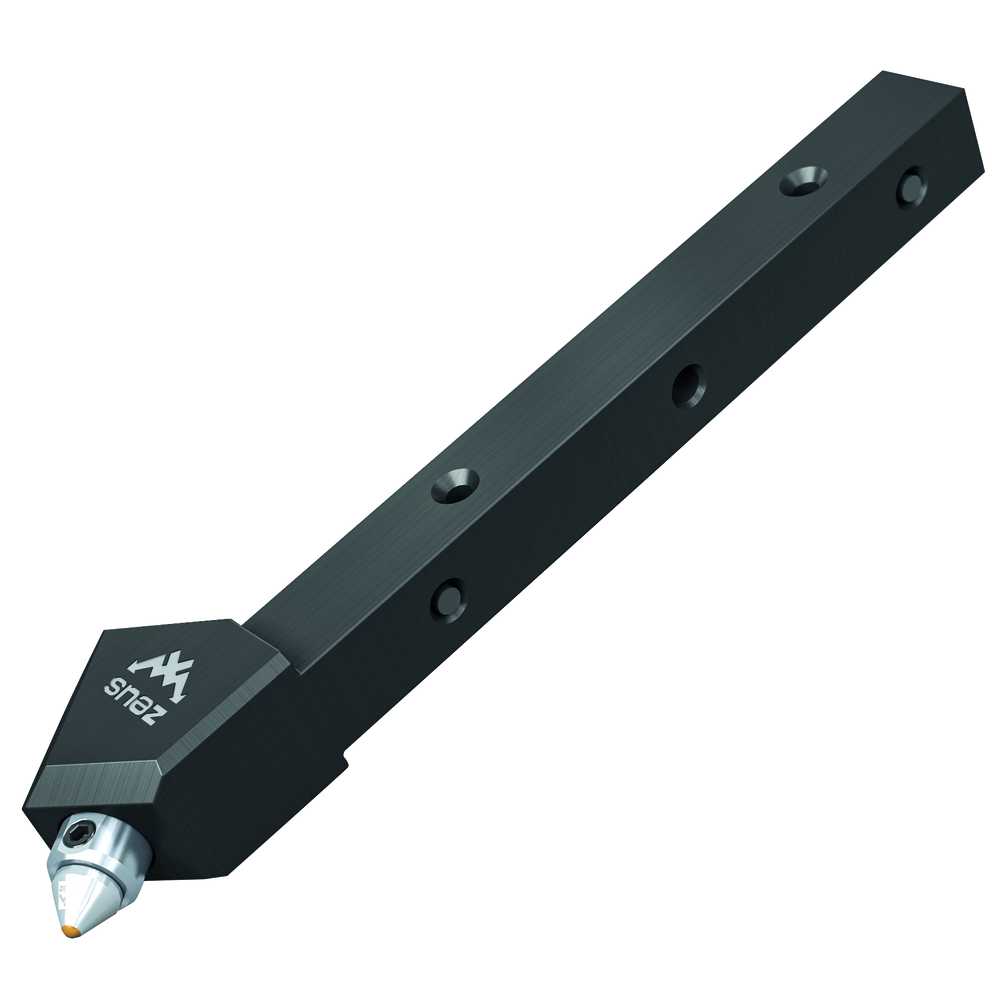

Smoothing tool holder SET 510

• Properties
  - Fixed tool head
  - Supplied without smoothing tips
  - Entry-level model for simple smoothing applications
  - For smoothing shafts with cylindrical surfaces
• Recommendation
  - Smoothing speed up to 200 m/min
  - Feed rate up to 0.2 mm/rev
  - Workpiece oversize of 0.01 mm (∼RZ 10) and 0.02 mm (∼RZ 20)
  - Cooling lubricant is recommended
• Tool holder SET 510-10U-35° including shank adapters 12x12 mm and 16x16 mm
• Tool holder SET 510-10U-45° including shank adapter 12x12 mm and 16x16mm
