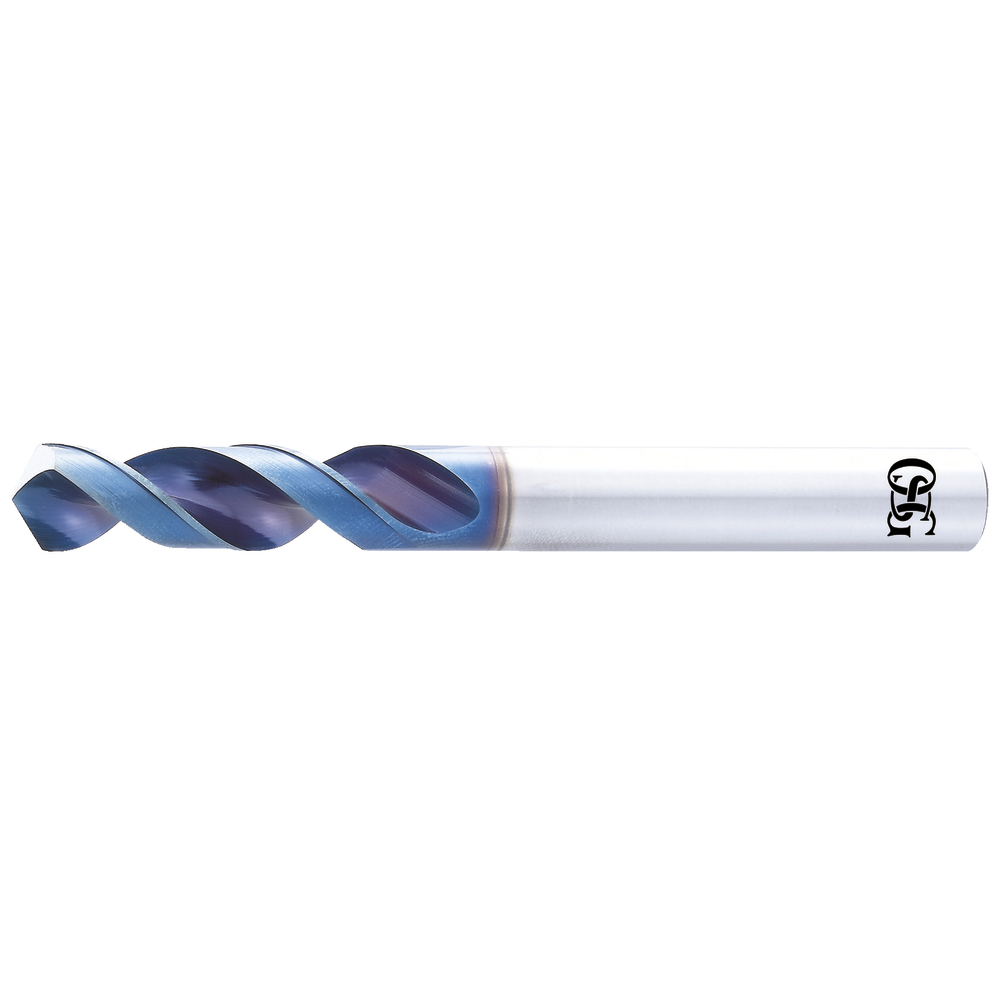

NEXUS-GDS high-performance drill HSS-E-V3 3xD 1mm WDI™-coated

NEXUS-GDS high-performance drill HSS-E-V3 3xD 1mm WDI™-coated
NEXUS-GDS high-performance drill HSS-E-V3 3xD 1mm WDI™-coated NEXUS-GDS high-performance drill HSS-E-V3 3xD 1mm WDI™-coated
Price:
16,25 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
NEXUS-GDS twist drill
  • High spiral angle (35 - 40°) and unique flute shape reduce the cutting forces and the heat generated during machining
  • Short breakage chips even with tough materials such as stainless steel or copper
  • Shank design: straight
  • S°= point angle: < Ø 2 mm = 140°, < Ø 4 mm = 130°, > Ø 4 mm = 120°
  • Cutting material: high-quality vanadium alloy HSS, WDI™-coated
  • Wear-resistant, suitable for a broad range of materials thanks to multi-layer coating

NEXUS-GDS twist drill
  • High spiral angle (35 - 40°) and unique flute shape reduce the cutting forces and the heat generated during machining
  • Short breakage chips even with tough materials such as stainless steel or copper
  • Shank design: straight
  • S°= point angle: < Ø 2 mm = 140°, < Ø 4 mm = 130°, > Ø 4 mm = 120°
  • Cutting material: high-quality vanadium alloy HSS, WDI™-coated
  • Wear-resistant, suitable for a broad range of materials thanks to multi-layer coating

Article no./ATORN no.
1140460100
Vendor Article no.
8650100
Packaging unit
1
Catalogue page

Technical characteristics

Angle of the tip - S 140 °
Coating TiAlN
Coating TiAlN
Coolant design Without coolant supply
Coolant supply Nein
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D 1,00 mm
D h8 1,00 mm
D1 3 mm
D1 3 mm
DIN ohne DIN
Drilling depth 3xD
Feed f steel < 700 N/mm² 0,03 mm/rev
Feed f steel < 700 N/mm² 0,03 mm/rev
L 38 mm
L 38 mm
L1 6 mm
L1 6 mm
Max. drilling depth (D) 3xD
Point angle Point angle 140°
S 140 °
Section shape Split point
Section shape Split point
Shank Straight
Spiral angle 35°-40° RH helix angle
Spiral angle 35°-40° RH helix angle
Standard constructional dimensions DIN Non-DIN
Tool holding device Zylinderschaft
Twist angle 37° | 40°
Type Type VA
Type Typ VA

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
