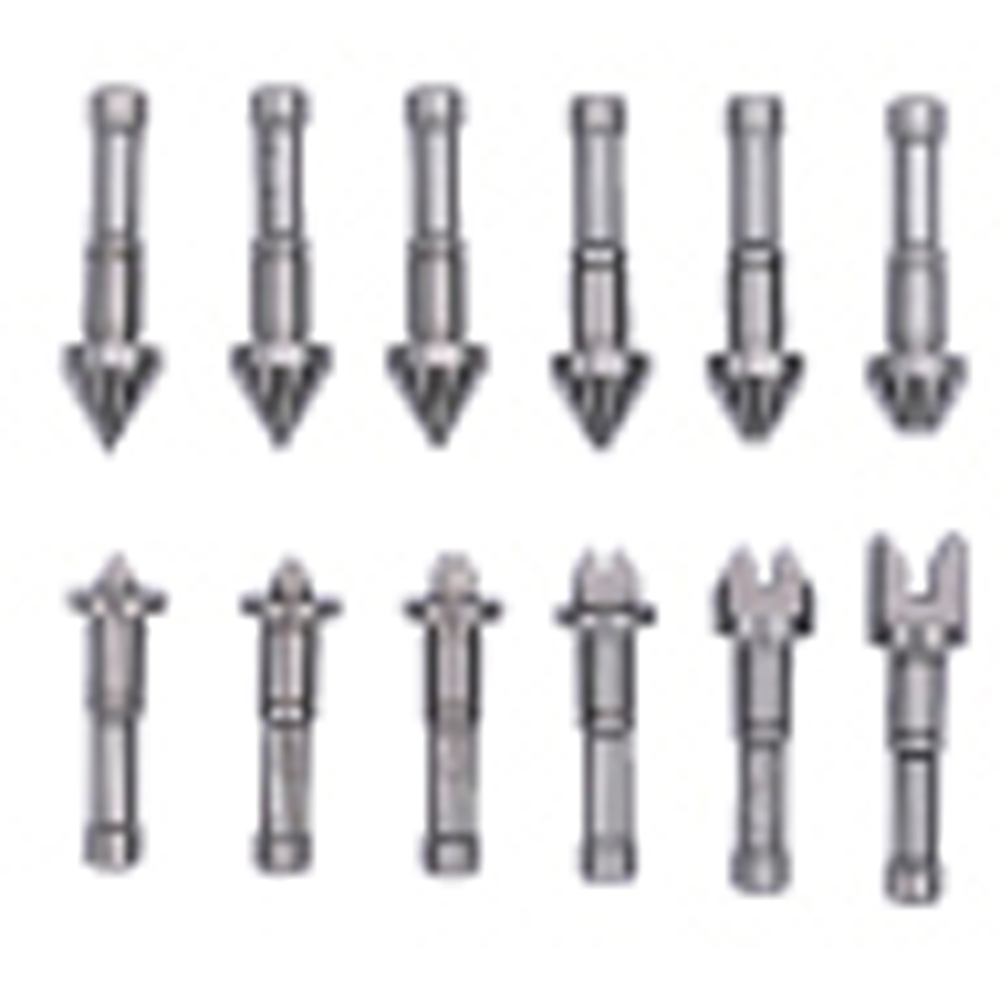

Measuring inserts 60°, lead 0,4-7,0mm (metric), 64-3,5 thread/inch (UNF), 6-pcs.

Measuring inserts 60°, lead 0,4-7,0mm (metric), 64-3,5 thread/inch (UNF), 6-pcs.
Measuring inserts 60°, lead 0,4-7,0mm (metric), 64-3,5 thread/inch (UNF), 6-pcs.
Price:
405,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Special-purpose outside micrometers for testing external threads
  • Type D18, with locating bores for optional thread inserts
  • For measuring pitch diameters on external threads
  • Painted steel frame with hand protection, spindle fixed by means of a locking lever
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Measuring inserts not included

Measuring insert sets, 55° and 60°
  • 504009.... 60° thread angle
  • 504011.... 55° thread angle

Special-purpose outside micrometers for testing external threads
  • Type D18, with locating bores for optional thread inserts
  • For measuring pitch diameters on external threads
  • Painted steel frame with hand protection, spindle fixed by means of a locking lever
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Measuring inserts not included

Measuring insert sets, 55° and 60°
  • 504009.... 60° thread angle
  • 504011.... 55° thread angle

Article no./ATORN no.
5040090020
Vendor Article no.
126-800
Packaging unit
1
Catalogue page
KS-1377

Technical characteristics

Contents 5040090001 to 5040090006
Contents Gewindemesseinsätze 60° 5040090001 bis 5040090006
Thread angle 60° thread angle °
Thread angle 60° thread angle °
