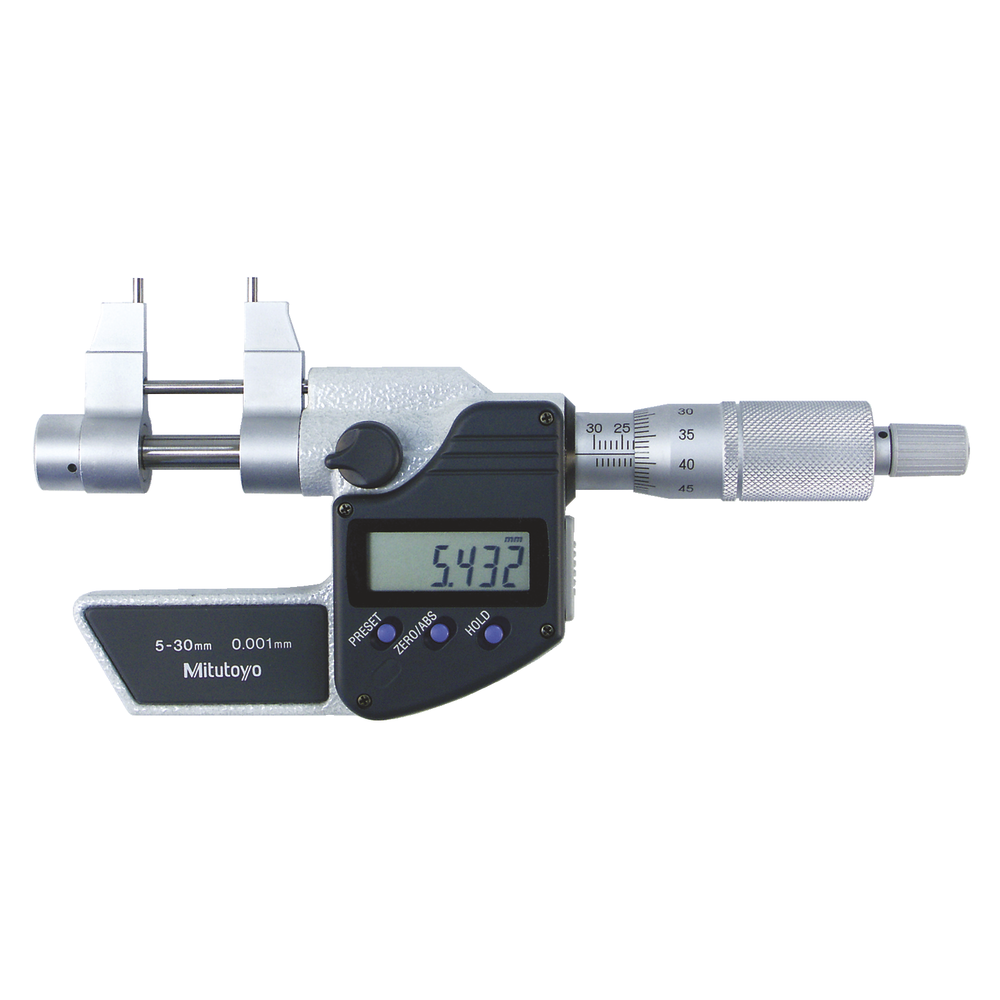

Inside micrometer digital 5-30mm (0,001mm) with pin gauges

Inside micrometer digital 5-30mm (0,001mm) with pin gauges
Inside micrometer digital 5-30mm (0,001mm) with pin gauges Inside micrometer digital 5-30mm (0,001mm) with pin gauges
Price:
897,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Digital inside micrometer with jaws
  • Precision design with ratchet
  • Spindle fixed via a clamping screw
  • Carbide-tipped measuring faces, precision machined
  • Extremely easy to read via LCD display with 6.6 mm high digits
  • Activates automatically when spindle moves
  • Scale barrel Ø: 18 mm
  • Functions: Pre-set (PRESET), zeroing/absolute (ZERO/ABS), hold value (HOLD)
    Automatic switch-off, battery check
  • Supplied with adjustment key and SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Digital inside micrometer with jaws
  • Precision design with ratchet
  • Spindle fixed via a clamping screw
  • Carbide-tipped measuring faces, precision machined
  • Extremely easy to read via LCD display with 6.6 mm high digits
  • Activates automatically when spindle moves
  • Scale barrel Ø: 18 mm
  • Functions: Pre-set (PRESET), zeroing/absolute (ZERO/ABS), hold value (HOLD)
    Automatic switch-off, battery check
  • Supplied with adjustment key and SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Article no./ATORN no.
5064020030
Vendor Article no.
345-250-30
Packaging unit
1
Catalogue page
KS-1383

Technical characteristics

Data transmission type DIGIMATIC/USB
Digit increment 0,001 mm
DIN ohne DIN
Display Digital
Error limit 5 µm
Error limit 0,005 mm
Included in delivery Sturdy box
Measurement chuck Spindle pitch 0.5 mm
Measurement range 5-30 mm
Measurement range 5-30 mm
Measuring spindle increments 0,5 mm
Output data format Digimatic
Packaging / Shipment Sturdy box
Reading 0.001 mm readings
Standard constructional dimensions DIN Non-DIN
