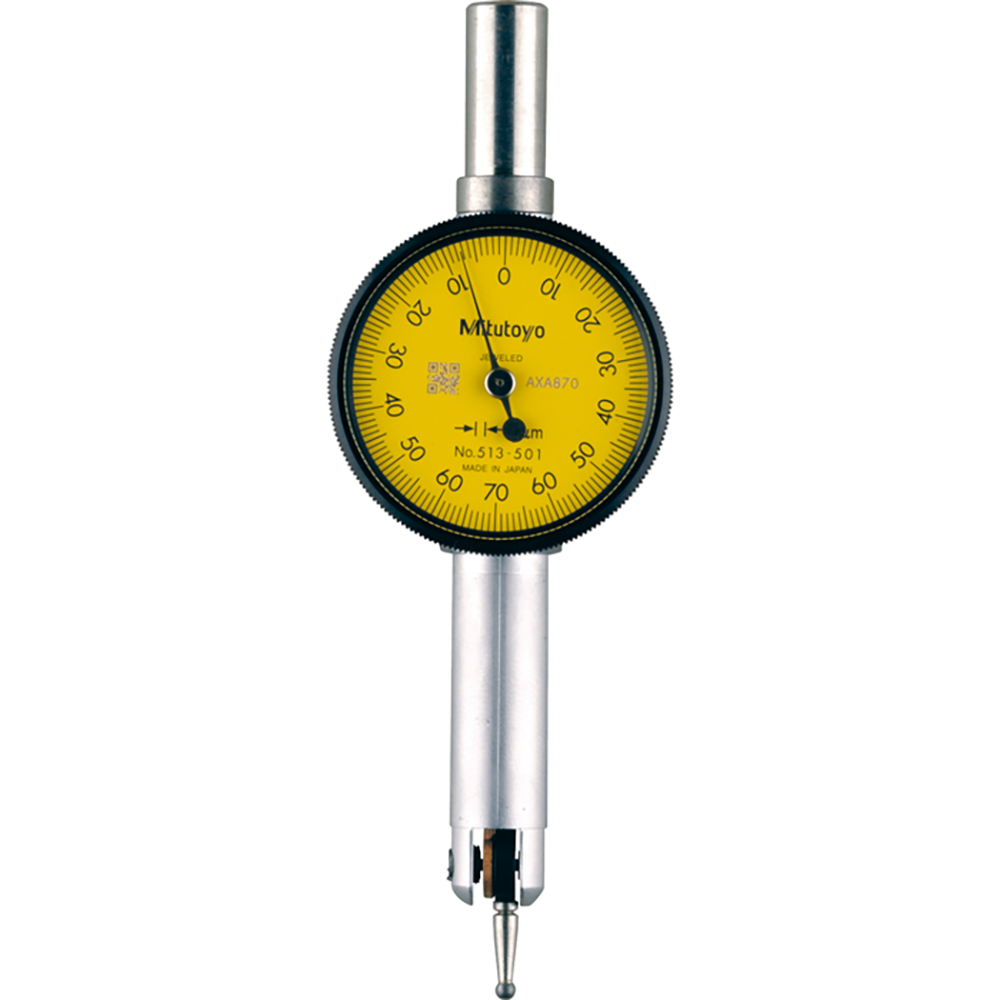

Fühlhebelmessgerät 0,14mm (0,001mm) Skala 0-70-0, Außenring-ø 33mm

Fühlhebelmessgerät 0,14mm (0,001mm) Skala 0-70-0, Außenring-ø 33mm
Fühlhebelmessgerät 0,14mm (0,001mm) Skala 0-70-0, Außenring-ø 33mm Fühlhebelmessgerät 0,14mm (0,001mm) Skala 0-70-0, Außenring-ø 33mm Fühlhebelmessgerät 0,14mm (0,001mm) Skala 0-70-0, Außenring-ø 33mm
Price:
222,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Miniature version
  • With switching lever to change the measuring direction

Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Miniature version
  • With switching lever to change the measuring direction

Article no./ATORN no.
5255010004
Vendor Article no.
513-501-10E
Packaging unit
1
Catalogue page

Technical characteristics

Accuracy fe 3 µm
DIN 2270
Display Analogue
Error limit 0,003 mm
External ring Ø 33 mm
Included in delivery Sturdy box + Manufacturer’s test certificate
Length of measuring sensor from centre of ball 8,6 mm
Measurement range 0,14 mm
Outer diameter 29,5 mm
Packaging / Shipment Sturdy box
Reading 0,001 mm
Scale 0-70-0
Scale value 0,001 mm
Sensor tip length 12,0 mm
Standard constructional dimensions DIN DIN 2270
