Innenmessschraube 40-300mm (0,01mm) mit 8 Verlängerungen

Innenmessschraube 40-300mm (0,01mm) mit 8 Verlängerungen
Innenmessschraube 40-300mm (0,01mm) mit 8 Verlängerungen Innenmessschraube 40-300mm (0,01mm) mit 8 Verlängerungen
Price:
405,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*

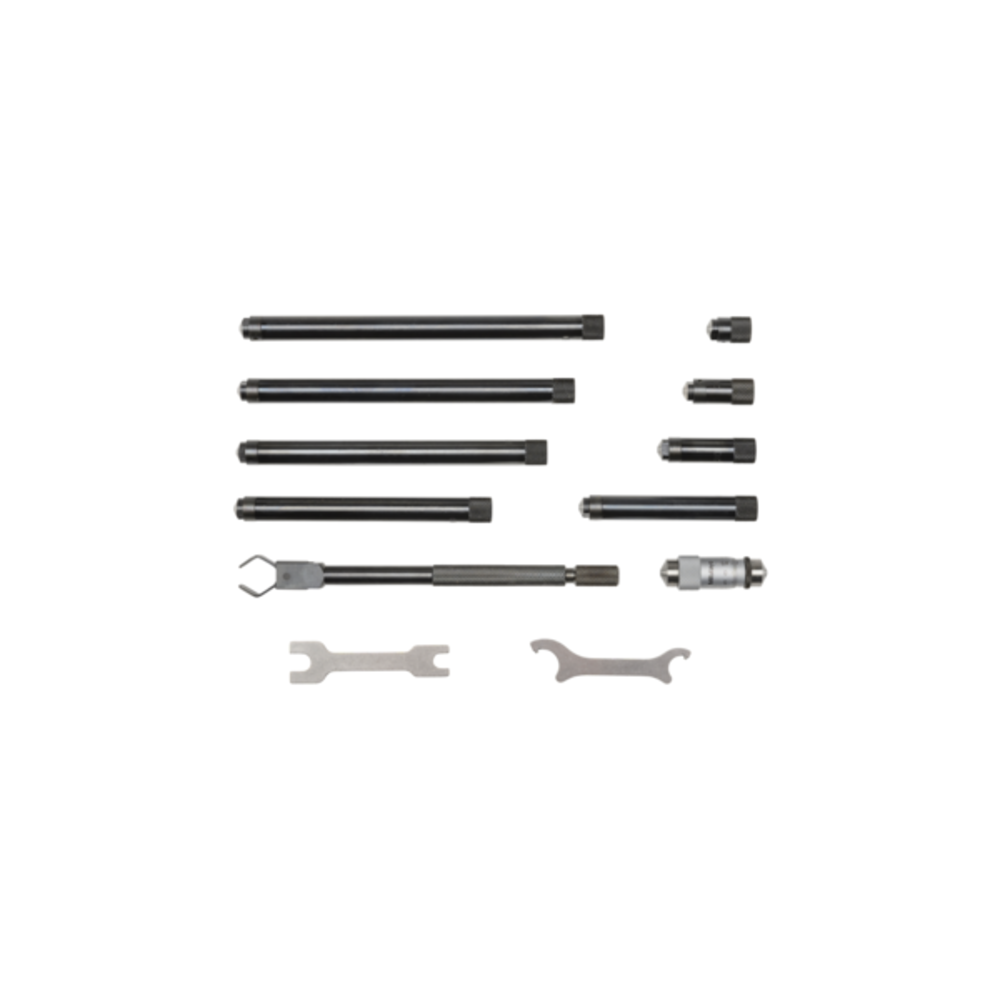

Inside micrometer set
  • Modular design
  • Screwing on the graduated extensions makes it possible to measure all dimensions within the specified ranges
  • Calibration includes extensions
  • Supplied with adjustment key

Carbide-tipped measuring faces
  • Tubular extensions can be used individually as material measures
  • Micrometer measurement range 25 mm
  • Micrometer fixed by means of clamping screws
  • Reading parts chrome-plated
  • Scale barrel Ø: 18 mm
  • Tubular Ø of extensions: 17 mm
  • Error margin: (3+V+L/50) µm, L in mm, V = number of extensions

Inside micrometer set
  • Modular design
  • Screwing on the graduated extensions makes it possible to measure all dimensions within the specified ranges
  • Calibration includes extensions
  • Supplied with adjustment key

Carbide-tipped measuring faces
  • Tubular extensions can be used individually as material measures
  • Micrometer measurement range 25 mm
  • Micrometer fixed by means of clamping screws
  • Reading parts chrome-plated
  • Scale barrel Ø: 18 mm
  • Tubular Ø of extensions: 17 mm
  • Error margin: (3+V+L/50) µm, L in mm, V = number of extensions

Article no./ATORN no.
5067030300
Vendor Article no.
139-203
Packaging unit
1
Catalogue page

Technical characteristics

DIN 863/4
Display Analogue
Extensions 10, 20, 30, 60, 90, 110, 120, 130 mm
Extensions provided 10, 20, 30, 60, 90, 110, 120, 130 mm
Included in delivery Sturdy box
Measurement chuck Spindle pitch 0.5 mm
Measurement range 40-300 mm
Measurement range 40-300 mm
Measuring spindle increments 0,5 mm
Packaging / Shipment Sturdy box
Reading 0.01 mm readings
Standard constructional dimensions DIN DIN 863/4
Vernier 0,01 mm
