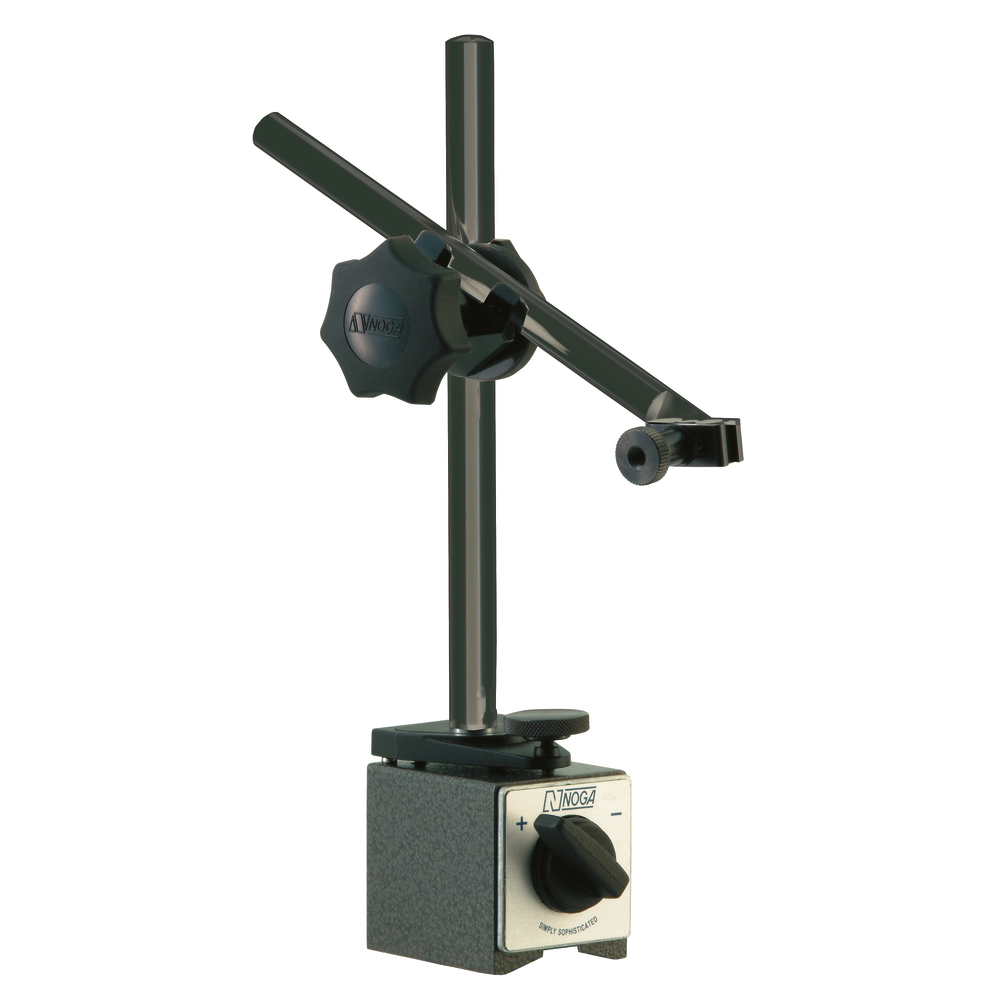

Magnetic measuring stand PH2040, 3-point clamp PH0310 + holding fixture FA1410

Magnetic measuring stand PH2040, 3-point clamp PH0310 + holding fixture FA1410
Magnetic measuring stand PH2040, 3-point clamp PH0310 + holding fixture FA1410 Magnetic measuring stand PH2040, 3-point clamp PH0310 + holding fixture FA1410 Magnetic measuring stand PH2040, 3-point clamp PH0310 + holding fixture FA1410
Price:
103,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Magnetic measuring stands PH
  • For quick and precise positioning of dial indicators
  • Improved fine adjustment on the magnetic base
  • Strong, switchable magnetic base
  • Universal holding fixture for common dial indicators
  • Robust arm mechanism with three-point system
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Fine adjustment on magnetic base
Magnetic measuring stands PH
  • For quick and precise positioning of dial indicators
  • Improved fine adjustment on the magnetic base
  • Strong, switchable magnetic base
  • Universal holding fixture for common dial indicators
  • Robust arm mechanism with three-point system
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Fine adjustment on magnetic base
Article no./ATORN no.
5501102040
Vendor Article no.
PH2040
Packaging unit
1
Catalogue page
KS-1465

Technical characteristics

Adherence strength 800N
Arm length 185 mm
D 12 mm
D1 14 mm
D2 12 mm
Foot size 60 x 50 x 55 mm
Height 203 mm
L1 203 mm
L2 185 mm
Magnetic foot L x W x H 60 x 50 x 55 mm
Magnetic foot thread M 8
model PH2040
model PH2040
Pillar diameter 14 mm
Retaining force 800 N
Thread M8
