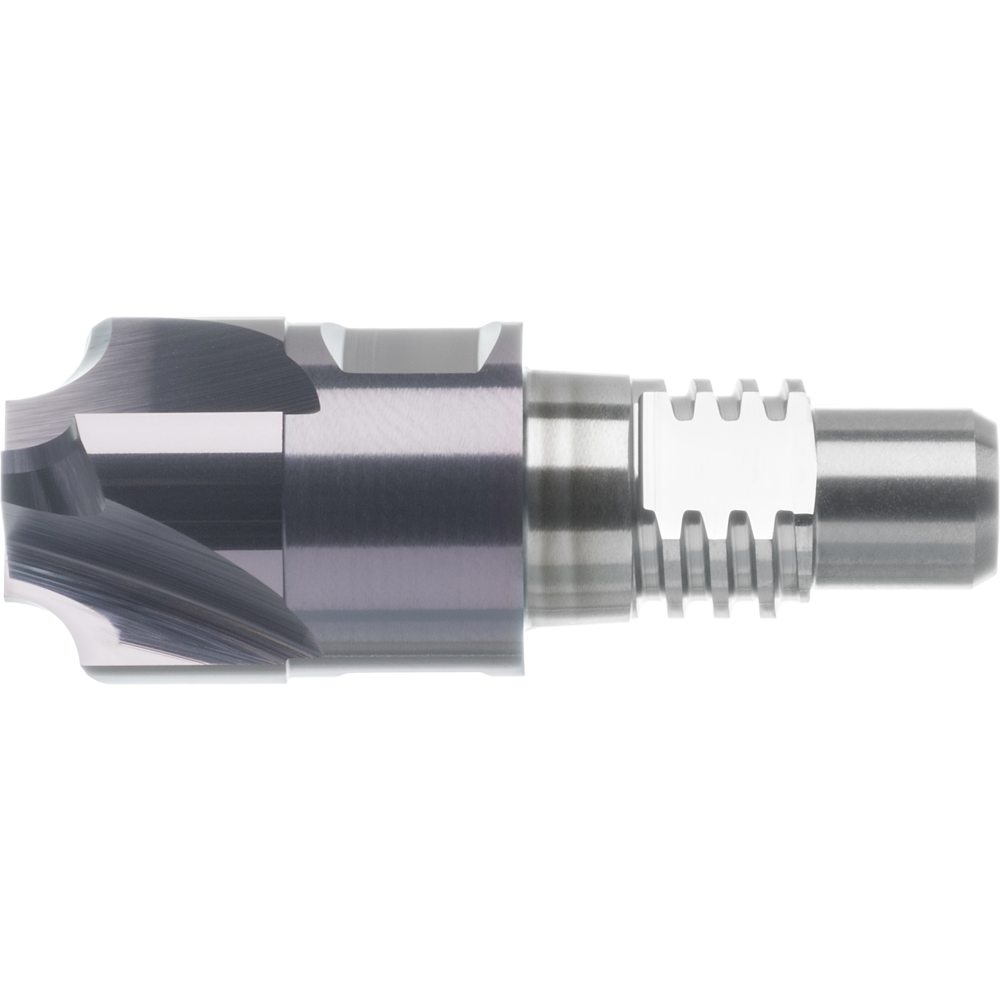

Solid carbide exchangeable head, deburr., size 20 Ø10x1.5 4S. TiAlN

Solid carbide exchangeable head, deburr., size 20 Ø10x1.5 4S. TiAlN
Solid carbide exchangeable head, deburr., size 20 Ø10x1.5 4S. TiAlN Solid carbide exchangeable head, deburr., size 20 Ø10x1.5 4S. TiAlN
Price:
74,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Exchangeable head quadrant milling cutter
Article no./ATORN no.
2556151015 / 12040427
Packaging unit
1
Catalogue page
KS-0627
Cutting values
SW-0806

Technical characteristics

Application direction milling Lining
Coating TiAlN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10 mm
D1 7 mm
Durchmesser max. 20 mm
Durchmesser min. 10 mm
Durchmesser min./max. 10-20 mm
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz steel < 1000 mm² 0,012 mm/tooth
fitness hartl total 3
fz Stahl 1000 0,05 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L1 14 mm
L2 7 mm
Länge 14 mm
R 1,5 mm
Replaceable head system WKS 20
Schneidendurchmesser max. 7 mm
Schneidendurchmesser min. 10 mm
Schneidendurchmesser min./max. 10-7 mm
Surface TiAlN
Tightening torque 12 N·m
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Twist angle 0°
Type N
Wr. width 8 x 3 mm
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
