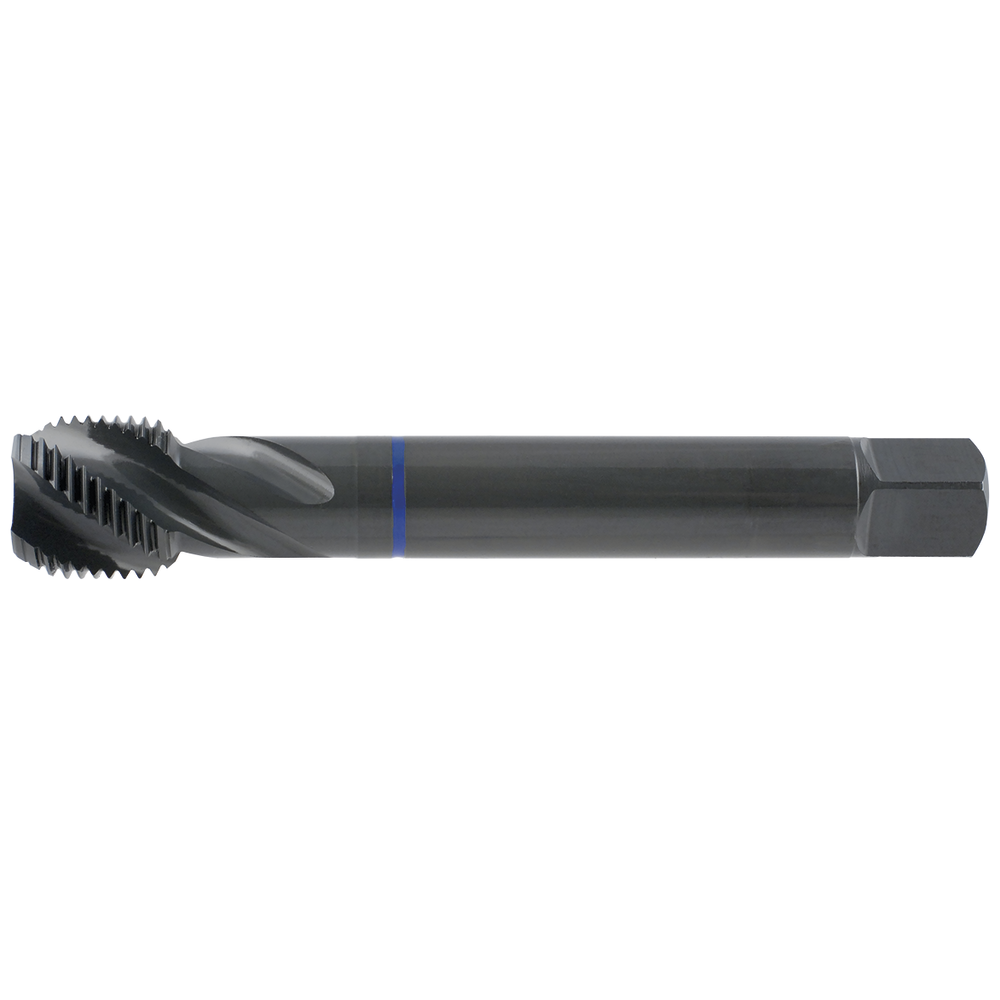

Machine tap HSS-E DIN5156C 40°, G 1/2" blind-hole thread, vapour-treated

Machine tap HSS-E DIN5156C 40°, G 1/2" blind-hole thread, vapour-treated
Machine tap HSS-E DIN5156C 40°, G 1/2" blind-hole thread, vapour-treated Machine tap HSS-E DIN5156C 40°, G 1/2" blind-hole thread, vapour-treated
Price:
115,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
For long-chipping materials

Machine tap
  • Whitworth pipe thread, 55°
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 3 x D
  • Suitable for conventional machining with quick-action chuck
  • Note: For DIN-ISO 228/1 straight pipe threads

For long-chipping materials

Machine tap
  • Whitworth pipe thread, 55°
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 3 x D
  • Suitable for conventional machining with quick-action chuck
  • Note: For DIN-ISO 228/1 straight pipe threads

Article no./ATORN no.
1353200012 / 10482351
Packaging unit
1
Catalogue page

Technical characteristics

C 12 mm
C 12 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D G 1/2"
D G 1/2"
D1 16 mm
D1 16 mm
DIN 5156
DIN 5156
Form/Chamfer C
Form/Chamfer C
L 125 mm
L 125 mm
L1 25 mm
L1 25 mm
Max. thread depth 3xD
Max. thread depth 3xD
Pitch 14 TPI
Pitch 14 TPI
Surface Vaporised
Surface Vaporised
Tapping hole Ø 19,00 mm
Tapping hole Ø 19,00 mm
Thread G
Thread G
Thread angle 55 °
Thread angle 55 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Twist angle 40°
Twist angle 40°

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
