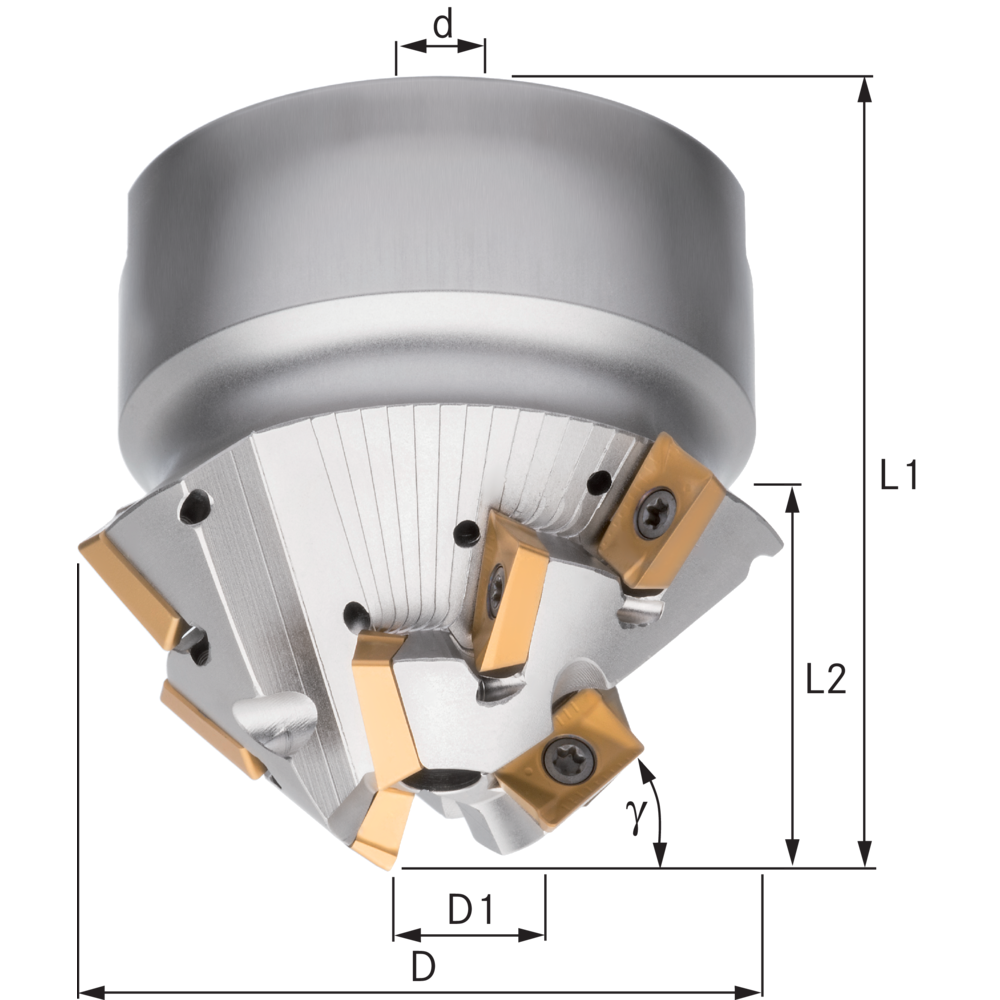

Spiral flute chamfer milling cutter 15° 17x22mm for 9 indexable inserts AP..1003

Spiral flute chamfer milling cutter 15° 17x22mm for 9 indexable inserts AP..1003
Spiral flute chamfer milling cutter 15° 17x22mm for 9 indexable inserts AP..1003 Spiral flute chamfer milling cutter 15° 17x22mm for 9 indexable inserts AP..1003
Price:
769,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Spiral flute chamfer milling cutter
  • For roughing
  • 15 °, 30 °, 40 °, 45 °, 60 °, 75 °
  • For ISO milling inserts, type AP.. 1003
  • Internal coolant supply
  • Ideal for pre-machining welded seams
  • Manufacturing and indexable insert tolerances allow crank formation
  • Supplied with clamping screws and wrench
  • Additional versions with user-defined chamfer angles are manufactured on request (minimum purchase 2 units)

Article no./ATORN no.
2625311715 / 11113004
Packaging unit
1
Catalogue page
KS-0644
Cutting values
SW-0811

Technical characteristics

ap max. 7 mm
Application Chamfering
Bore hole Ø 22 mm
Coolant supply Internal
D 17,0 mm
D max. 70 mm
Fasenlänge max. 27,5 mm
Geeignet für Wendeschneidplatten AP.. 1003..
L 50 mm
Max. chamfer height 7 mm
Max. chamfer width 27 mm
Max. tightening torque 1,0 N·m
Min. cutting edge diameter 17 mm
Number of index. inserts 9 pc.
Passende Wendeschneidplatten-Nr. 21
Schneidendurchmesser min./max. 17-70 mm
Tool holding device Location bore
Z 3 pc.
γ 15 °
