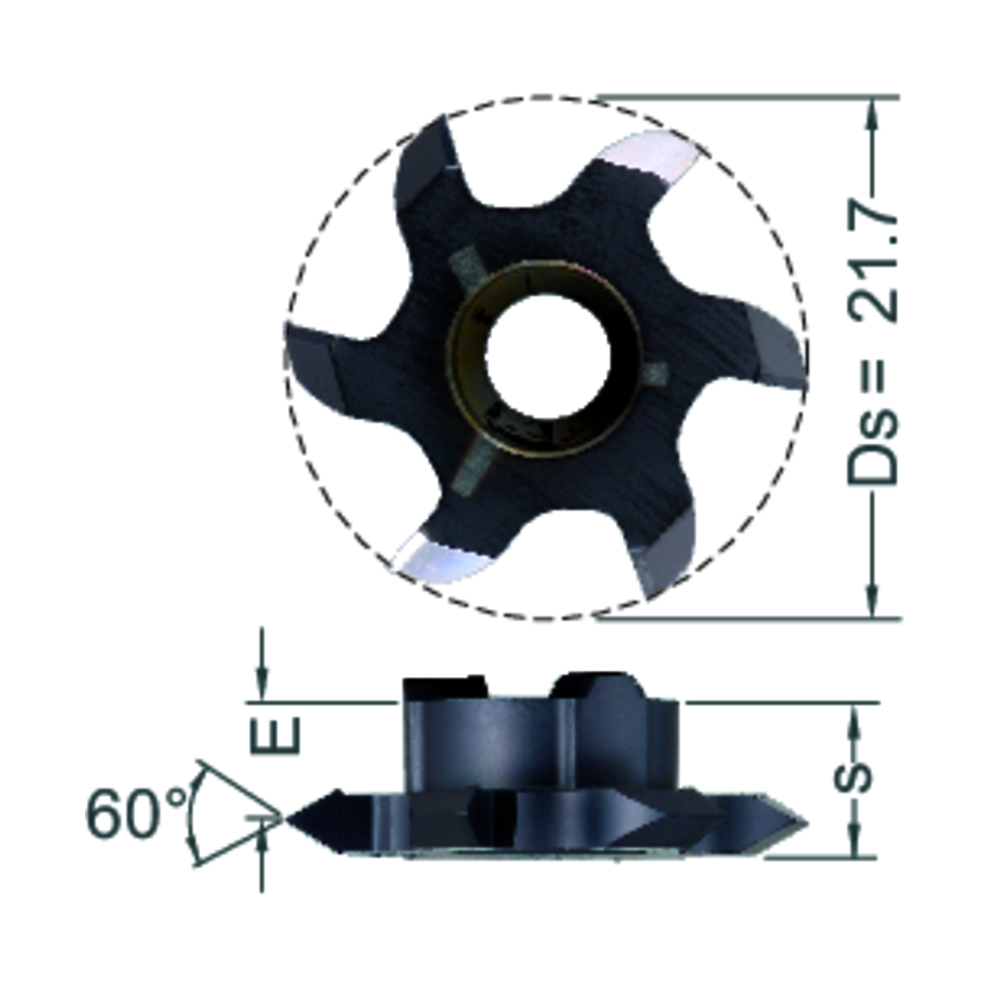

Cutting insert Z622.0720.01 metric ISO partial profile 1-2mm Z=6 HC8620

Cutting insert Z622.0720.01 metric ISO partial profile 1-2mm Z=6 HC8620
Cutting insert Z622.0720.01 metric ISO partial profile 1-2mm Z=6 HC8620
Price:
83,40 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Further tools for bore diameters 10 to 33 mm available on request

Tool system for machining drill holes MINI-MILL
  • Type ZH 22 from bore Ø 22 mm
  • Solid carbide inserts, quality grade HC 8620
  • Solid carbide milling cutter shank with internal coolant supply
  • Steel milling cutter shank with internal coolant supply
  • 3-rib toothing
  • For machining grooves, circlip grooves, ISO metric threads, Whitworth pipe threads and full radius grooves, as well as for chamfering and deburring

Cutting inserts for ISO metric threads, internal, partial profile, 6 teeth
Article no./ATORN no.
2631101020
Vendor Article no.
Z622.0720.01/AL41F
Packaging unit
1
Catalogue page
KS-0608
Cutting values
SW-0807

Technical characteristics

Design HC8620
Designation Z622.0720.01
E 5,1 mm
Pitch P 1,0 - 2,0 mm
S 6,20 mm
Thread nominal Ø > 27,0 mm

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
