Cutting insert Z622.454.63 front and rear-side b=0,2/tmax=1,9mm Z=6 HC8620

Cutting insert Z622.454.63 front and rear-side b=0,2/tmax=1,9mm Z=6 HC8620
Cutting insert Z622.454.63 front and rear-side b=0,2/tmax=1,9mm Z=6 HC8620
Price:
71,10 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Further tools for bore diameters 10 to 33 mm available on request

Tool system for machining drill holes MINI-MILL
  • Type ZH 22 from bore Ø 22 mm
  • Solid carbide inserts, quality grade HC 8620
  • Solid carbide milling cutter shank with internal coolant supply
  • Steel milling cutter shank with internal coolant supply
  • 3-rib toothing
  • For machining grooves, circlip grooves, ISO metric threads, Whitworth pipe threads and full radius grooves, as well as for chamfering and deburring

Bore milling cutter inserts, front and rear-side chamfering with 6 teeth
Article no./ATORN no.
2631090015
Vendor Article no.
Z622.4545.63/AL41F
Packaging unit
1
Catalogue page
KS-0608
Cutting values
SW-0807

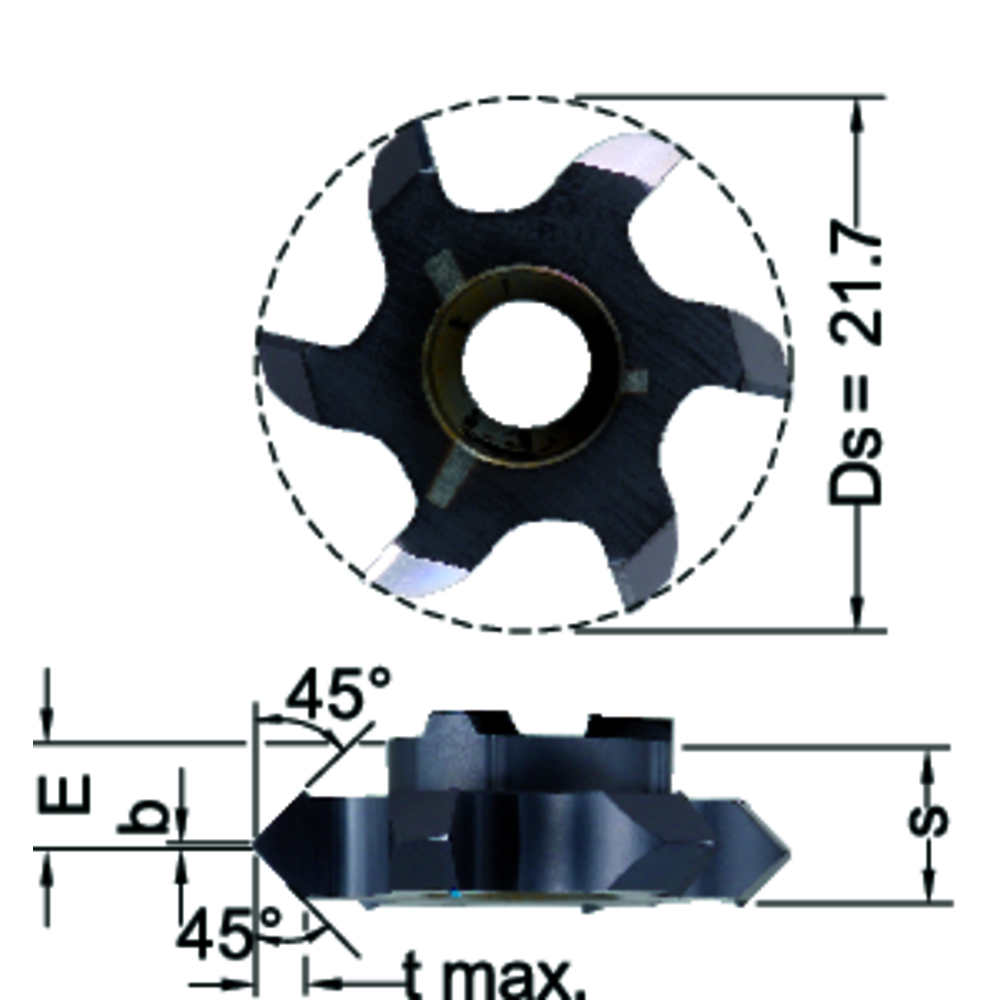

Technical characteristics

b +0.03 0,2 mm
Design HC8620
Designation Z622.4545.63
E 3,9 mm
S 6,4 mm
t max. 1,9 mm

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
