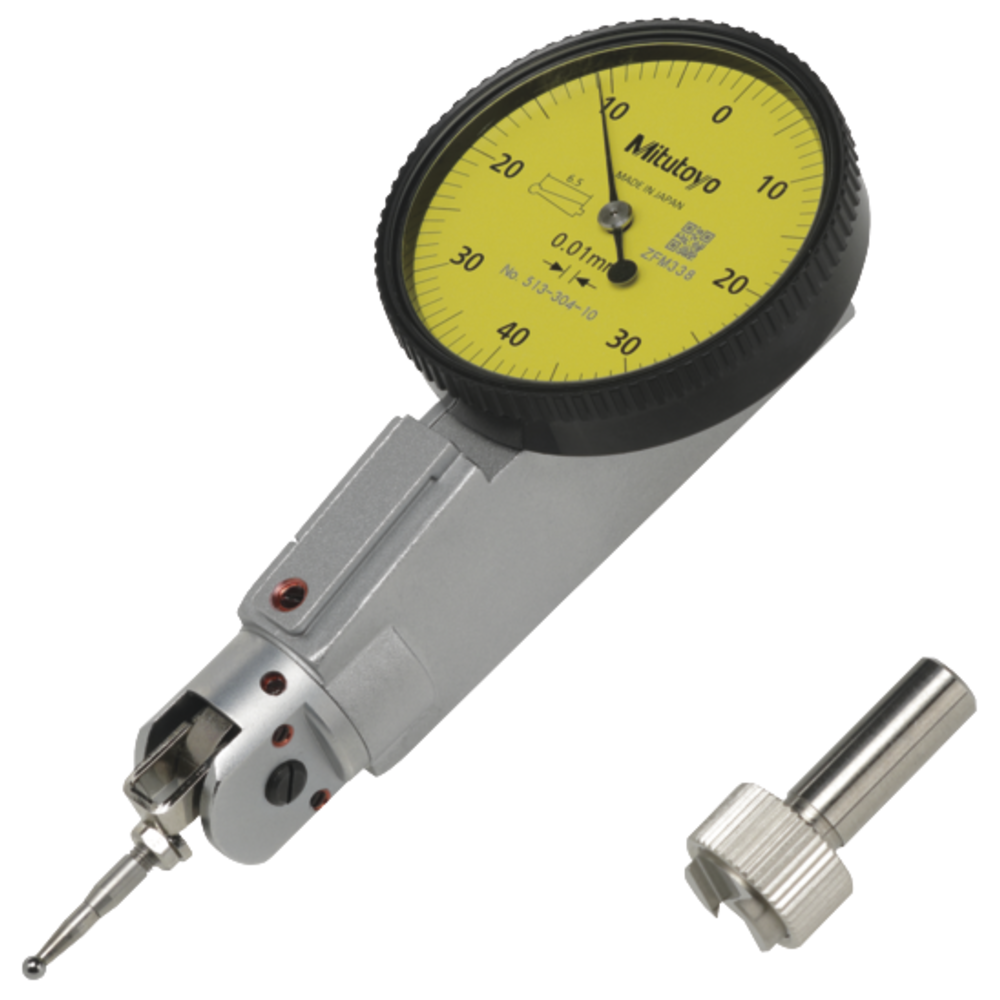

Lever dial indicator 0.8mm (0.01mm) scale 0-40-0, outer ring 40mm universal

Lever dial indicator 0.8mm (0.01mm) scale 0-40-0, outer ring 40mm universal
Lever dial indicator 0.8mm (0.01mm) scale 0-40-0, outer ring 40mm universal Lever dial indicator 0.8mm (0.01mm) scale 0-40-0, outer ring 40mm universal Lever dial indicator 0.8mm (0.01mm) scale 0-40-0, outer ring 40mm universal
Price:
462,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Universal version
  • Contact point holding fixture can be rotated through 360°

Dial test indicators
  • Rotating outer ring for zero adjustment
  • Precision jewel bearing for smooth contact point adjustment
  • Standard probe tip printed on scale
  • Dovetail attachment on three sides of the metal casing is possible by means of a Ø 8 mm clamping shank with clamping nut

Universal version
  • Contact point holding fixture can be rotated through 360°

Article no./ATORN no.
5250200009
Vendor Article no.
513-304-10E
Packaging unit
1
Catalogue page
KS-1419

Technical characteristics

Accuracy fe 8 µm
DIN 2270
Display Analogue
Error limit 0,008 mm
External ring Ø 36 mm
Included in delivery Sturdy box + Manufacturer’s test certificate
Length of measuring sensor from centre of ball 24 mm
Measurement range 0,8 mm
Measurement range 0,8 mm
Outer diameter 40 mm
Packaging / Shipment Sturdy box
Reading 0,01 mm
Scale 0-40-0
Sensor tip length 24,1 mm
Standard constructional dimensions DIN DIN 2270
